Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | KTP600 Basic color DP |
| Display | TFT, 256 colors |
| Image resolution | 320 pixel × 240 pixel |
| Operation | 6 function keys and analog-resistive touch screen |
| Interfaces | 1 RS 485; 1 RS 422 |
| Protocols | MPI; PROFIBUS; MODBUS RTU |
| Supply | 24 V DC; 19.2 V DC to 28.8 V DC permissible range |
| Power consumption | 9 W active power input, typ. |
| Mounting | Vertical; portrait or landscape possible |
| Protection | IP65 front; IP20 rear |
| Installation angle | 35° maximum permissible angle without external ventilation |
Key Features
- Display: TFT display with 256 colors and 320 pixel × 240 pixel resolution.
- Key and touch operation: 6 function keys and an analog-resistive touch screen; numeric and alphanumeric onscreen keyboards are available.

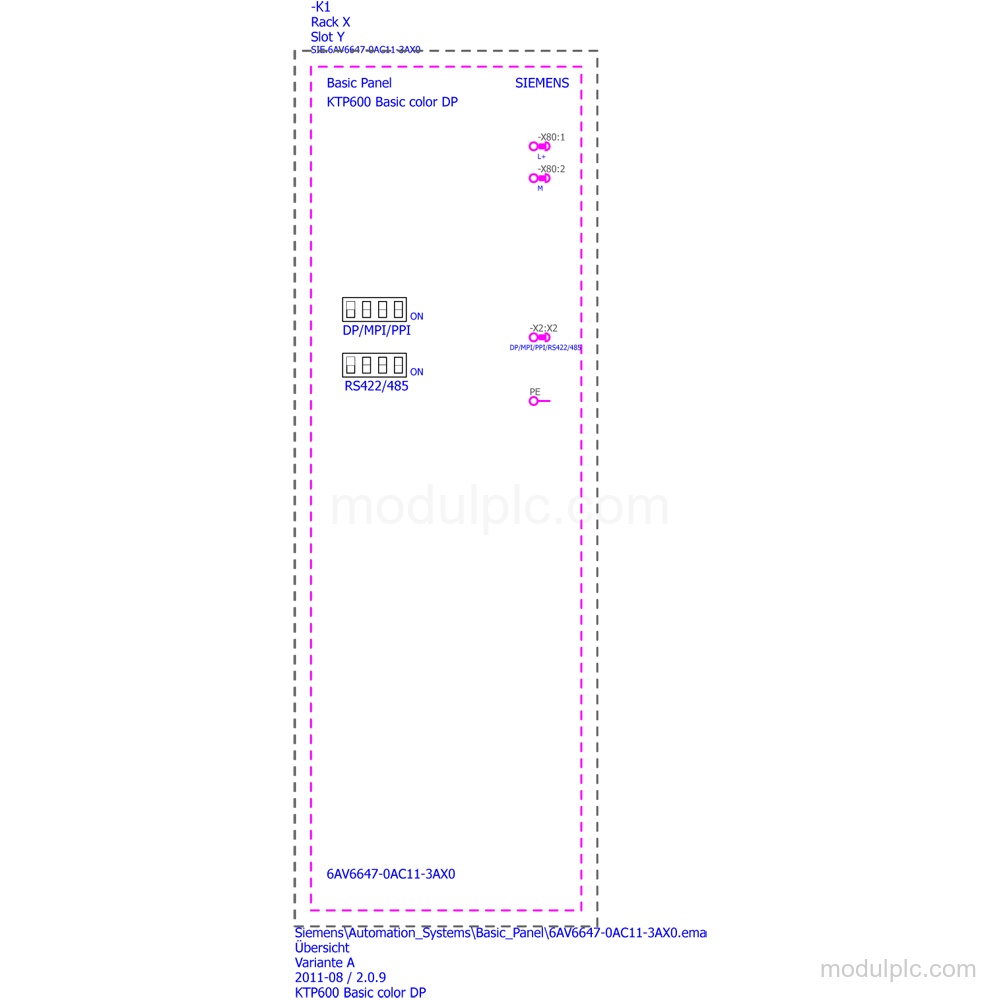

- MPI/PROFIBUS DP interface: Supports MPI and PROFIBUS; the panel has 1 RS 485 interface and 1 RS 422 interface.
- Power supply: 24 V DC rated supply, with a permissible range of 19.2 V DC to 28.8 V DC.
- Mounting: Vertical mounting; portrait and landscape mounting are possible. The maximum permissible angle of inclination without external ventilation is 35°.
- Front protection: IP65 at the front and IP20 at the rear; Enclosure Type 4 and Enclosure Type 4x at the front.
Frequently Asked Questions
1. What display and operation does the 6AV6647-0AC11-3AX0 have?
It has a 256-color TFT display with 320 pixel × 240 pixel resolution, 6 function keys, and an analog-resistive touch screen.
2. Which interfaces and protocols are supported?
The panel has 1 RS 485 interface and 1 RS 422 interface and supports MPI, PROFIBUS, and MODBUS RTU.
3. What supply voltage is required?
The rated supply is 24 V DC, with a permissible range of 19.2 V DC to 28.8 V DC.
4. How can this panel be mounted?
It is mounted vertically; portrait and landscape mounting are possible. The maximum permissible angle of inclination without external ventilation is 35°.
5. What protection ratings are provided?
The front has IP65 protection and the rear has IP20 protection. The front also has Enclosure Type 4 and Enclosure Type 4x.
