Product Overview
Technical Summary

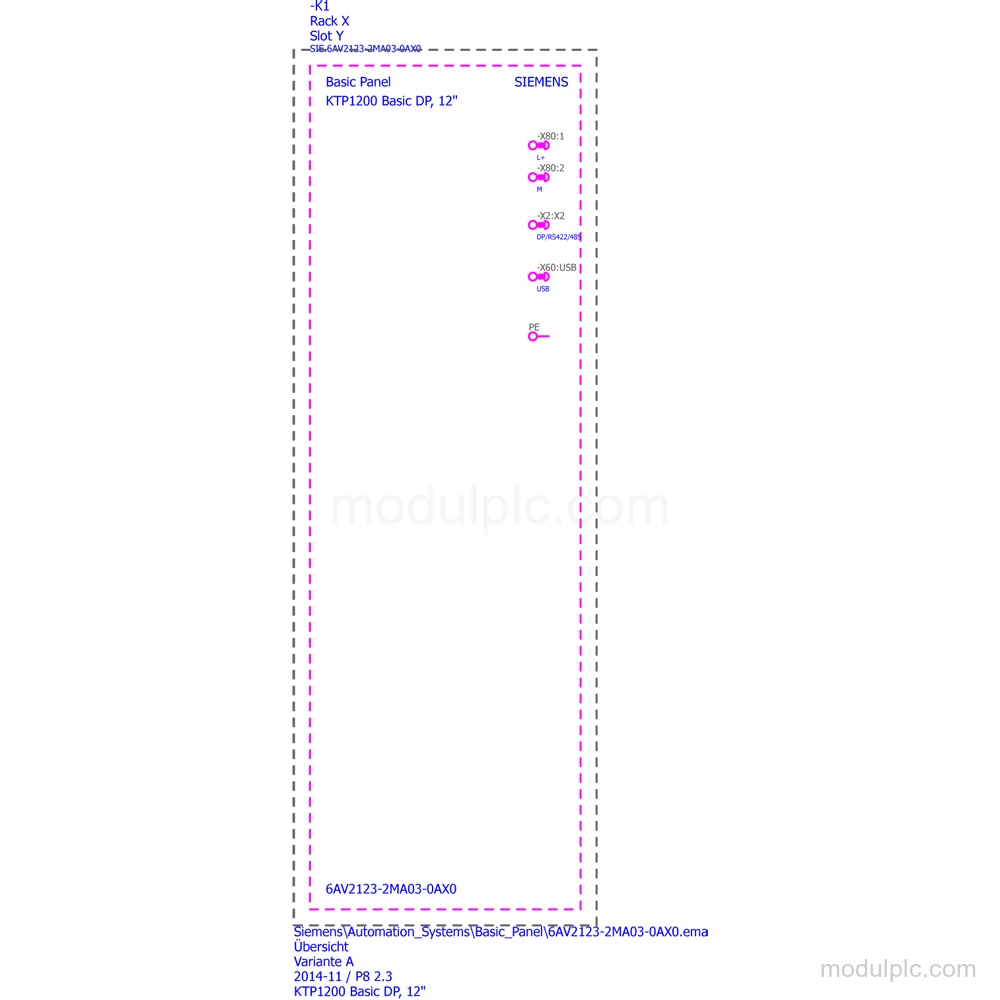

| Parameter | Value |
|---|---|
| Product type | KTP1200 Basic color DP |
| Display | 12 in TFT widescreen display, LED backlighting |
| Touch screen | Analog-resistive |
| Resolution | 1 280 pixel × 800 pixel |
| Function keys | 10 |
| Communication interfaces | 1 RS 485; 1 RS 422 together with RS 485; 1 USB up to 16 GB |
| Supported protocols | PROFIBUS; MPI; Modicon (MODBUS RTU) |
| Supply voltage | 24 V DC, permissible range from 19.2 V to 28.8 V |
| Current consumption | 550 mA |
| Active power input | 13.2 W typical |
| Protection | IP65 at the front; IP20 at the rear |
Key Features
- Display and operation: 12 in TFT widescreen display with LED backlighting, 65 536 colors, 1 280 pixel × 800 pixel resolution, key/touch operation and analog-resistive touch screen.
- Function keys and keyboards: 10 function keys, numeric onscreen keyboard and alphanumeric onscreen keyboard.
- Communication interfaces: 1 RS 485 interface, 1 RS 422 interface together with RS 485, 1 USB interface up to 16 GB, and no industrial Ethernet interface.
- Supported protocols: PROFIBUS and MPI are supported. MODBUS is supported as Modicon (MODBUS RTU); PROFINET and EtherNet/IP are not supported.
- Supply and power: DC supply with a rated value of 24 V, permissible range from 19.2 V to 28.8 V, rated current consumption of 550 mA and typical active power input of 13.2 W.

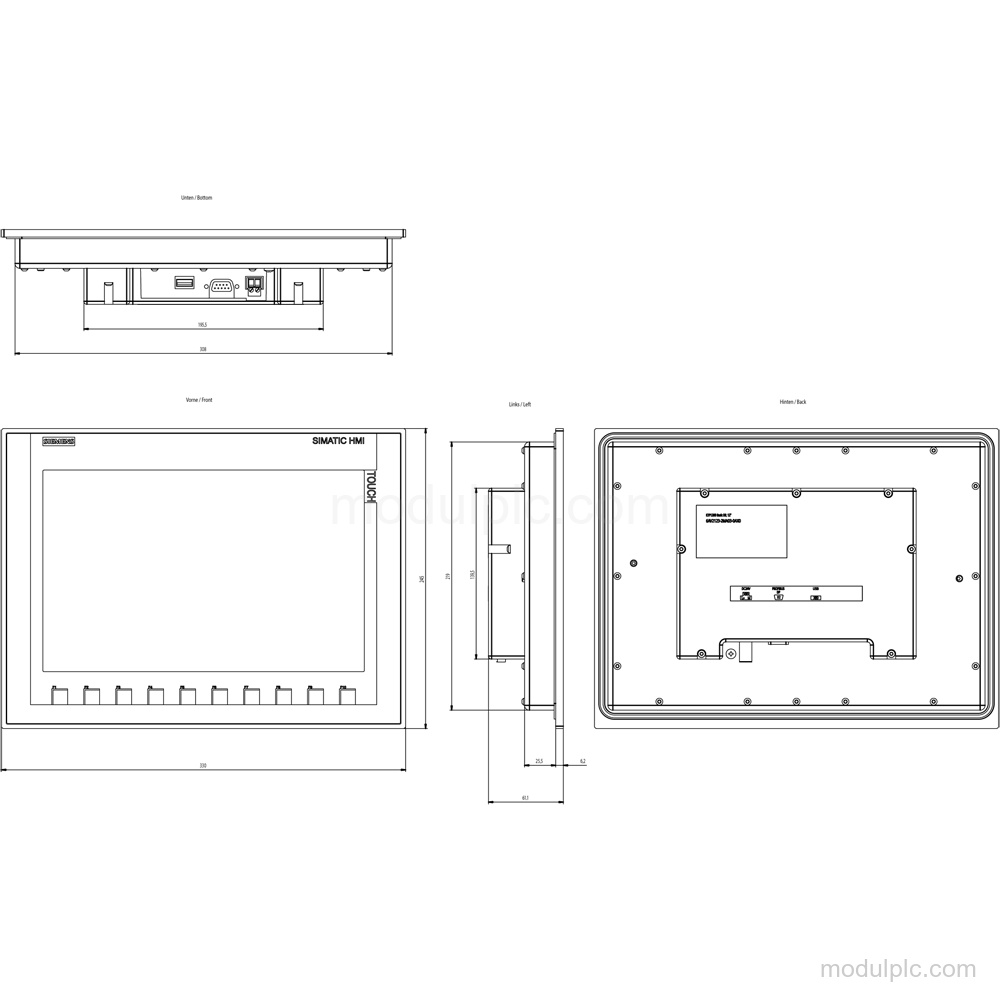

- Mounting and protection: Vertical mounting with portrait or landscape format possible; maximum permissible angle of inclination without external ventilation is 35°. Protection is IP65 at the front and IP20 at the rear.
Frequently Asked Questions
1. What display and operation does the 6AV2123-2MA03-0AX0 have?
It has a 12 in TFT widescreen display with LED backlighting, 65 536 colors, 1 280 pixel × 800 pixel resolution, 10 function keys and analog-resistive touch operation.
2. Which interfaces and protocols are supported?
It has 1 RS 485 interface, 1 RS 422 interface together with RS 485, and 1 USB interface up to 16 GB. PROFIBUS, MPI and Modicon (MODBUS RTU) are supported.
3. What supply voltage does this panel require?
The supply is DC with a rated value of 24 V and a permissible range from 19.2 V to 28.8 V.
4. Can the panel be mounted in portrait or landscape format?
Yes. Portrait and landscape mounting are possible. The maximum permissible angle of inclination without external ventilation is 35°.
5. What protection ratings apply to the panel?
The protection rating is IP65 at the front and IP20 at the rear.
