Product Overview
Technical Summary
| Parameter | Value |
|---|---|

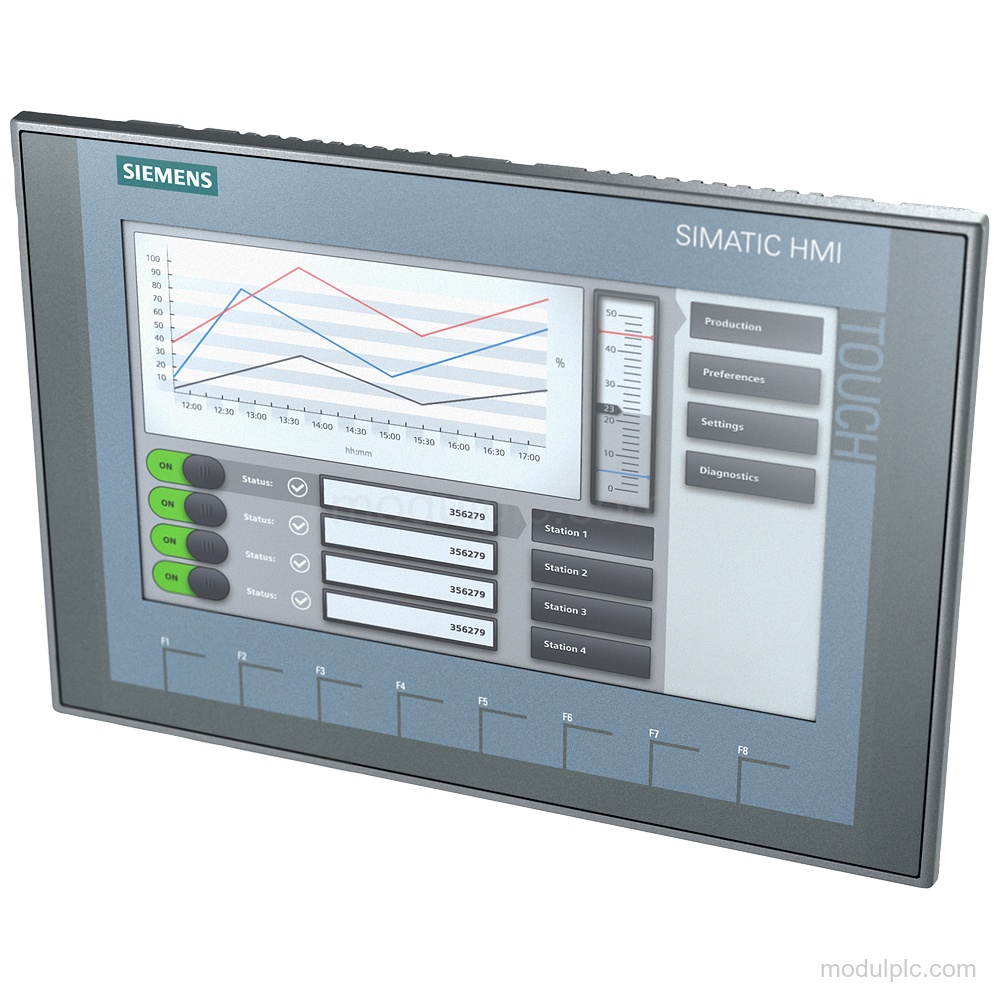

| Product type designation | KTP900 Basic color PN |
| Display | 9 in TFT widescreen display, LED backlighting |
| Touch operation | Yes; Analog-resistive |
| Function keys | 8 |
| Industrial Ethernet interfaces | 1 |
| USB interfaces | 1; Up to 16 GB |
| Supported protocols | PROFINET; EtherNet/IP; TCP/IP; DHCP; DCP; LLDP; MODBUS TCP/IP |
| Rated supply | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V |
| Mounting | Vertical; portrait and landscape possible |
| Front/rear protection | IP65 / IP20 |
Key Features
- Display: 9 in TFT widescreen display with LED backlighting, 65 536 colors, and 800 x 480 pixel resolution.
- Key/touch operation: 8 function keys and analog-resistive touch operation with numeric and alphanumeric onscreen keyboards.

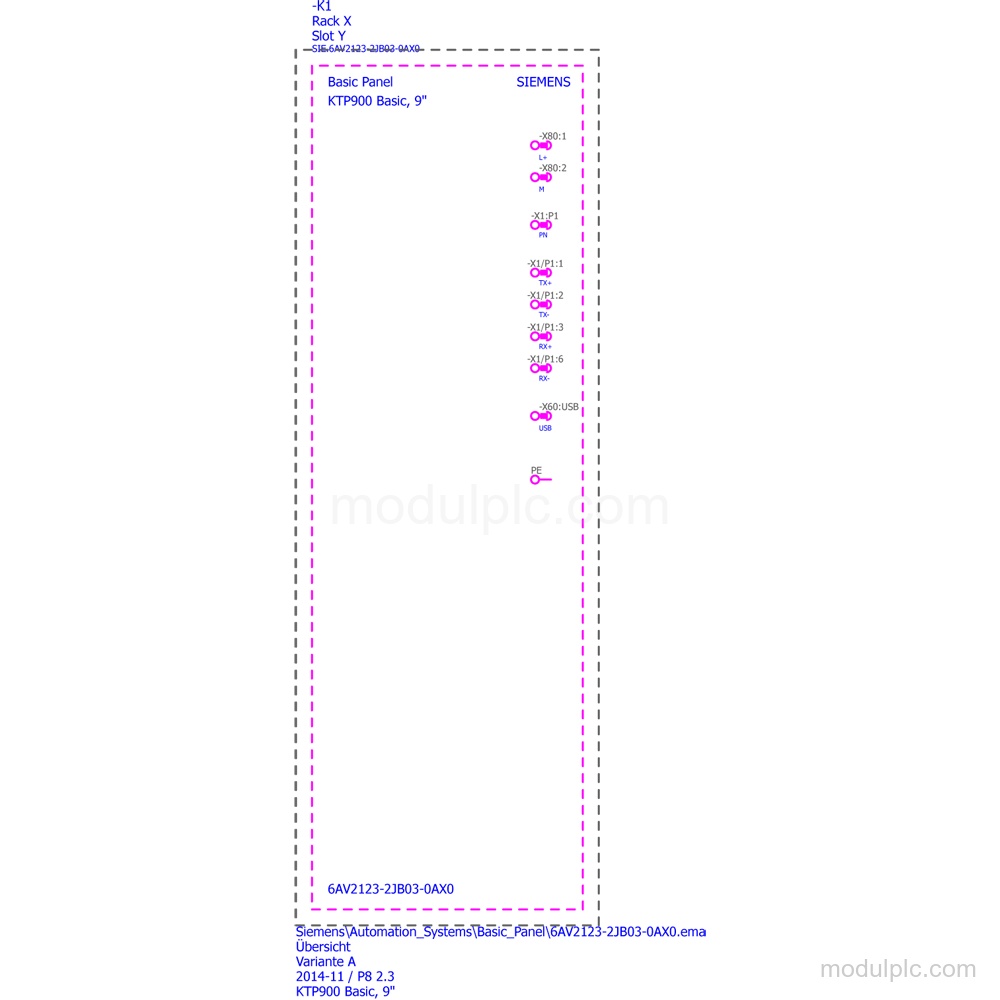

- Interfaces and protocols: 1 industrial Ethernet interface and 1 USB interface; supports PROFINET, EtherNet/IP, TCP/IP, DHCP, DCP, LLDP, and MODBUS TCP/IP.
- Supply and power: 24 V DC rated supply, permissible range 19.2 V to 28.8 V, 230 mA rated current consumption, and 5.5 W typical active power input.

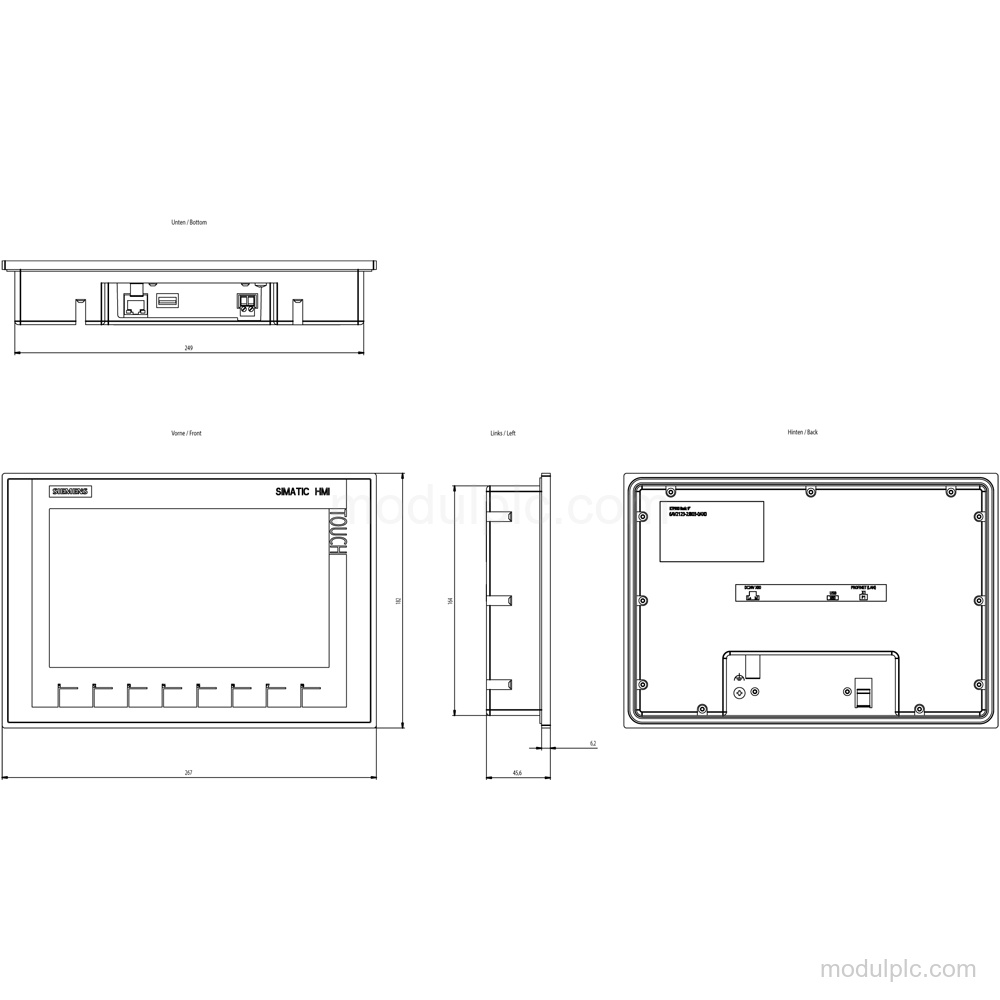

- Installation: Vertical mounting; portrait and landscape mounting are possible. Maximum permissible angle of inclination without external ventilation: 35°.
- Protection: IP65 at the front and IP20 at the rear; Enclosure Type 4 and Enclosure Type 4x at the front.
Frequently Asked Questions
1. What display does the Siemens 6AV2123-2JB03-0AX0 have?
It has a 9 in TFT widescreen display with LED backlighting, 65 536 colors, and 800 x 480 pixel resolution.
2. Which network interfaces and protocols are supported?
It has 1 industrial Ethernet interface and supports PROFINET, EtherNet/IP, TCP/IP, DHCP, DCP, LLDP, and MODBUS TCP/IP.
3. What is the supply requirement?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
4. How is the panel mounted and protected?
Mounting is vertical, with portrait and landscape mounting possible. The maximum permissible angle of inclination without external ventilation is 35°. Protection is IP65 at the front and IP20 at the rear.
