Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | KTP400 Basic |
| Display | TFT widescreen display, LED backlighting |
| Touch operation | Yes; Analog-resistive |
| Function keys | 4 |
| Display resolution | 480 pixel × 272 pixel |
| Industrial Ethernet interfaces | 1 |
| Supported protocols | PROFINET, EtherNet/IP, TCP/IP, DHCP, DCP, LLDP, MODBUS TCP/IP |
| USB interfaces | 1; Up to 16 GB |
| Supply voltage | 24 V DC; 19.2 V to 28.8 V |
| Rated current consumption | 125 mA |
| Protection | IP65 at the front; IP20 at the rear |
Key Features
- Display and operation: TFT widescreen display with LED backlighting, 65 536 colors, 480 pixel × 272 pixel resolution, 4 function keys, and analog-resistive touch operation.
- PROFINET interface: 1 industrial Ethernet interface with PROFINET, TCP/IP, DHCP, DCP, and LLDP support.
- Additional Ethernet protocols: EtherNet/IP and MODBUS TCP/IP are supported; PROFINET IO, IRT, PROFIBUS, MPI, and MRP are not supported.
- Supply and consumption: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V, 125 mA rated current consumption, and 3 W typical active power input.
- USB connection: 1 USB interface, supporting storage media up to 16 GB.

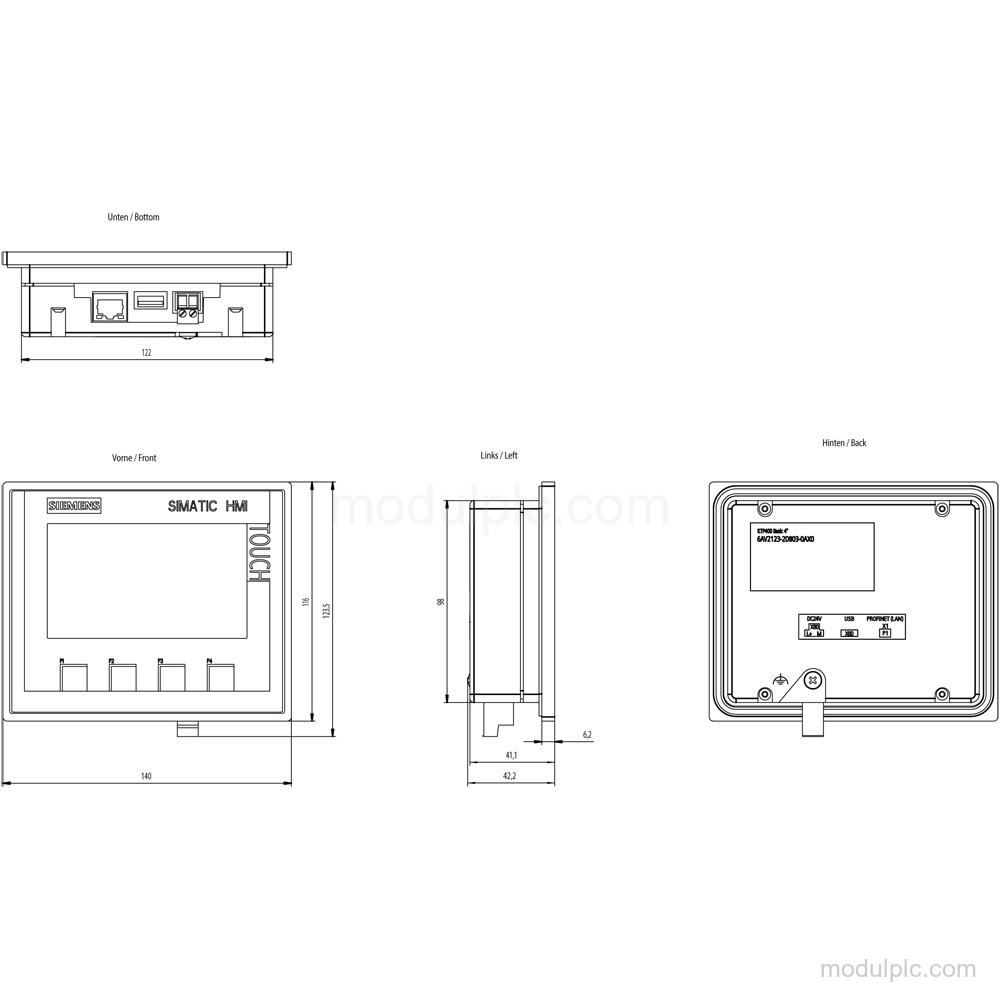

- Installation and protection: Vertical mounting; portrait and landscape mounting are possible. Protection is IP65 at the front and IP20 at the rear.
Frequently Asked Questions
1. What display and input features does the 6AV2123-2DB03-0AX0 have?
It has a TFT widescreen display with 65 536 colors and 480 pixel × 272 pixel resolution, plus 4 function keys and analog-resistive touch operation.
2. Which network protocols are supported?
The panel supports PROFINET, EtherNet/IP, TCP/IP, DHCP, DCP, LLDP, and MODBUS TCP/IP. It does not support PROFINET IO, IRT, PROFIBUS, MPI, or MRP.
3. What supply voltage does this HMI panel require?
Supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. Rated current consumption is 125 mA.

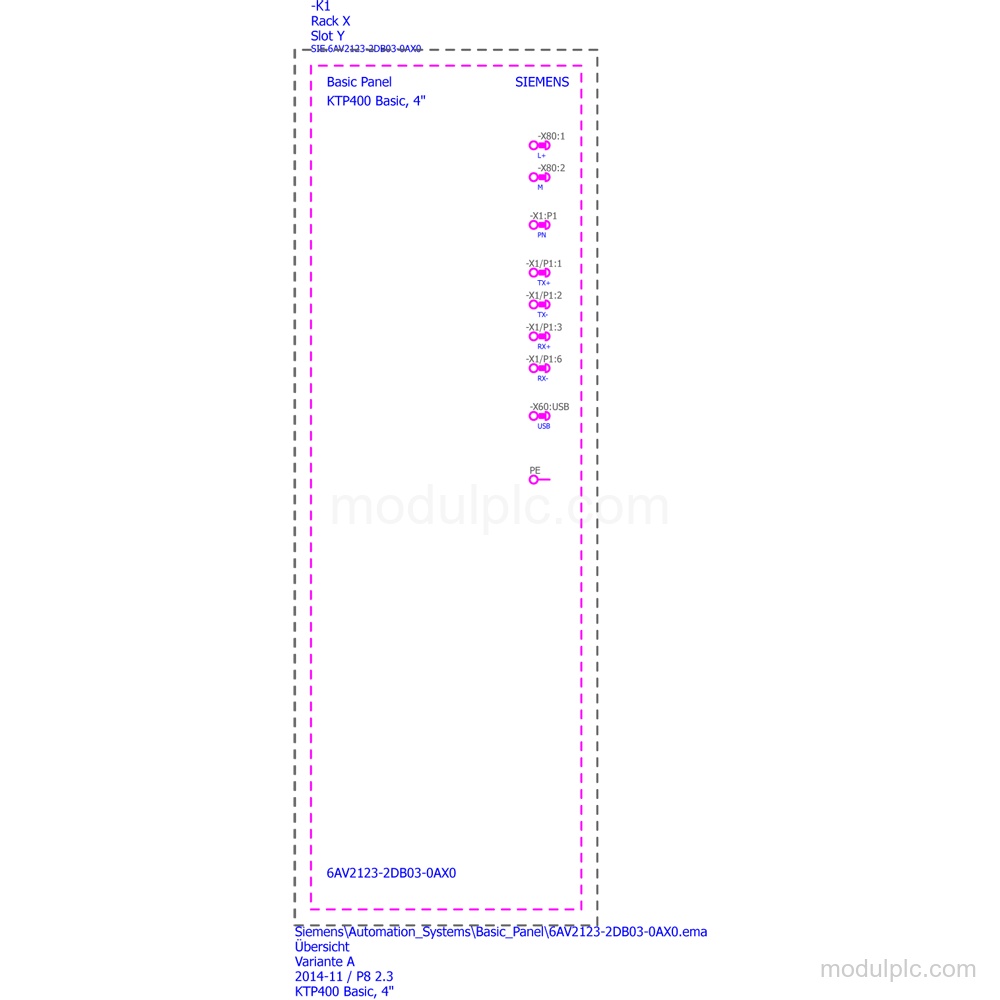

4. Which interfaces are available?
It has 1 industrial Ethernet interface and 1 USB interface supporting storage media up to 16 GB.
5. How is the panel mounted and protected?
Mounting is vertical, with portrait and landscape mounting possible. Protection is IP65 at the front and IP20 at the rear.
