Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Memory type | Flash-EPROM |
| Memory size | 2 Gbyte |
| Write/delete operations, min. | 100 000 |
| Data retention, min. | 10 a after the final programming action |
Key Features
- Memory type and size: Flash-EPROM with 2 Gbyte memory size.
- Write/delete operations: 100 000 minimum write/delete operations.
- Data retention: 10 a minimum after the final programming action; 1 a if the delete/write processes exceed 90 000.

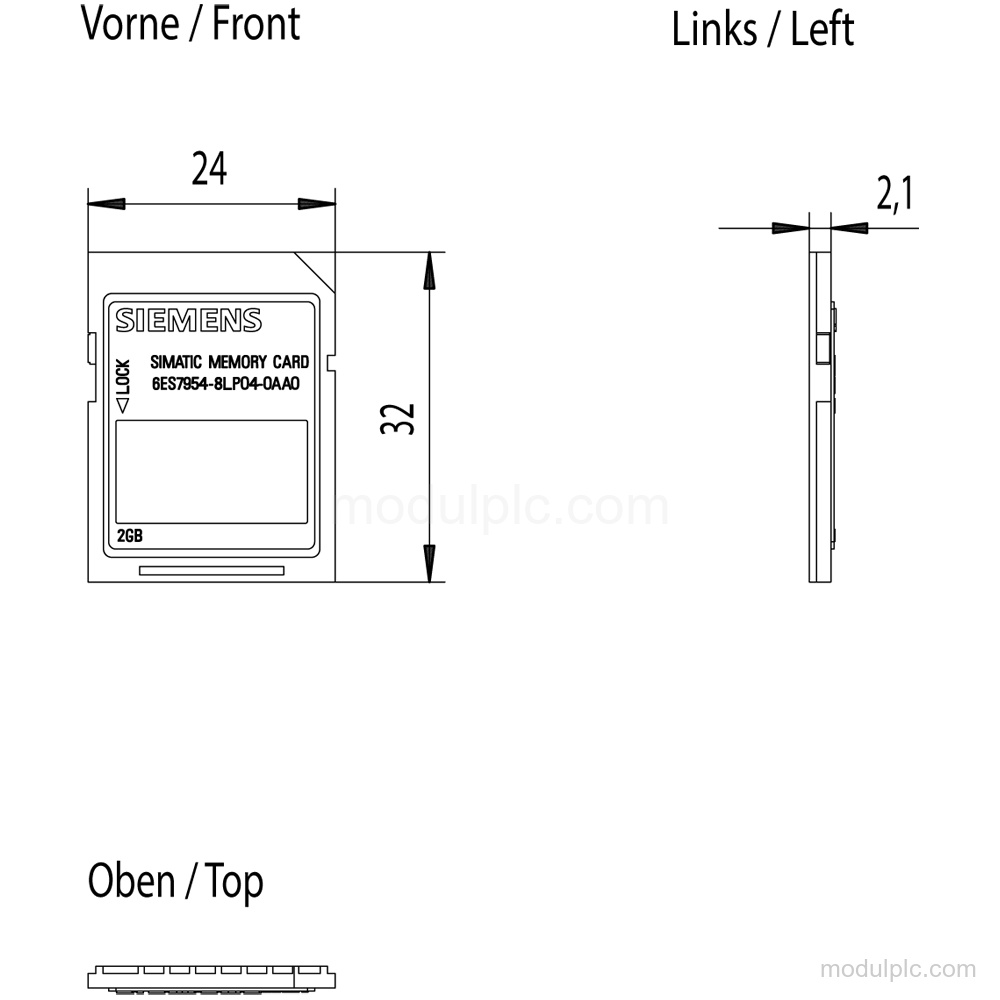

- Dimensions: 24 mm width, 32 mm height, and 2.1 mm depth.
- Weight: Approx. 3 g.
- Product lifecycle: Active Product.
Frequently Asked Questions
1. What type of memory does the Siemens 6ES7954-8LP04-0AA0 use?
It uses Flash-EPROM memory.
2. What memory capacity does this SIMATIC S7 memory card have?
It has a 2 Gbyte memory size.
3. How many write/delete operations are supported?
The minimum number is 100 000 write/delete operations.
4. What are the card dimensions and approximate weight?
The card is 24 mm wide, 32 mm high, and 2.1 mm deep, with an approximate weight of 3 g.
