Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Memory type | Flash-EPROM |
| Memory size | 256 Mbyte |
| Minimum write/delete operations | 200 000 |
| Data retention after final programming action | 10 a; 1 a if delete/write processes > 180 000 |
Key Features
- Memory type: Flash-EPROM memory for S7-1×00 CPU memory cards.
- Memory size: 256 Mbyte.
- Write/delete operations: Minimum 200 000 write/delete operations.
- Data retention: Minimum 10 a after the final programming action; 1 a if delete/write processes exceed 180 000.

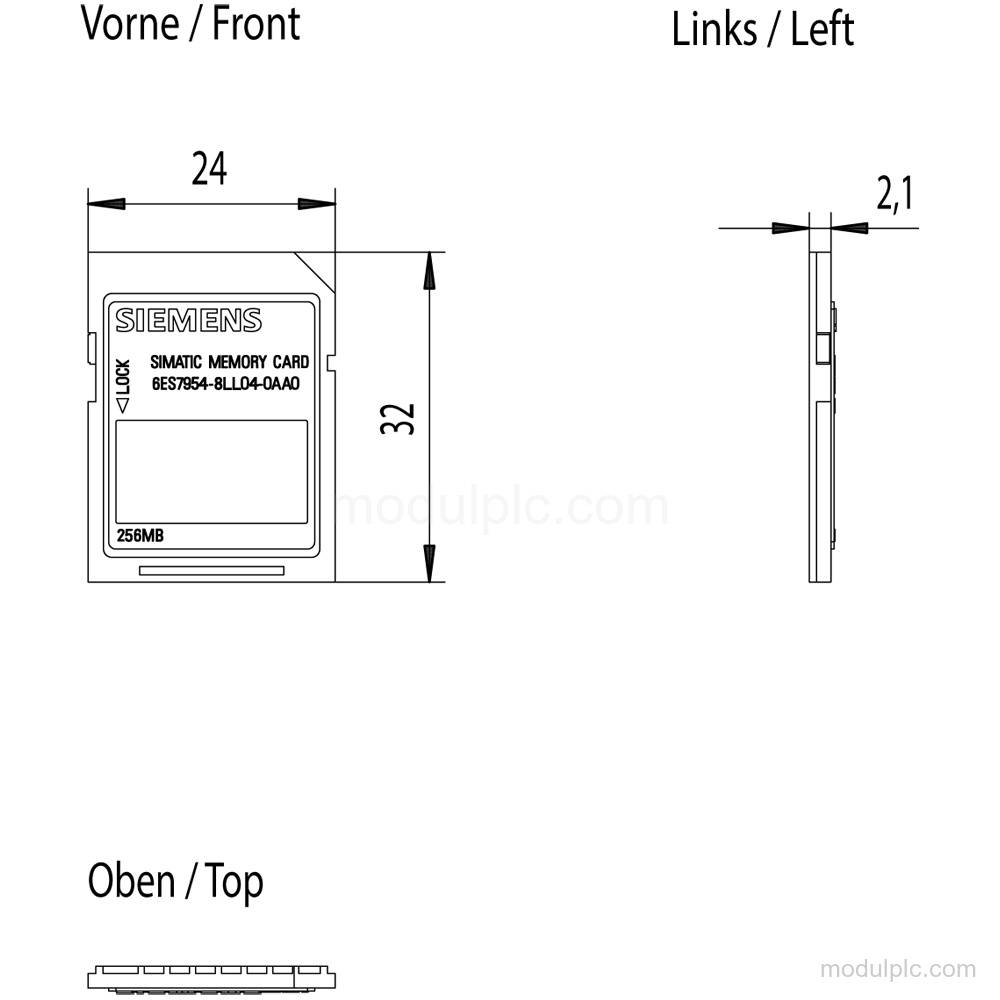

- Dimensions: 24 mm width, 32 mm height, and 2.1 mm depth.
- Weight: Approximately 3 g.
Frequently Asked Questions
1. What is the memory type of the 6ES7954-8LL04-0AA0?
It has Flash-EPROM memory.
2. What memory size does the 6ES7954-8LL04-0AA0 provide?
The memory size is 256 Mbyte.
3. How many write/delete operations are supported?
It supports a minimum of 200 000 write/delete operations.
4. What are the dimensions and weight?
The card measures 24 mm x 32 mm x 2.1 mm and weighs approximately 3 g.
