Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Memory type | Flash-EPROM |
| Memory size | 24 Mbyte |
| System context | S7-1×00 CPU/SINAMICS |
| Write/delete operations, min. | 500 000 |
| Data retention, min. | 10 a after final programming action; 1 a if delete/write processes exceed 450 000 |
| Product lifecycle | Active Product |
Key Features
- Memory type and capacity: Flash-EPROM with a memory size of 24 Mbyte.
- System context: Memory card for S7-1×00 CPU/SINAMICS.
- Write/delete endurance: Minimum 500 000 write/delete operations.
- Data retention: Minimum 10 a after the final programming action; 1 a if the delete/write processes exceed 450 000.

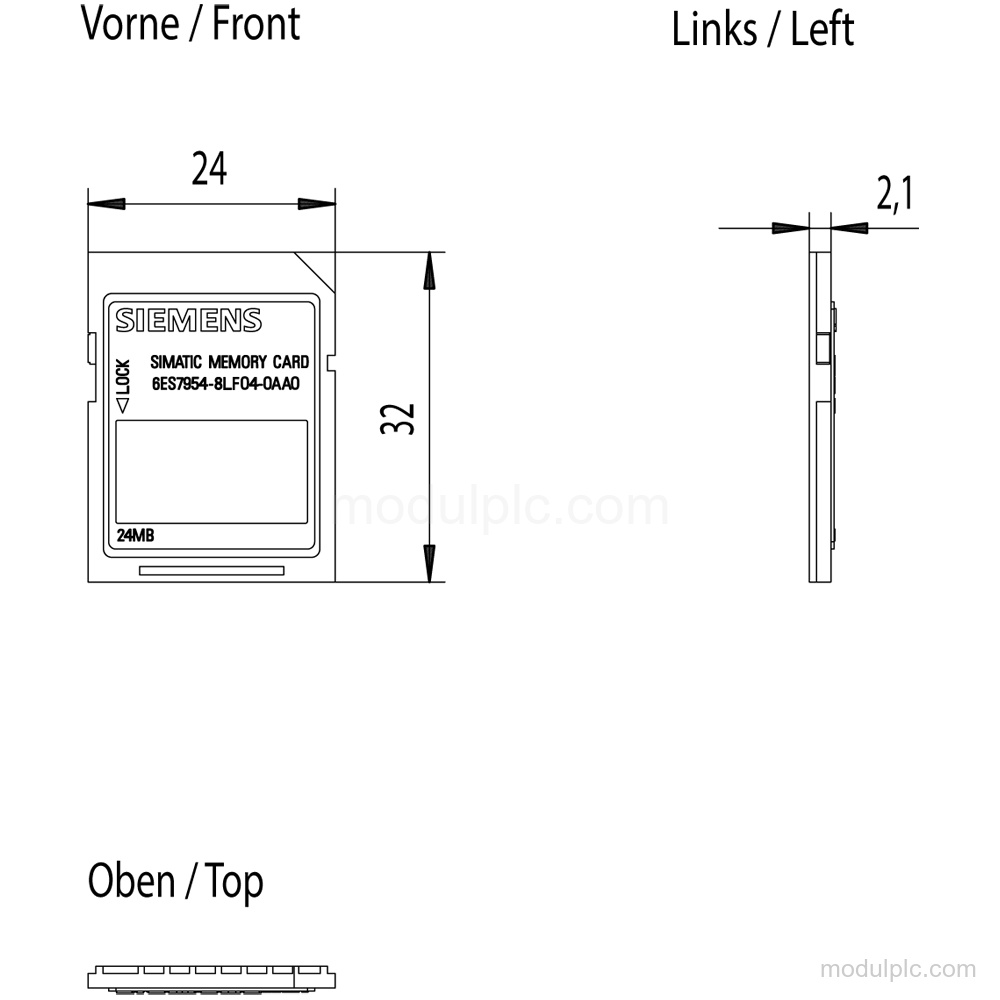

- Dimensions: 24 mm wide, 32 mm high, and 2.1 mm deep.
- Weight: Approximate weight: 3 g.
Frequently Asked Questions
1. What type of memory does the 6ES7954-8LF04-0AA0 use?
It uses Flash-EPROM storage.
2. What is the memory size of the 6ES7954-8LF04-0AA0?
The memory size is 24 Mbyte.
3. How many write/delete operations are supported?
The minimum number is 500 000 write/delete operations.
4. What are the dimensions of this memory card?
The card is 24 mm wide, 32 mm high, and 2.1 mm deep.
