Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Memory type | Flash-EPROM |
| Memory size | 12 Mbyte |
| Write/delete operations, min. | 500 000 |
| Data retention, min. | 10 a after final programming action |
Key Features
- Flash-EPROM storage: Type of memory: Flash-EPROM.
- 12 Mbyte memory capacity: Memory size: 12 Mbyte.
- Write/delete endurance: Number of write/delete operations, min.: 500 000.
- Data retention: Data retention after the final programming action, min.: 10 a; 1 a if the delete/write processes exceed 450 000.

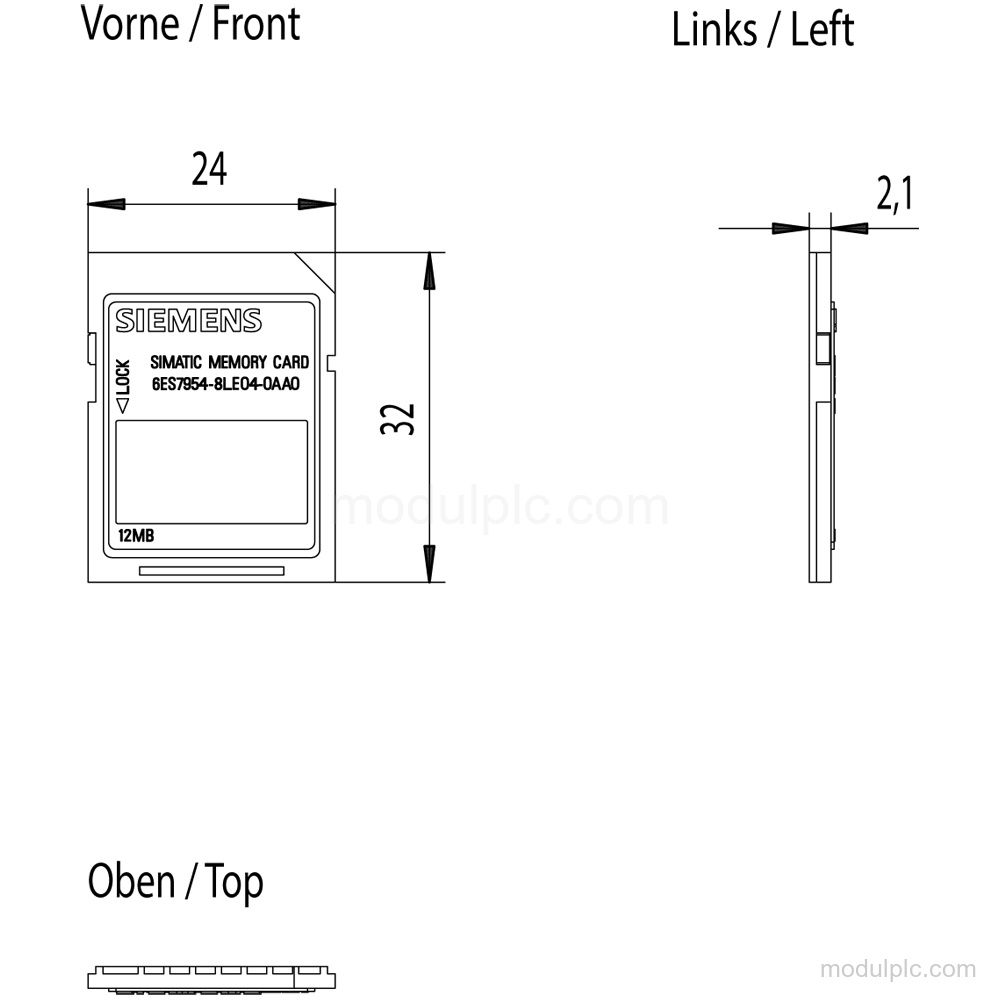

- Compact dimensions: Dimensions: 24 mm width, 32 mm height, and 2.1 mm depth.
- Low weight: Weight, approx.: 3 g.
Frequently Asked Questions
1. What type of memory does the Siemens 6ES7954-8LE04-0AA0 use?
It uses Flash-EPROM memory.
2. What is the memory size and minimum write/delete endurance?
The memory size is 12 Mbyte, with a minimum of 500 000 write/delete operations.
3. What are the dimensions and approximate weight?
The dimensions are 24 mm width, 32 mm height, and 2.1 mm depth; weight is approximately 3 g.
