Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Memory type | Flash-EPROM |
| Memory size | 4 Mbyte |
| Write/delete operations, min. | 500 000 |
| Data retention, min. | 10 a after the final programming action; 1 a if the delete/write processes < 50 000 (1 a if the delete/write processes > 450 000) |
Key Features
- Memory type and size: Flash-EPROM with 4 Mbyte memory size.
- Write/delete endurance: Minimum 500 000 write/delete operations.
- Data retention: Minimum 10 a after the final programming action; 1 a if the delete/write processes exceed 450 000.

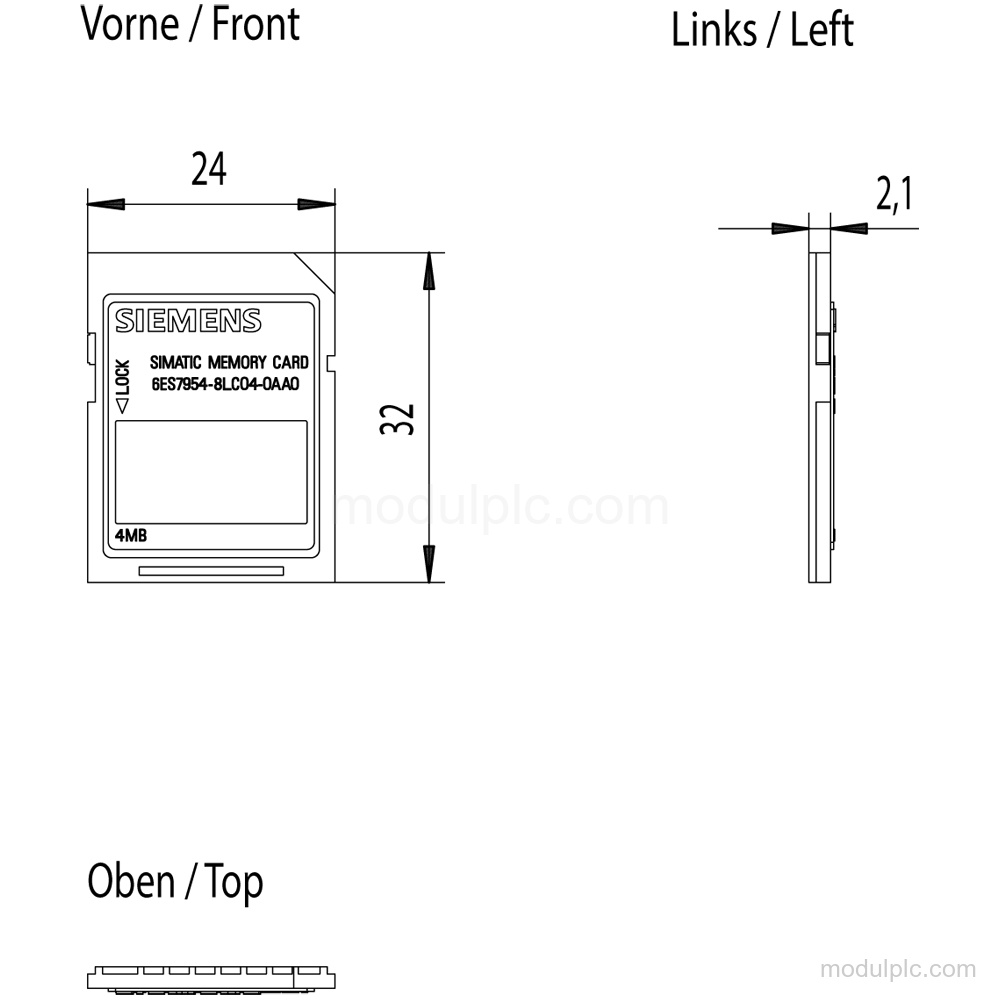

- Product dimensions: Width: 24 mm; height: 32 mm; depth: 2.1 mm.
- Weight: Approximate weight: 3 g.
- Product lifecycle: Active Product.
Frequently Asked Questions
1. What type of memory does the Siemens 6ES7954-8LC04-0AA0 use?
It uses Flash-EPROM memory.
2. What is the memory size of the 6ES7954-8LC04-0AA0?
The memory size is 4 Mbyte.
3. How many write/delete operations are supported?
The minimum number is 500 000 write/delete operations.
4. What are the dimensions and weight?
The dimensions are 24 mm wide, 32 mm high, and 2.1 mm deep. Approximate weight is 3 g.
