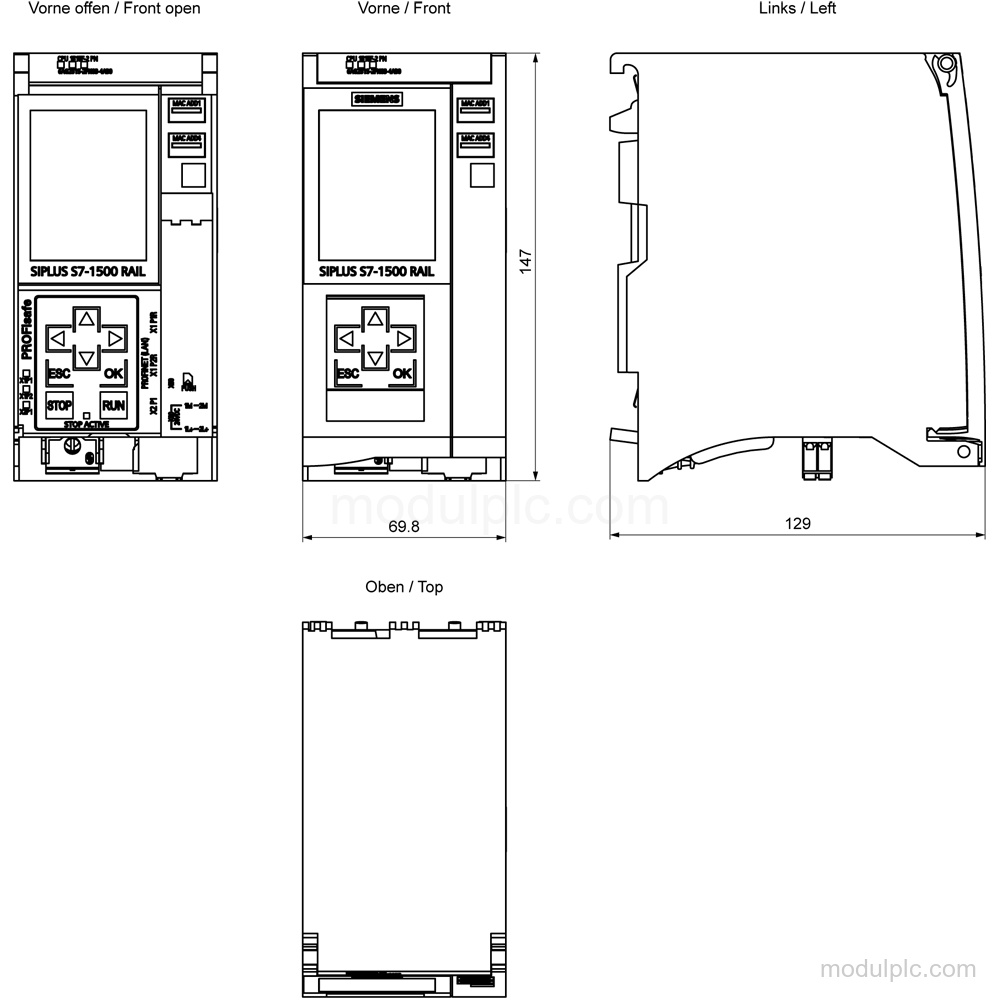

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | SIPLUS S7-1500 CPU 1515F-2 PN RAIL |
| PROFINET interfaces | 2 |
| PROFIBUS interfaces | 1 |
| Supply voltage | 24 V DC; 19.2 V to 28.8 V DC permissible range |

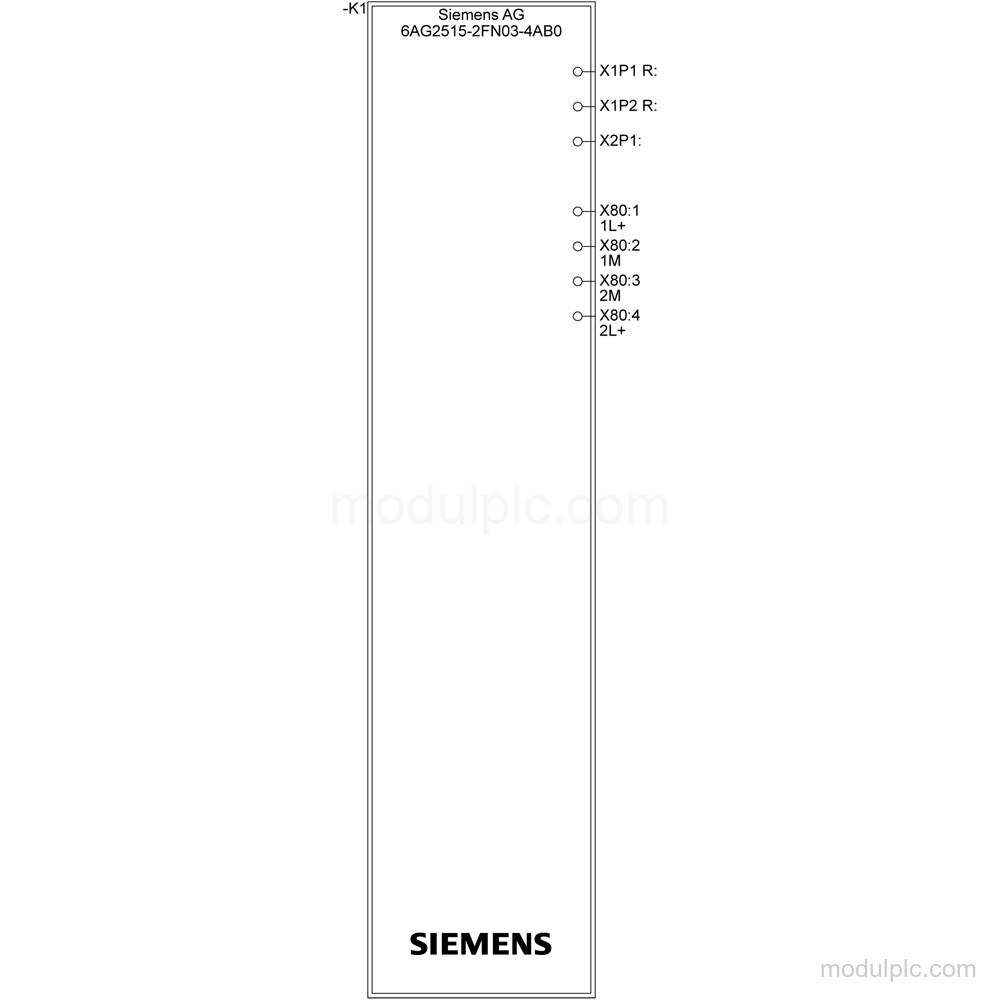

| PROFINET ports | 2 RJ 45 ports on X1; 1 RJ 45 port on X2 |
| PROFIBUS transmission rate | 12 Mbit/s maximum |
| SIMATIC Memory Card | Required; 1 slot; 32 Gbyte maximum plug-in load memory |
| Operating temperature, horizontal installation | -40 °C to 70 °C; +85 °C for 10 min under OT4, ST1/ST2 conditions |
Key Features
- Network interfaces: 2 PROFINET interfaces and 1 PROFIBUS interface are available. The first PROFINET interface has 2 RJ 45 ports and an integrated switch; the second has 1 RJ 45 port.
- Communication protocols: Supports PROFINET IO Controller, PROFINET IO Device, PROFIBUS DP master, SIMATIC communication, Open IE communication, OPC UA, MODBUS TCP, and PROFINET Security Class 1.
- Supply and protection: Rated supply voltage is 24 V DC with a permissible range of 19.2 V to 28.8 V DC and reverse polarity protection.
- Processing and storage: Bit operations have a typical processing time of 6 ns. A SIMATIC Memory Card is required, with 1 slot and plug-in load memory up to 32 Gbyte.
- Rail and environmental design: The CPU has conformal coating and supports horizontal operation from -40 °C to 70 °C, with +85 °C for 10 min under OT4, ST1/ST2 conditions. Vertical operation is -40 °C to 40 °C.
- Diagnostics and protection functions: The CPU provides a diagnostic buffer with up to 3 200 entries, RUN/STOP, ERROR, MAINT, and STOP ACTIVE LEDs, and protection levels including write, read/write, and complete protection.
Frequently Asked Questions
1. How many network interfaces does the Siemens 6AG2515-2FN03-4AB0 have?
It has 2 PROFINET interfaces and 1 PROFIBUS interface.
2. What are the RJ 45 port configurations?
X1 has 2 RJ 45 ports with an integrated switch. X2 has 1 RJ 45 port without an integrated switch.
3. What supply voltage does this CPU require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
4. Is a SIMATIC Memory Card required?
Yes. The CPU has 1 SIMATIC Memory Card slot, and plug-in load memory is up to 32 Gbyte.
5. What should be verified for installation?
Verify the installation orientation and temperature limits: horizontal operation is -40 °C to 70 °C, while vertical operation is -40 °C to 40 °C.
