Product Overview
Technical Summary
| Parameter | Value |
|---|---|

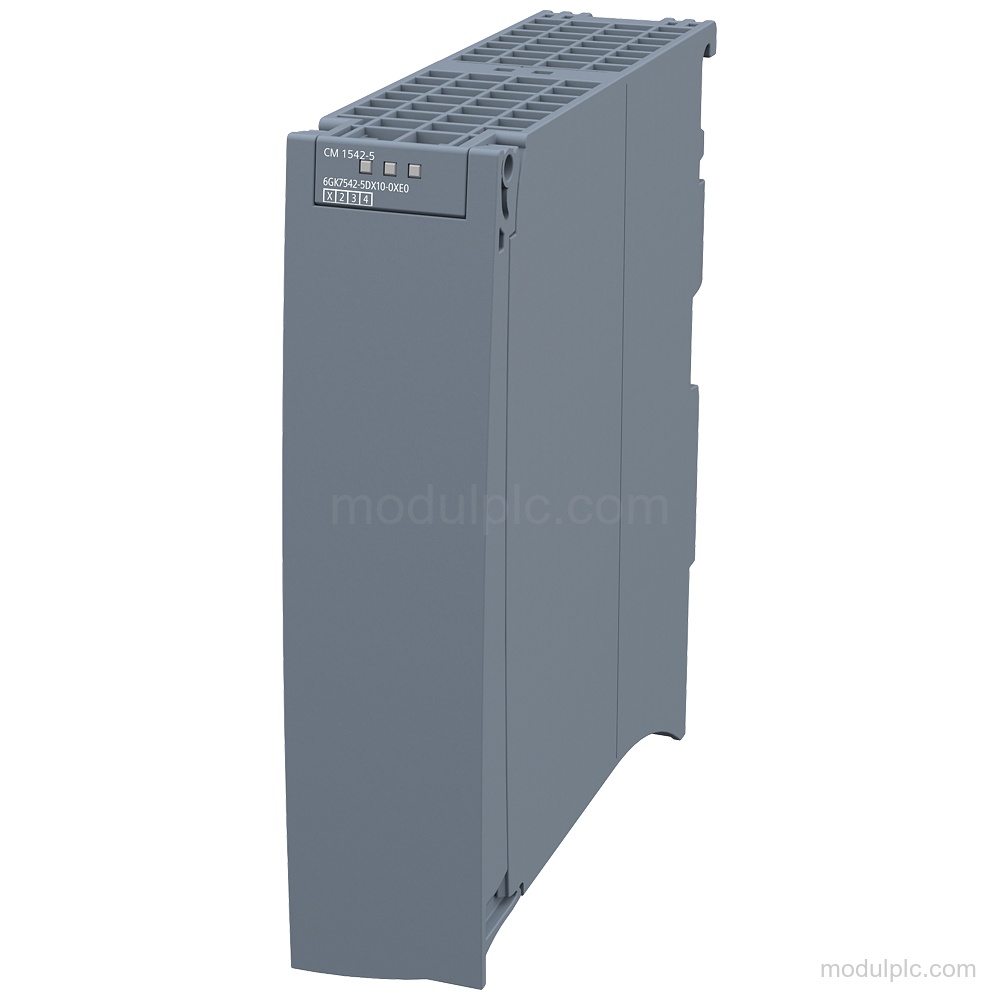

| Module type | CM 1542-5 communications module |
| PROFIBUS DP transfer rate | 9.6 kbit/s … 12 Mbit/s |
| PROFIBUS electrical connection | 1; 9-pin Sub-D socket (RS485) |
| DP master devices | 125 operable |
| DP master input address range | 8192 byte total |
| DP master output address range | 8192 byte total |
| Backplane-bus supply | 15 V DC |
| Typical consumed current | 0.2 A |
| Power loss | 3 W |
| Protection class | IP20 |
| Mounting | S7-1500 rail mounting |
Applications
- PROFIBUS DP master communication: Connects an S7-1500 system to PROFIBUS DP and operates as a DP master for communication with DP devices.
- PROFIBUS DP device communication: Connects an S7-1500 system to PROFIBUS DP and operates as a DP device.
Key Features
- PROFIBUS DP communication: Supports operation as a PROFIBUS DP master and DP device, with a transfer rate of 9.6 kbit/s … 12 Mbit/s.
- Communication connection: Provides 1 PROFIBUS electrical connection through a 9-pin Sub-D socket (RS485); Industrial Ethernet interfaces: 0.
- DP master capacity: Supports up to 125 operable DP devices, with 8192 byte total input and 8192 byte total output address ranges.
- Supply and consumption: Uses 15 V DC from the backplane bus, with typical consumed current of 0.2 A and power loss of 3 W.
- Diagnostics and configuration: Provides web-based diagnostics via the S7-1500 CPU, I&M0 and I&M1 identification functions, and requires STEP 7 Professional V18 (TIA Portal) or higher.
- SIPLUS environmental design: Has conformal coating, IP20 protection, and supports S7-1500 rail mounting in a compact single-width module format.
Frequently Asked Questions
1. What communication roles does the Siemens 6AG1542-5DX10-7XE0 support?
It supports PROFIBUS DP master and DP device operation, including S7 and PG/OP communication.
2. How many PROFIBUS connections and what connector does it have?
It has 1 PROFIBUS electrical connection with a 9-pin Sub-D socket (RS485).
3. What is the PROFIBUS DP transfer rate?
The transfer rate is 9.6 kbit/s … 12 Mbit/s.
4. What supply does the module use?
It uses 15 V DC from the backplane bus. Typical consumed current is 0.2 A and power loss is 3 W.
5. How is the module mounted and configured?
It supports S7-1500 rail mounting and requires STEP 7 Professional V18 (TIA Portal) or higher.
