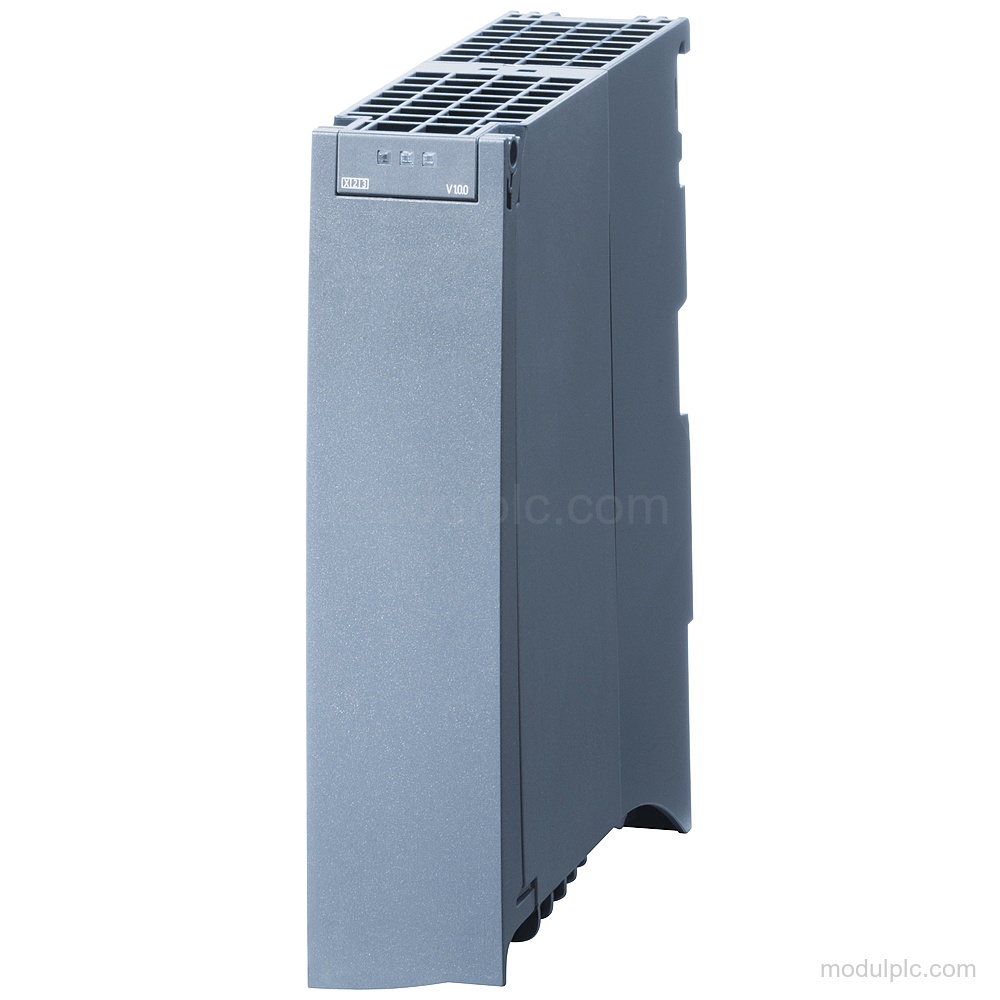

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | DQ 8×230 V AC/5 A ST (relay) |
| Digital output channels | 8 |
| Output type | Relays |
| Rated output voltage | 230 V AC |
| Rated signal "1" output current | 5 A |
| Supply voltage | 24 V DC; permissible range 19.2 V to 28.8 V DC |
| Channel grouping | 1 channel per group |
| Diagnostics | Yes; substitute values connectable |
| Conformal coating | Yes |
| Temperature range | -25…+60 °C |
Applications
- Digital output switching: Switching digital loads through 8 relay outputs, including redundant control of a load.
- Digital input control: Controlling a digital input is possible.
Key Features
- Digital relay outputs: 8 parameterizable relay outputs; current-sinking and current-sourcing are supported.
- Output voltage and current: Rated output voltage: 230 V AC; supported output range: 24 V DC to 120 V DC / 24 V AC to 230 V AC. Signal "1" rated output current: 5 A.
- Channel grouping and isolation: 8 channels are arranged in groups of 1. Channel potential separation is provided, and switching of different phases is permitted.
- Diagnostics and substitute values: Diagnostics, diagnostic alarms, maintenance interrupts, supply-voltage monitoring, and connectable substitute values are supported.
- 24 V DC supply: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Reverse polarity protection is provided.
- Conformal coating and temperature: SIPLUS conformal coating; temperature range: -25…+60 °C.
Frequently Asked Questions
1. How many relay output channels does Siemens 6AG1522-5HF00-2AB0 have?
It has 8 parameterizable relay output channels, arranged in groups of 1.
2. What output voltage and signal "1" current does the module support?
The rated output voltage is 230 V AC, with a supported range of 24 V DC to 120 V DC / 24 V AC to 230 V AC. Signal "1" rated output current is 5 A.
3. What diagnostics are available?
Diagnostics, diagnostic alarms, maintenance interrupts, supply-voltage monitoring, and connectable substitute values are supported.
