Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1515F-2 PN |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V DC permissible |
| PROFINET interfaces | 2; X1 has a 2-port integrated switch, X2 has 1 port |
| Integrated work memory | 1.5 Mbyte for programs; 4.5 Mbyte for data |
| SIMATIC Memory Card | Required; 1 slot; plug-in load memory up to 32 Gbyte |
| Bit operation processing time | 6 ns typical |
| PROFINET IO Devices | X1: up to 256; X2: up to 32 |
| Open IE communication | TCP/IP, ISO-on-TCP, UDP, DHCP, DNS, SNMP, DCP, and LLDP |
| OPC UA | Client and Server supported; runtime license required for OPC UA |
| Safety performance | PLe according to ISO 13849-1; SIL 3 according to IEC 61508 |
Applications
- PROFINET IO control and device communication: The CPU supports PROFINET IO Controller and PROFINET IO Device functions through its integrated PROFINET interfaces.
- Fail-safe program execution: The CPU supports fail-safe programming in LAD and FBD and achieves PLe according to ISO 13849-1 and SIL 3 according to IEC 61508 in safety mode.
Key Features

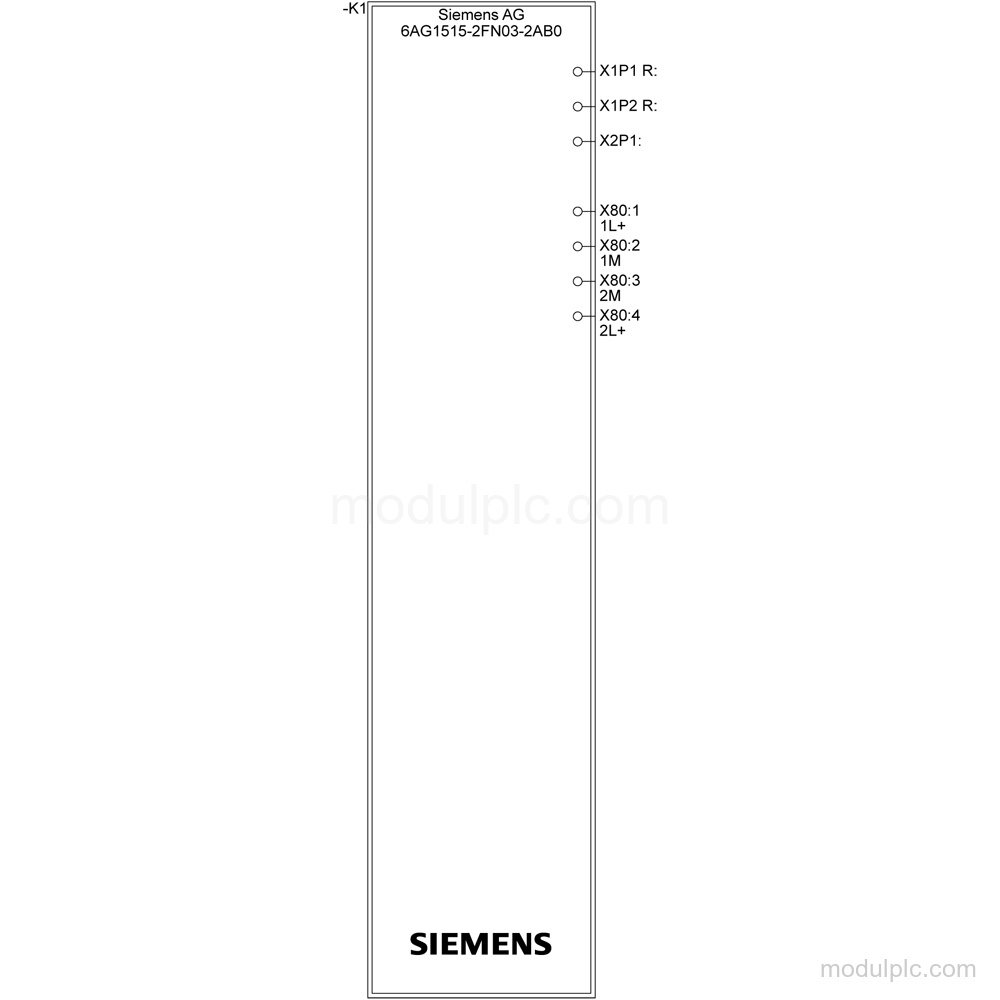

- PROFINET interfaces: 2 interfaces: PROFINET IRT with a 2-port switch and PROFINET RT.
- Work memory: 1.5 Mbyte integrated memory for programs and 4.5 Mbyte for data.
- Supply voltage: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC.
- CPU performance: Bit operation processing time: 6 ns typical.
- Communication protocols: Supports PROFINET IO Controller, PROFINET IO Device, SIMATIC communication, Open IE communication, OPC UA, and MODBUS TCP.

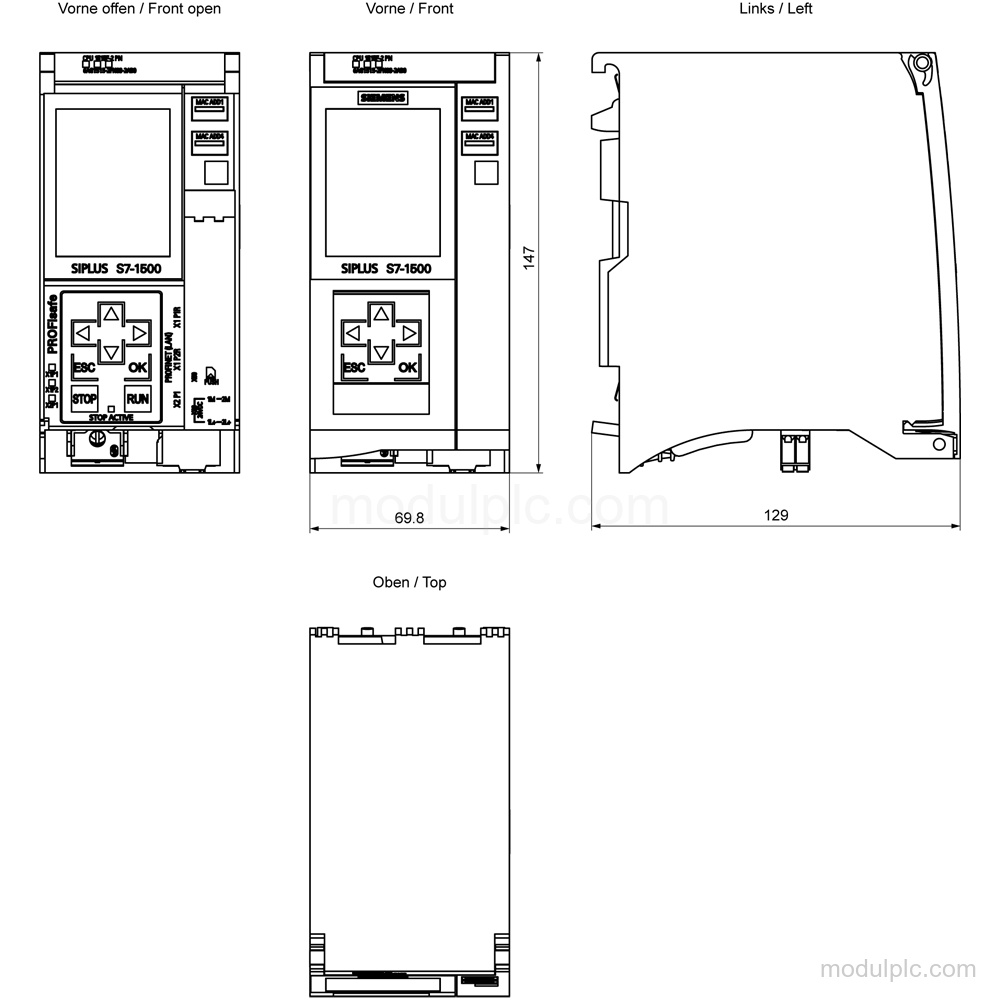

- Installation and protection: Dimensions: 70 mm × 147 mm × 129 mm. Conformal coating and IP-related protection are not specified in the supplied source.
Frequently Asked Questions
1. How many PROFINET interfaces does Siemens 6AG1515-2FN03-2AB0 have?
It has 2 PROFINET interfaces. X1 provides PROFINET IRT with a 2-port integrated switch, while X2 provides PROFINET RT with 1 port.
2. What supply voltage does the CPU require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
3. Is a SIMATIC Memory Card included with the configuration?
A SIMATIC Memory Card is required. The source does not state that the card is included.
