Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1513-1 PN |
| Program work memory | 600 kbyte |
| Data work memory | 2.5 Mbyte |
| PROFINET interfaces | 1 |
| Ethernet ports | 2 |
| Supply voltage | 24 V DC |
| PROFINET IO Devices, max. | 128 |
Applications
- Motion control: Supports Motion Control technology objects, including speed-controlled, positioning, synchronous, external encoder, output cam, cam track, and probe functions.
- Industrial communication: Supports PROFINET IO Controller and IO Device functions, OPC UA, Open IE communication, SIMATIC communication, and MODBUS TCP.
Key Features
- PROFINET IRT interface: 1 PROFINET interface with an RJ 45 Ethernet connection, 2 ports, integrated switch, and 100 Mbps transmission.
- Processing and memory: 600 kbyte integrated work memory for the program and 2.5 Mbyte for data; typical bit-operation processing time is 25 ns.
- Power supply: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Reverse polarity protection is provided.
- Communication protocols: Supports PROFINET IO Controller, PROFINET IO Device, SIMATIC communication, Open IE communication, OPC UA, MODBUS TCP, and Web server functions.
- Diagnostics and protection: Includes I&M0 to I&M3 data, SysLog, diagnostic buffer with up to 1 000 entries, RUN/STOP, ERROR, MAINT, STOP ACTIVE, and LINK TX/RX LEDs.

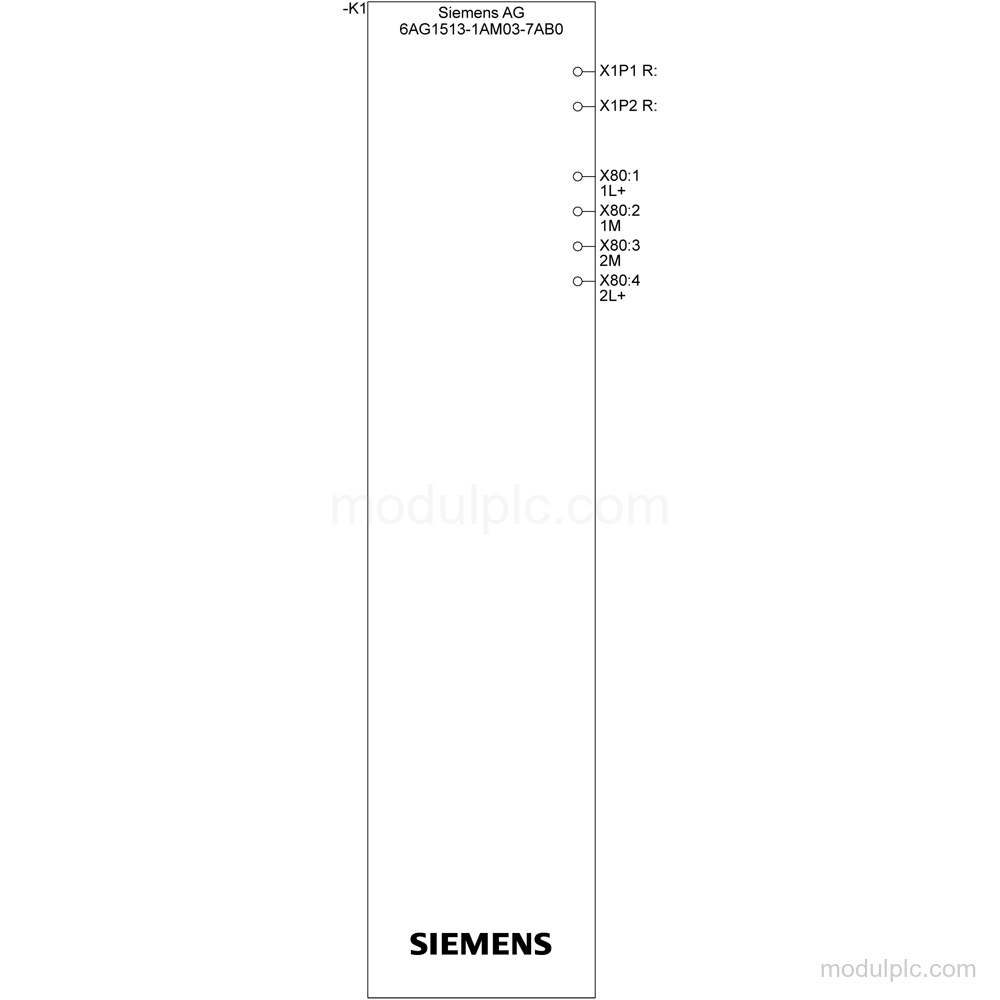

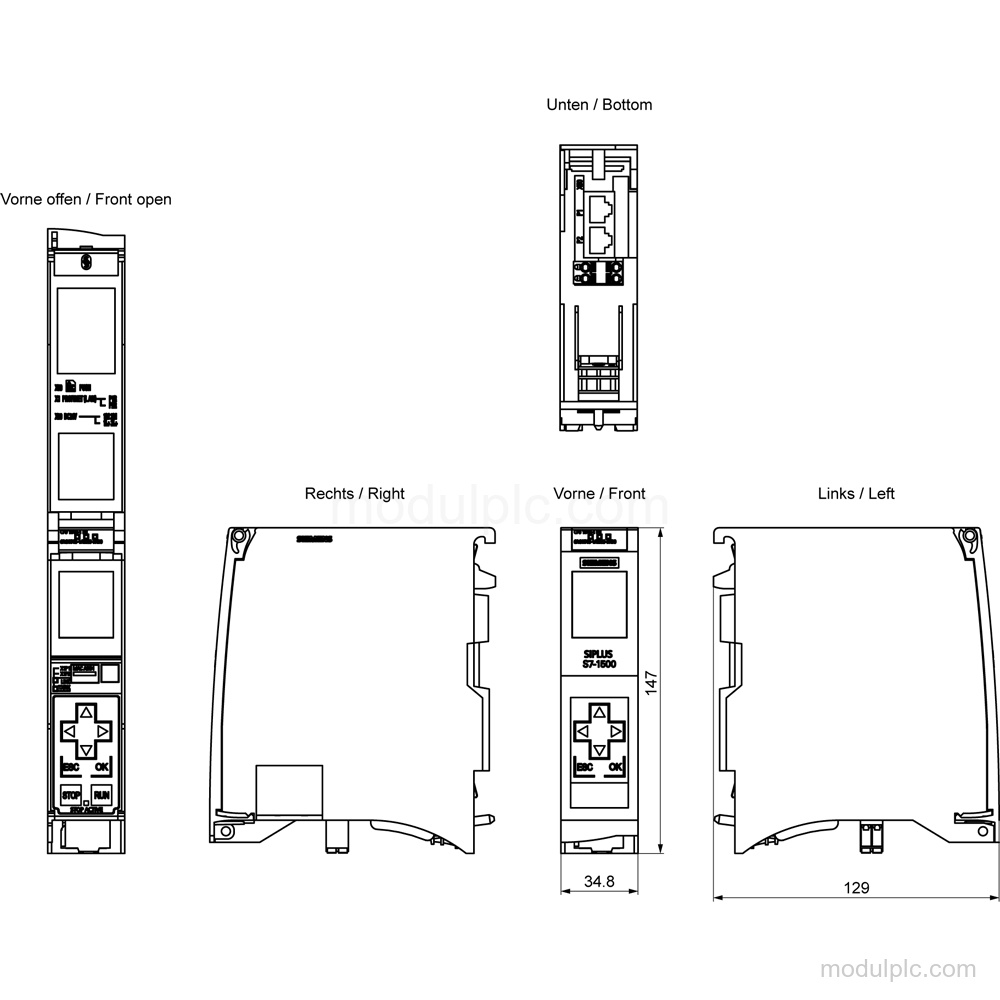

- Conformal coating and installation: Conformal coating is provided for high reliability. Dimensions are 35 mm × 147 mm × 129 mm; horizontal installation ambient temperature is -40 °C to 70 °C.
Frequently Asked Questions
1. What communication interfaces and protocols does Siemens 6AG1513-1AM03-7AB0 support?
It has 1 PROFINET interface with 2 RJ 45 Ethernet ports and an integrated switch. It supports PROFINET IO Controller, PROFINET IO Device, SIMATIC communication, Open IE communication, OPC UA, MODBUS TCP, and Web server functions.
2. What memory and supply voltage does the CPU have?
It has 600 kbyte integrated work memory for the program and 2.5 Mbyte for data. The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
3. What are the dimensions and installation temperature limits?
The dimensions are 35 mm × 147 mm × 129 mm. For horizontal installation, the ambient temperature during operation is -40 °C to 70 °C; vertical installation is -40 °C to 40 °C.
