Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1513-1 PN |
| Program work memory | 600 kbyte |
| Data work memory | 2.5 Mbyte |
| PROFINET interfaces | 1 |
| Ethernet ports | 2 |
| Ethernet speed | 100 Mbps |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Maximum PROFINET IO Devices | 128 |
| OPC UA Server sessions, max. | 32 |
| SIMATIC Memory Card required | Yes |
Applications
- Central processing: Executes the user program with integrated work memory for programs and data.
- PROFINET communication: Provides PROFINET IO Controller and PROFINET IO Device communication through the integrated PROFINET interface.
- Open Ethernet communication: Supports TCP/IP, ISO-on-TCP, UDP, DHCP, DNS, SNMP, DCP and LLDP through Open IE communication.
- Web-based data access: Provides Web server and OPC UA Client and Server functions for data access, methods, alarms and conditions.
Key Features
- Central processing unit: CPU 1513-1 PN based on 6ES7513-1AM03-0AB0, with conformal coating.
- Work memory: Integrated memory: 600 kbyte for programs and 2.5 Mbyte for data.

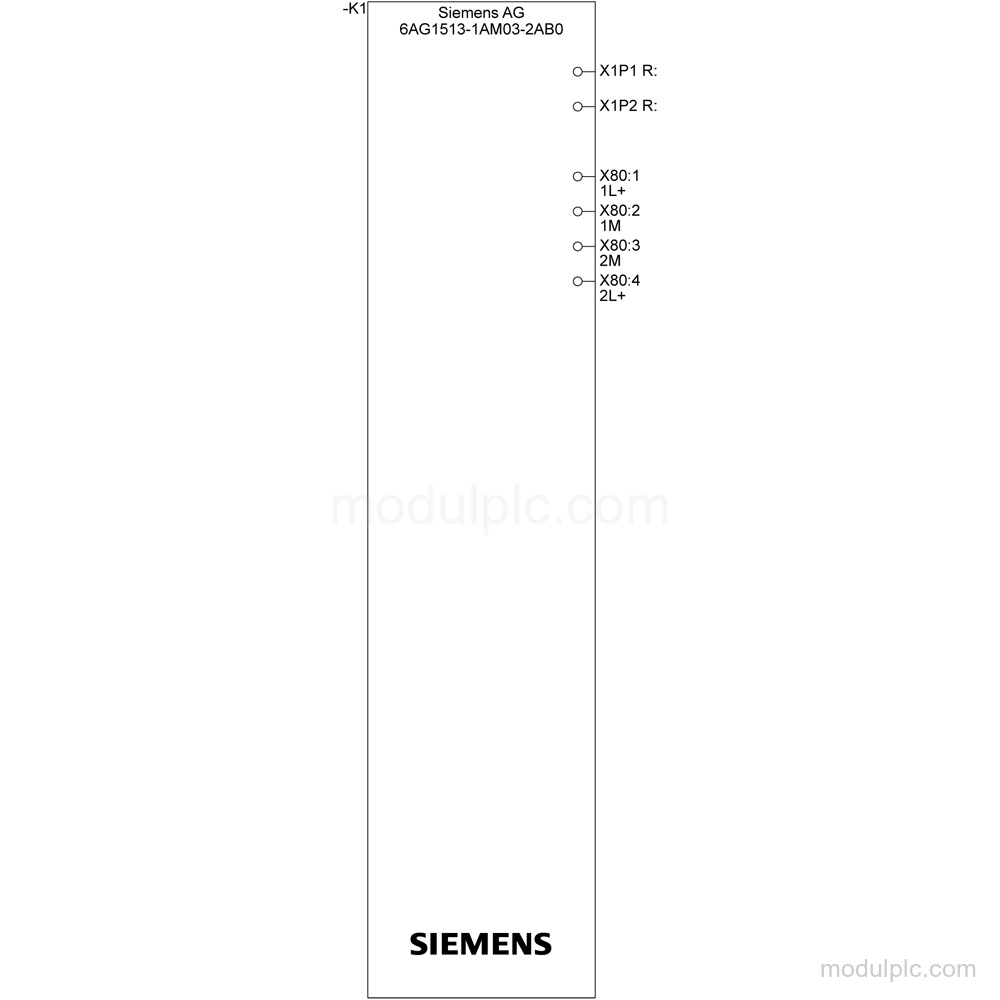

- PROFINET interface: 1 PROFINET interface with RJ 45 Ethernet connection, 2 ports and an integrated switch; 100 Mbps, autonegotiation and autocrossing supported.
- Communication protocols: Supports PROFINET IO Controller, PROFINET IO Device, SIMATIC communication, Open IE communication, OPC UA, MODBUS TCP and Web server.
- Power supply: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Reverse polarity protection is provided.

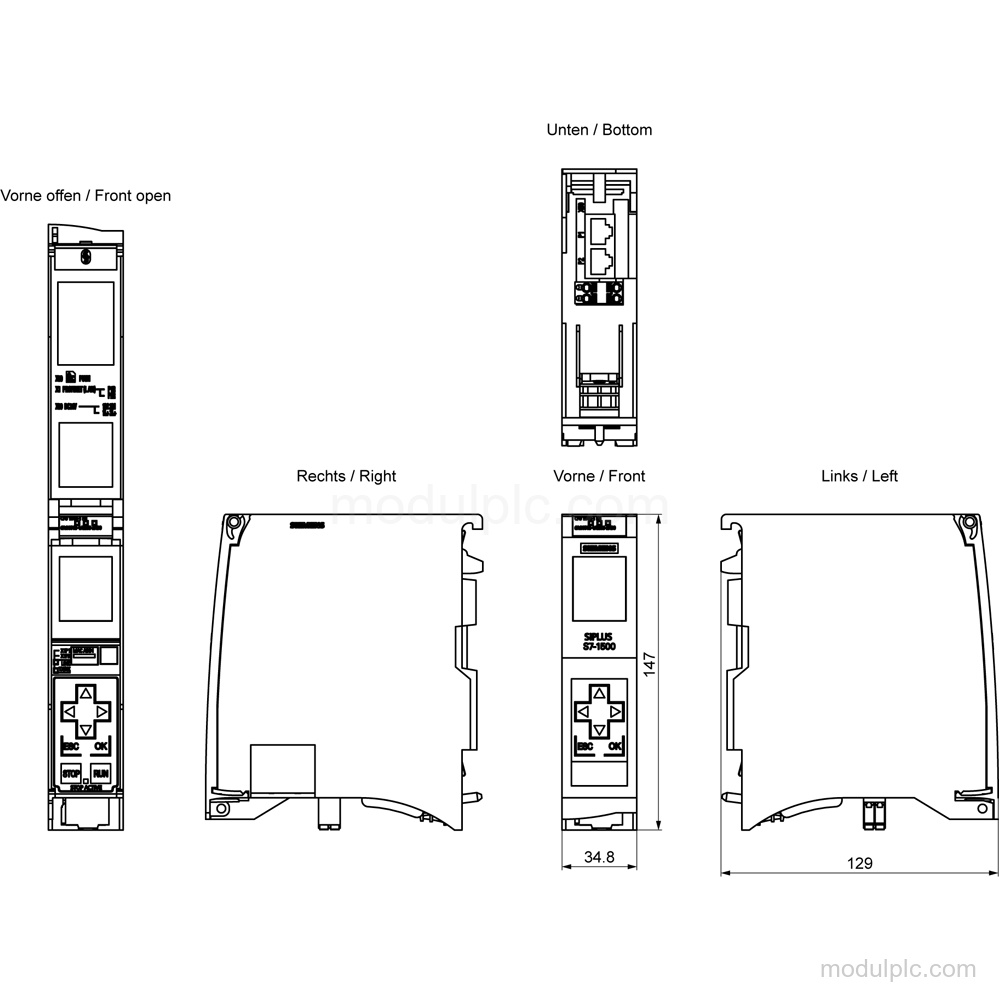

- Installation and protection: Dimensions: 35 mm × 147 mm × 129 mm. Horizontal installation ambient temperature: -40 °C to 60 °C; vertical installation: -40 °C to 40 °C.
Frequently Asked Questions
1. What type of CPU is the Siemens 6AG1513-1AM03-2AB0?
It is a SIPLUS S7-1500 CPU 1513-1 PN central processing unit based on 6ES7513-1AM03-0AB0.
2. How much work memory does this CPU have?
It has 600 kbyte of integrated program work memory and 2.5 Mbyte of integrated data work memory.
3. What PROFINET interface configuration is provided?
It has 1 PROFINET interface with an RJ 45 Ethernet connection, 2 ports and an integrated switch.
4. What supply voltage does the CPU require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
5. Is a memory card included in the configuration?
The CPU requires a SIMATIC Memory Card.
