Product Overview
Technical Summary
| Parameter | Value |
|---|---|

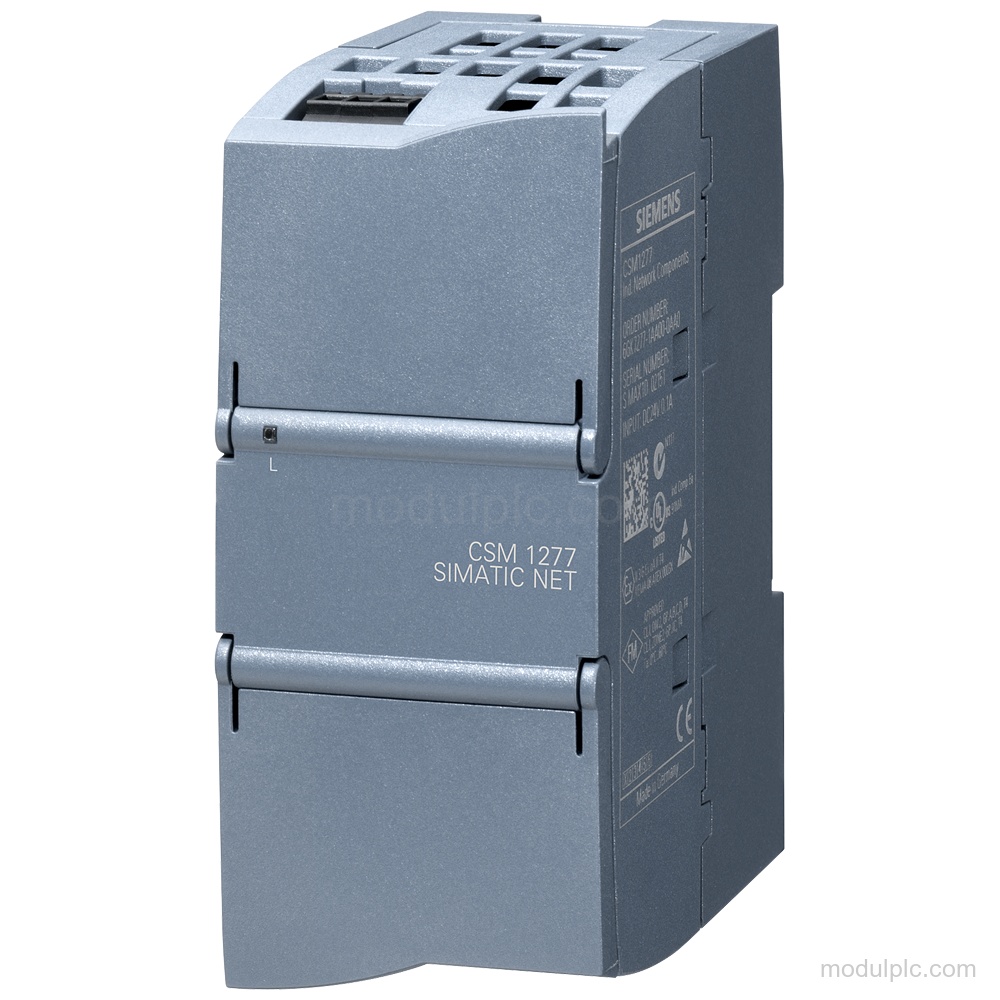

| Product type | SIPLUS CSM 1277 |
| Transfer rate | 10, 100 Mbit/s |
| Connection | SIMATIC S7-1200 and up to 3 further nodes to Industrial Ethernet |
| Ambient temperature | -40 … +70 °C in horizontal mounting position; above 60 °C, 25 mm clearance on both sides |
| Installation altitude | Maximum 5000 m |
| Protection class | IP20 |
| Conformal coating | Class A |
| Product lifecycle | Active Product |
Applications
- Industrial Ethernet connection: Connects SIMATIC S7-1200 and up to 3 further nodes to Industrial Ethernet.
Key Features
- Industrial Ethernet connection: Connects SIMATIC S7-1200 and up to 3 further nodes to Industrial Ethernet.
- Transfer rate: Supports 10, 100 Mbit/s.
- Ambient temperature: Supports -40 … +70 °C in horizontal mounting; above 60 °C, maintain 25 mm clearance on both sides to adjacent devices.
- Conformal coating: Equipped printed circuit board has conformal coating, class A, with protection of the type 1.
- Dimensions and weight: Measures 75 mm wide, 100 mm high, and 45 mm deep; net weight is 0.2 kg.
- Protection and unused interfaces: Protection class is IP20. Supplied plug covers must remain in place on unused interfaces during operation.
Frequently Asked Questions
1. What does the Siemens 6AG1277-1AA10-2AA0 connect?
It connects SIMATIC S7-1200 and up to 3 further nodes to Industrial Ethernet.
2. What transfer rates does the SIPLUS CSM 1277 support?
It supports 10, 100 Mbit/s.
3. What ambient temperature is supported?
It supports -40 … +70 °C in horizontal mounting. Above 60 °C ambient temperature, maintain 25 mm clearance on the left and right to adjacent devices.
4. What are the dimensions and protection class?
The dimensions are 75 mm x 100 mm x 45 mm, and the protection class is IP20.
5. What should be verified before inquiry about unused interfaces?
The supplied plug covers must remain in place on unused interfaces during operation.
