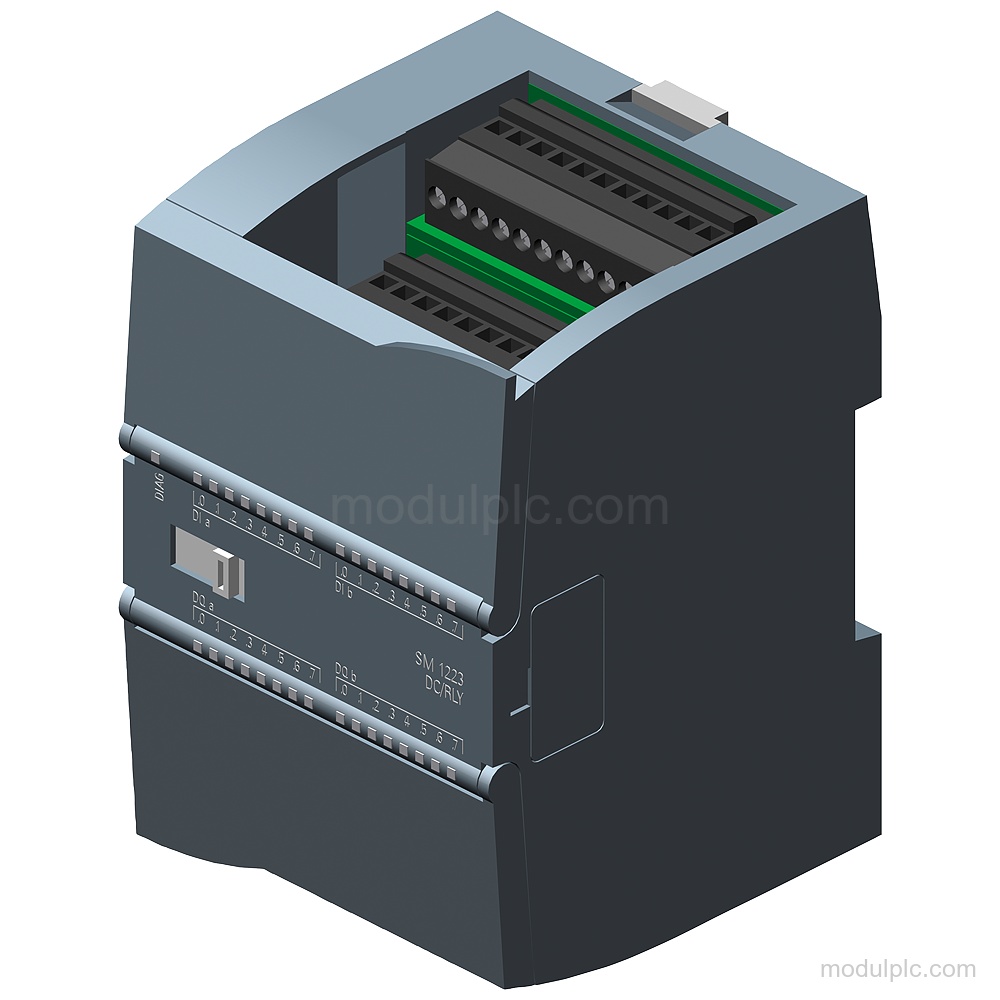

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SM 1223, DI 16×24 V DC, DQ 16x relay |
| Digital inputs | 16 |
| Relay outputs | 16 |
| Input voltage | 24 V DC |
| Output voltage, DC | 5 V DC to 30 V DC |
| Output voltage, AC | 5 V AC to 250 V AC |
| Output current | 2 A |
| Supply voltage | 24 V DC; 20.4 V DC to 28.8 V DC permissible |
| Protection degree | IP20 |
Applications
- Digital signal acquisition: The module acquires digital input signals through 16 digital inputs.
- Relay output control: The module controls output loads through 16 relay outputs rated at 2 A.
Key Features
- Digital I/O: 16 digital inputs and 16 relay outputs; inputs are grouped in 2 and outputs in 4.
- Input signals: 24 V DC input rating; signal 0 is 5 V DC at 1 mA, and signal 1 is 15 V DC at 2.5 mA.
- Relay output ranges: Output voltage: 5 V DC to 30 V DC or 5 V AC to 250 V AC; output current: 2 A.
- Supply and power: Rated supply voltage: 24 V DC; permissible range: 20.4 V DC to 28.8 V DC; typical power loss: 10 W.
- Diagnostics and protection: Diagnostic alarm and input/output status LEDs are provided; protection degree is IP20.
- Conformal coating and connection: Conformal coating is provided; a front connector is required, and dimensions are 70 mm × 100 mm × 75 mm.
Frequently Asked Questions
1. How many digital inputs and relay outputs does 6AG1223-1PL32-4XB0 have?
It has 16 digital inputs and 16 relay outputs.
2. What input voltage does the module use?
The input voltage rating is 24 V DC. For signal 0, it is 5 V DC at 1 mA; for signal 1, it is 15 V DC at 2.5 mA.
3. What output voltage and current are supported?
The output voltage is 5 V DC to 30 V DC or 5 V AC to 250 V AC, with an output current of 2 A.
4. What connection and protection details should be verified before inquiry?
A front connector is required, and the protection degree is IP20. The dimensions are 70 mm × 100 mm × 75 mm.
