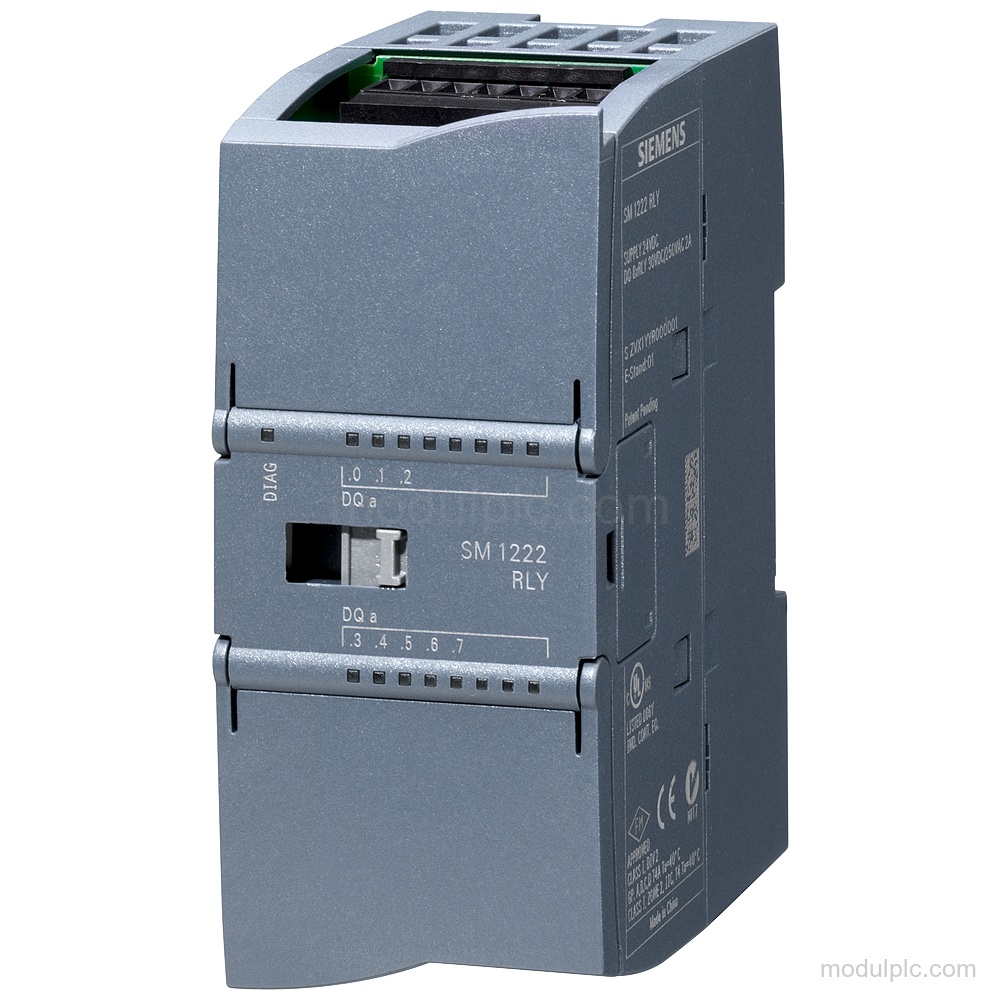

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | SM 1222, DQ 8x relay/2 A |
| Digital outputs | 8 |
| Relay outputs | 8 |
| Rated DC output voltage | 5 V DC to 30 V DC |
| Rated AC output voltage | 5 V AC to 250 V AC |
| Rated output current for signal "1" | 2 A |
| Relay coil supply voltage | 24 V |
| Maximum resistive-load switching capacity | 2 A |
| Protection degree | IP20 |
Key Features
- Digital relay outputs: The module has 8 digital outputs and 8 relay outputs, with relay changeover contacts.
- Output voltage ranges: Rated output voltage is 5 V DC to 30 V DC or 5 V AC to 250 V AC.
- Output current: Rated output current for signal "1" is 2 A.
- Switching capacity: Maximum switching capacity with a resistive load is 2 A; lamp load is 30 W with DC and 200 W with AC.
- Relay coil supply: The rated supply voltage of the relay coil L+ (DC) is 24 V.
- Diagnostics and protection: Diagnostic alarm and output-status LED indication are available. Short-circuit protection is not provided and must be provided externally; protection degree is IP20.
Frequently Asked Questions
1. What type of output module is Siemens 6AG1222-1XF32-4XB0?
It is an SM 1222 digital output module with 8 relay outputs and relay changeover contacts.
2. How many relay outputs does the module have?
It has 8 relay outputs, in groups of 1.
3. What output voltage ranges are supported?
The rated output ranges are 5 V DC to 30 V DC and 5 V AC to 250 V AC.
4. What relay coil supply voltage is required?
The rated supply voltage of the relay coil L+ (DC) is 24 V.
5. Is short-circuit protection included?
No. Short-circuit protection is not provided and must be provided externally.
