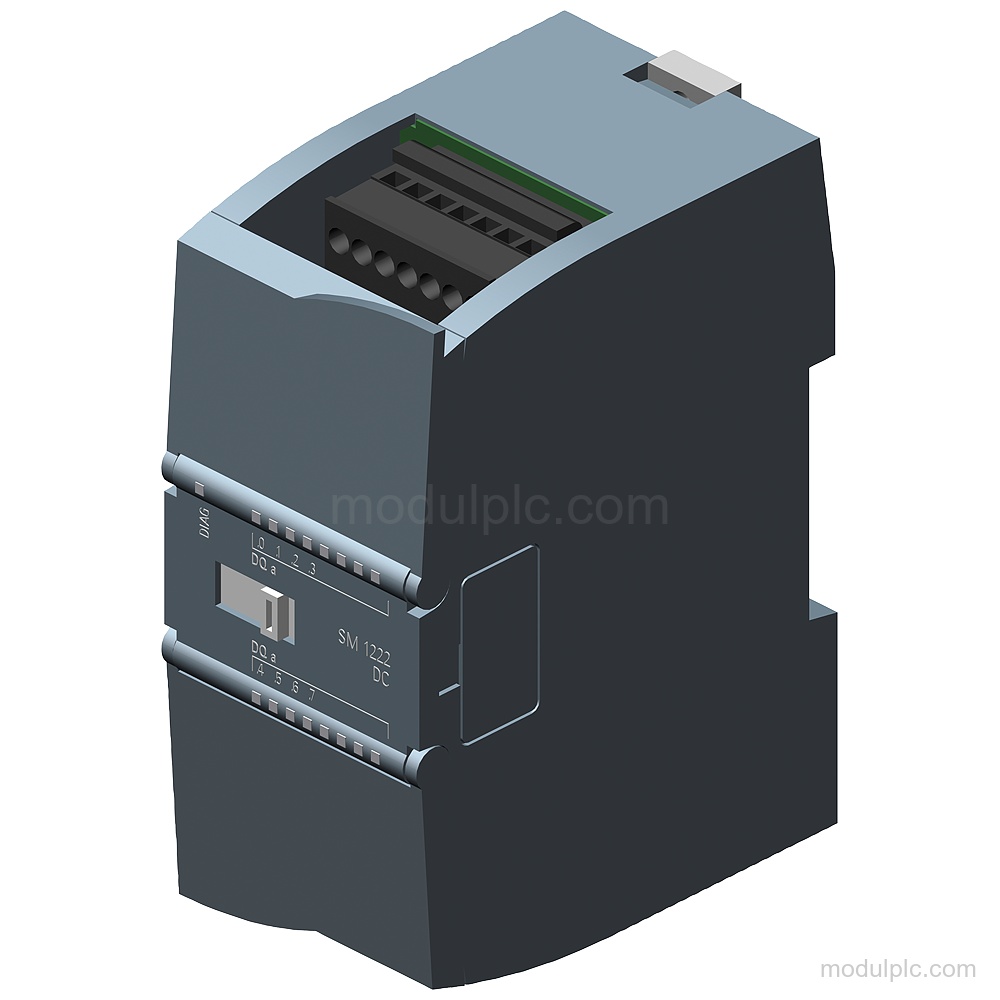

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | SM 1222, DQ 8×24 V DC/0.5 A |
| Digital outputs | 8 |
| Output type | Transistor |
| Rated output voltage | 24 V DC |
| Rated output current for signal "1" | 0.5 A |
| Permissible supply voltage | 20.4 V to 28.8 V DC |
| Maximum resistive-load switching capacity | 0.5 A |
| Maximum lamp-load switching capacity | 5 W |
| Required connection | Front connector |
Applications
- Digital output control: Controls digital output signals through 8 transistor outputs with 24 V DC rated output voltage.
Key Features
- Digital output channels: 8 transistor digital outputs, in groups of 1.
- Output electrical data: Rated output voltage: 24 V DC; rated output current for signal "1": 0.5 A.
- Output switching capacity: Maximum switching capacity: 0.5 A with resistive load and 5 W with lamp load.
- Diagnostics and isolation: Diagnostics function, diagnostic alarm, supply-voltage monitoring, and output-status LED are available. Digital outputs are separated from the backplane bus by 500 V AC, with channel separation in groups of 1.
- Installation and protection: Required front connector; dimensions: 45 mm width, 100 mm height, 75 mm depth. Degree of protection: IP20.
Frequently Asked Questions
1. What type of output module is Siemens 6AG1222-1BF32-4XB0?
It is an SM 1222 digital output module with 8 transistor outputs, designated DQ 8×24 V DC/0.5 A.
2. How many digital outputs does the module have?
It has 8 digital outputs, in groups of 1.
3. What output voltage and current does it provide?
The rated output voltage is 24 V DC, and the rated output current for signal "1" is 0.5 A.
4. What supply voltage range does it permit?
The permissible DC supply-voltage range is 20.4 V to 28.8 V.
5. What connection and protection details should be verified before inquiry?
A front connector is required, and the module has IP20 protection. Short-circuit protection is not provided internally and must be provided externally.
