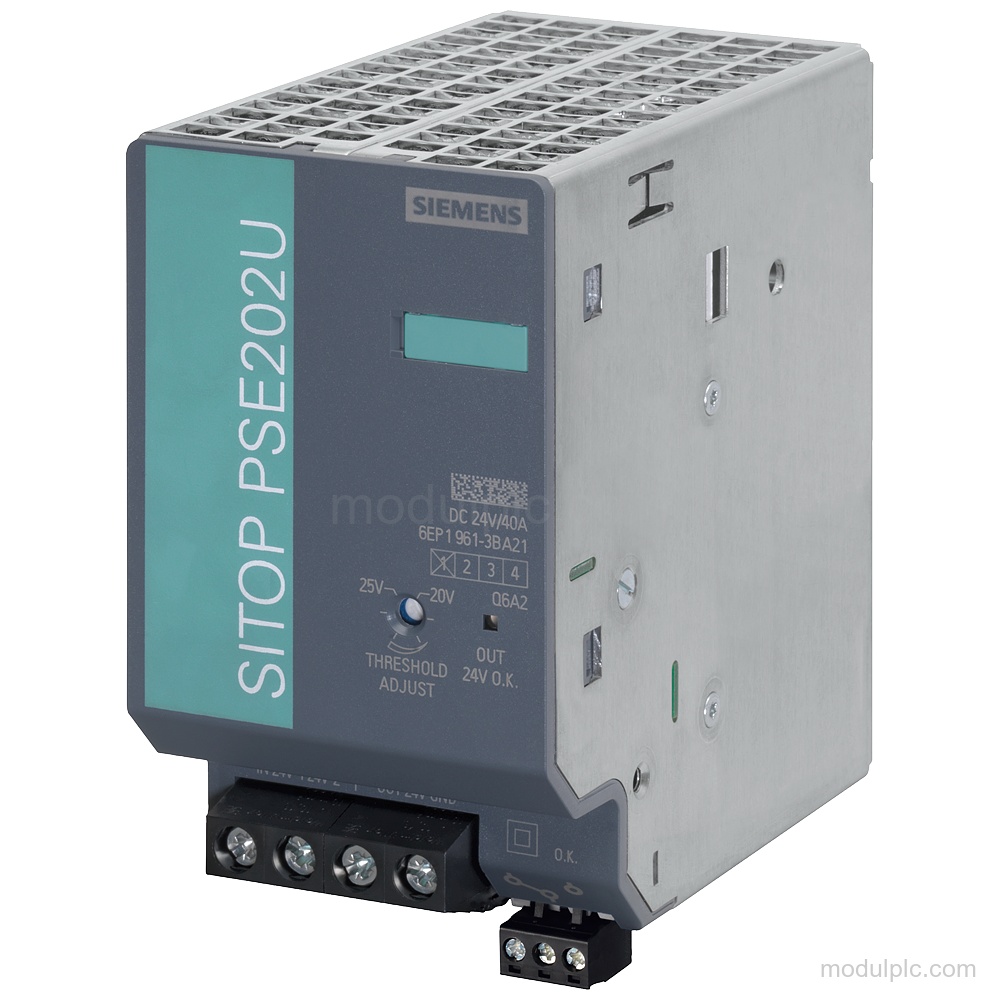

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product function | Redundancy module for decoupling two SITOP power supplies |
| Input voltage at DC | 24 … 28.8 V |
| Output voltage at DC rated value | 24 V |
| Rated output current | 40 A |
| Maximum aggregate current | 40 A |
| Efficiency | 96.5 % |
| Output signal | Isolated relay contact, changeover contacts, rating 8 A/240 V AC, 24 V DC |
| Connection | Screw terminal |
| Mounting | DIN rail EN 60715 35×7.5/15 |
| Protection class | IP20 |
| Operating temperature | 0 … 60 °C with natural convection in horizontal mounting position |
Applications
- Power supply decoupling: Decouples two SITOP power supplies with max. 20 A output current each.
Key Features
- Redundancy function: Suitable for decoupling two SITOP power supplies with max. 20 A output current each.
- Input and output: Input voltage at DC: 24 … 28.8 V; output voltage at DC rated value: 24 V; rated output current: 40 A.
- Status indication: Green LED indicates both input voltages are above the switching threshold; red LED indicates at least one is below it.
- Relay signal: Isolated relay contact with changeover contacts, rated 8 A/240 V AC, 24 V DC; switching threshold setting range: 20 … 25 V.
- Connections and mounting: Screw terminals; input, output and ground each use 1 screw terminal for 0.33 … 10 mm2 conductors. Snaps onto DIN rail EN 60715 35×7.5/15.
- Protection and coating: IP20 protection, Class III operating resource protection, and conformal coating, Class A according to IPC-CC-830A.
Frequently Asked Questions
1. What is the function of the Siemens 6AG1961-3BA21-4AX0?
It is a SIPLUS PS E202U redundancy module suitable for decoupling two SITOP power supplies with max. 20 A output current each.
2. What are the input and output ratings?
The input voltage at DC is 24 … 28.8 V, the output voltage at DC rated value is 24 V, and the rated output current is 40 A.
3. How is the module connected?
It uses screw terminals. Input, output and ground each have 1 screw terminal for 0.33 … 10 mm2 single-core or finely stranded conductors.
4. How is the module mounted?
It snaps onto DIN rail EN 60715 35×7.5/15. DIN-rail mounting is supported; S7 rail and wall mounting are not.
