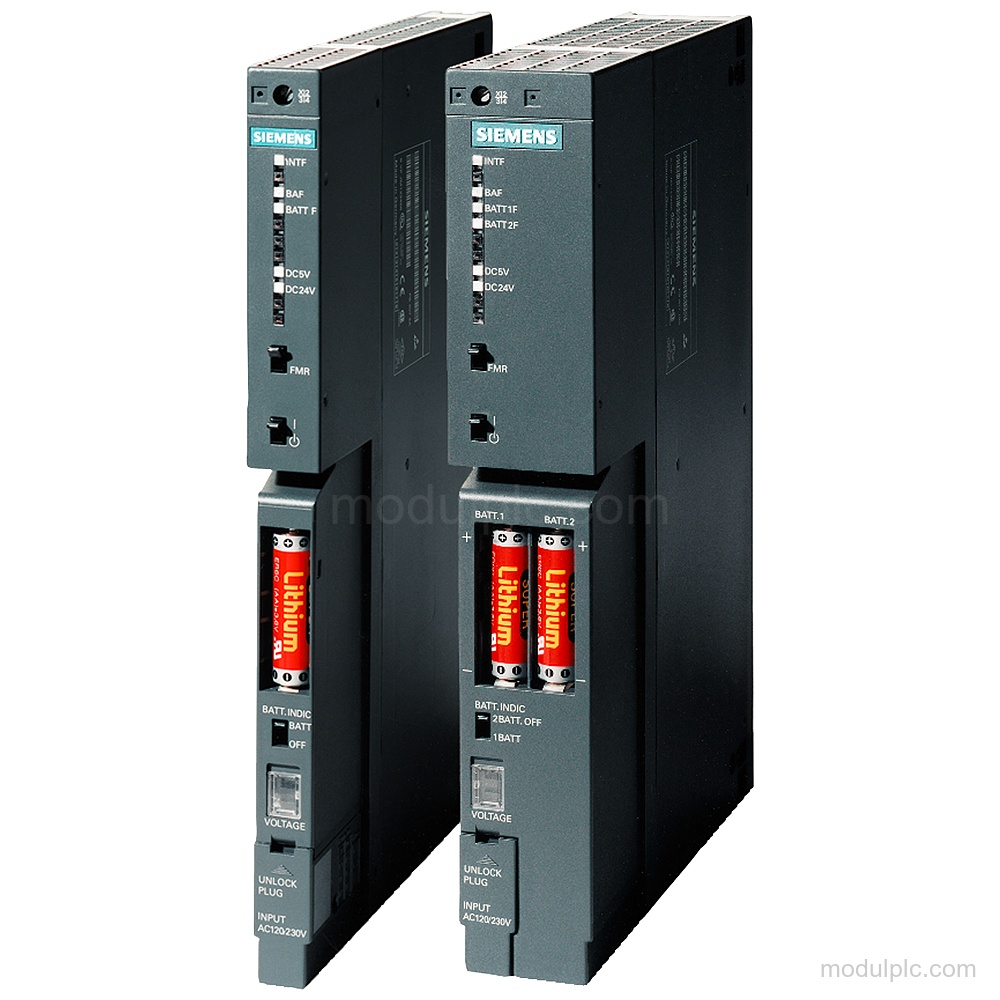

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Input rated values | 24 V DC; 48 V DC; 60 V DC |
| Backplane bus output voltage | 5 V DC |
| Backplane bus output current, max. | 10 A; no base load required |
| 24 V DC backplane bus output current, max. | 1 A; idling-proof |
| Mains/voltage failure stored energy time | 20 ms |
| Input current at 24 V DC | 4 A |
| Input current at 48 V DC | 2 A |
| Input current at 60 V DC | 1.6 A |
| Required slots | 2 |
Applications
- Backplane bus power supply: Supplies 5 V DC and 24 V DC to the backplane bus.
- DC power conversion: Converts 24/48/60 V DC input into DC output voltage.
Key Features
- DC input supply: Rated input values: 24 V DC, 48 V DC, and 60 V DC.
- Backplane bus output: Output for the backplane bus: 5 V DC, maximum 10 A; no base load required.
- 24 V DC bus output: Output for the backplane bus: 24 V DC, maximum 1 A; idling-proof.
- Mains buffering: Stored energy time during mains/voltage failure: 20 ms; mains buffering according to NAMUR recommendation.
- Installation and protection: Required slots: 2. Connection: 3x 1.5 mm2, solid or stranded wire with end sleeve, external diameter 3 mm to 9 mm. Dimensions: 50 mm x 290 mm x 217 mm; equipment protection class I, with protective conductor.
- Conformal coating: Conformal coating for printed circuit board assemblies according to EN 61086: Class 2 for high reliability; protection against fouling according to EN 60664-3: Type 1 protection.
Frequently Asked Questions
1. What input voltages does the 6AG1405-0KA02-7AA0 support?
It has rated input values of 24 V DC, 48 V DC, and 60 V DC.
2. What output does it provide for the backplane bus?
It provides 5 V DC, maximum 10 A, for the backplane bus; no base load is required.
3. What connection method and wire size does it use?
The connection is 3x 1.5 mm2 with solid or stranded wire and end sleeve; the external diameter is 3 mm to 9 mm.
4. How many slots are required for this power supply?
It requires 2 slots.
5. Does the configuration include a backup battery?
The backup battery is optional.
