Product Overview
Technical Summary

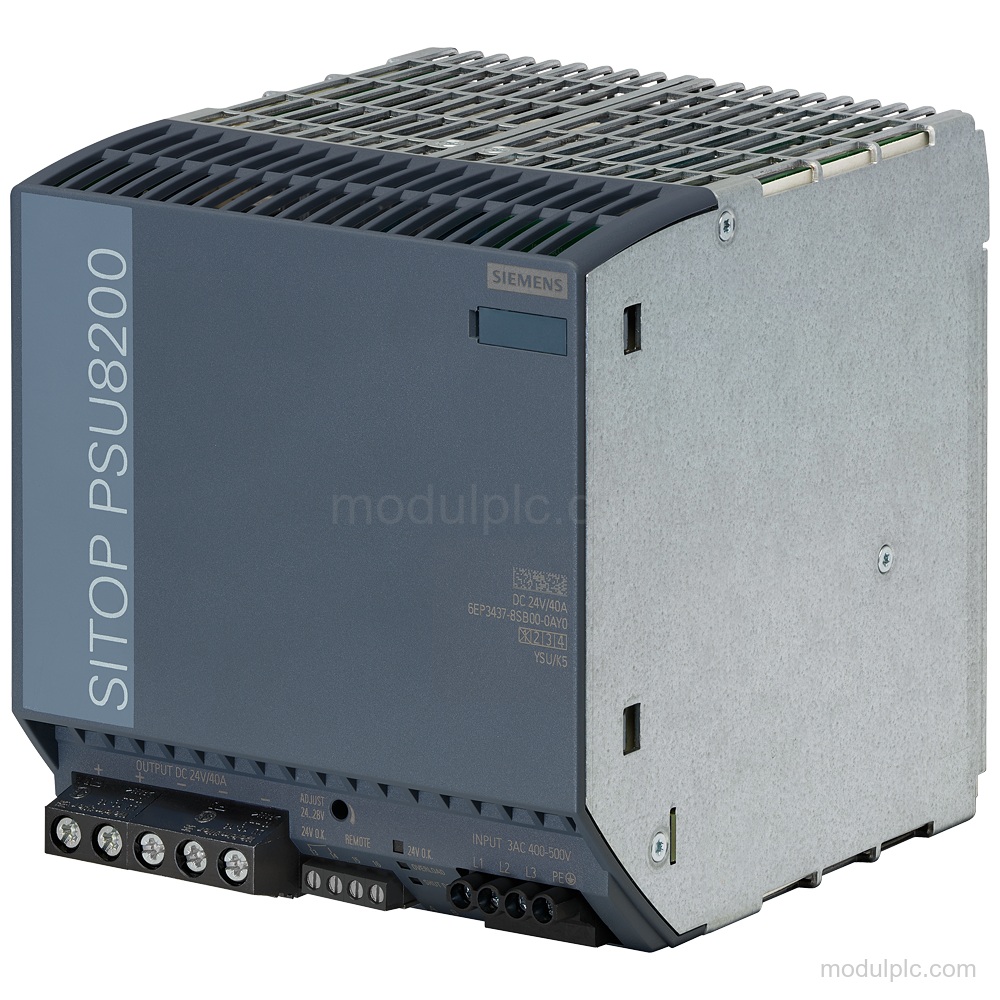

| Parameter | Value |
|---|---|
| Product type | SIPLUS PSU8200 3-phase power supply |
| Input supply | 3-phase AC, 400 … 500 V rated |
| Line frequency | 50/60 Hz; 45 … 65 Hz |
| Rated output | 24 V DC/40 A |
| Adjustable output | 24 … 28 V via potentiometer; max. 960 W |
| Output tolerance | 3 % relative overall tolerance |
| Efficiency | 94 % |
| Output signal | Relay contact, NO contact, 60 V DC/0.3 A rating |
| Input connection | L1, L2, L3, PE: 1 screw terminal each for 0.5 … 4 mm2 |
| Output connection | + : 2 screw terminals; – : 3 screw terminals, each for 0.5 … 16 mm2 |
| Mounting | DIN rail EN 60715 35×15; S7 rail and wall mounting: No |
Applications
- DC power supply: Provides stabilized, isolated 24 V DC power at a rated output current of 40 A.
- Output-status signaling: Provides a relay contact for the 24 V OK output signal and LED indications for normal operation, overload and latching shutdown.
Key Features
- 3-phase power supply: Input: 3-phase AC, 400 … 500 V rated supply voltage and 50/60 Hz line frequency.
- 24 V DC output: Output: 24 V DC/40 A; adjustable from 24 … 28 V via potentiometer, with maximum 960 W.
- Output monitoring: Green LED indicates 24 V OK; a relay contact provides the 24 V OK signal, rated 60 V DC/0.3 A.
- Protection and overload: The output is short-circuit proof, with overvoltage protection < 31.8 V and overload capability of 150 % Iout rated up to 5 s/min in normal operation.
- Connections and mounting: Screw terminals are provided for input, output and auxiliary contacts; the device snaps onto DIN rail EN 60715 35×15.
- SIPLUS environmental design: Conformal coating, IP20 protection and horizontal operation from -25 … +70 °C with natural convection.
Frequently Asked Questions
1. What output does Siemens 6AG1437-8SB00-7AY0 provide?
It provides a stabilized, isolated output of 24 V DC/40 A. The output is adjustable from 24 … 28 V via potentiometer, with maximum 960 W.
2. What input supply does this SIPLUS PSU8200 use?
It uses 3-phase AC with a rated supply-voltage range of 400 … 500 V and a line frequency of 50/60 Hz; 45 … 65 Hz.
3. How is the power supply connected?
It uses screw terminals. Input terminals are L1, L2, L3 and PE; output terminals are + and -; auxiliary contacts include 13, 14 and 15, 16.
4. How is Siemens 6AG1437-8SB00-7AY0 mounted?
It snaps onto DIN rail EN 60715 35×15. It is without S7 rail mounting and without wall mounting.
