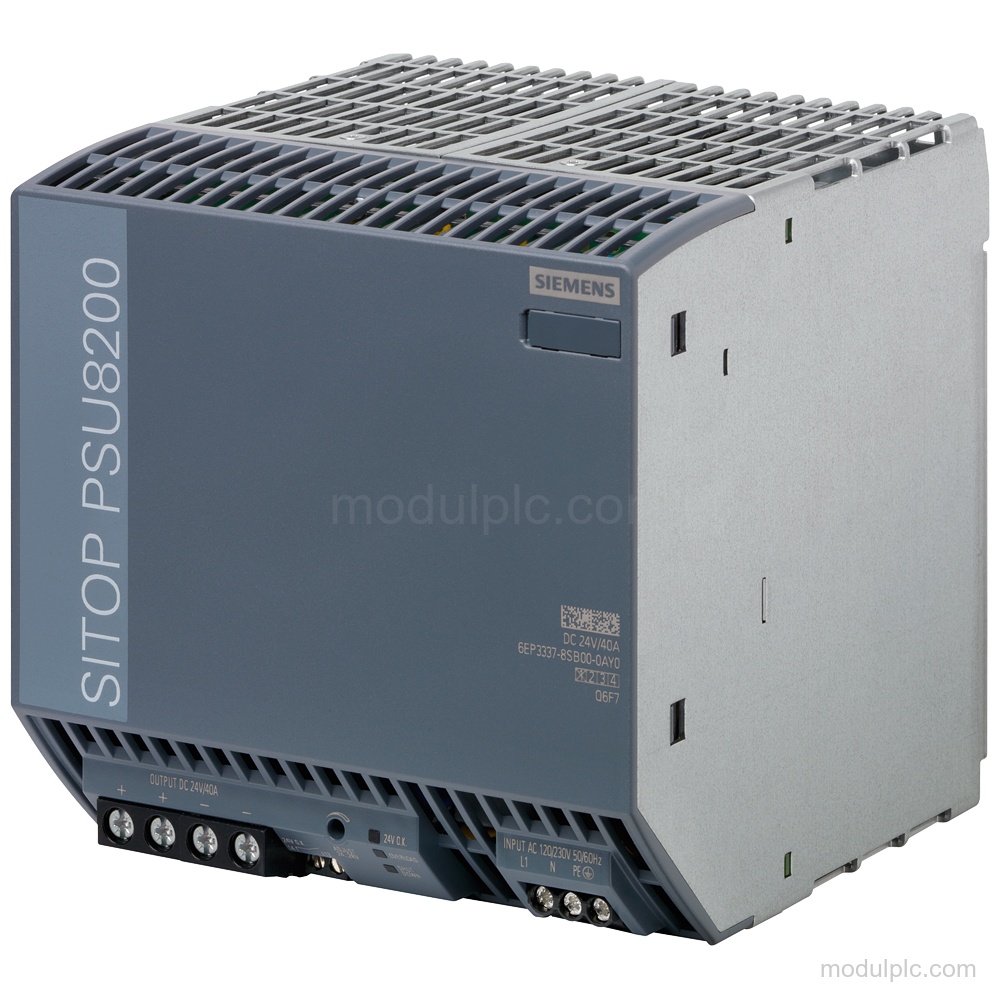

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Input voltage | 120 V/230 V AC |
| Input voltage ranges | 85 … 132 V AC; 170 … 264 V AC |
| Output voltage | 24 V DC |
| Rated output current | 40 A |
| Adjustable output voltage | 24 … 28 V; max. 960 W |
| Output status signal | Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK" |
| Connection | Screw terminal |
| Mounting | DIN rail EN 60715 35×15 |
Applications
- Stabilized power supply: Supplies controlled, isolated 24 V DC for connected electrical equipment from a 1-phase or 2-phase AC supply.
Key Features
- AC input: 1-phase and 2-phase AC supply with 120 V/230 V input voltage and input ranges of 85 … 132 V or 170 … 264 V.
- DC output: 24 V DC rated output at 40 A, with 24 … 28 V adjustable output voltage and maximum 960 W.
- Output protection: The output is short-circuit proof, with overvoltage protection below 32 V and selectable constant-current or latching-shutdown behavior.
- Status indication: A green LED indicates 24 V OK; a yellow LED indicates overload; a red LED indicates short-circuit or latching shutdown.
- Connections and mounting: Screw terminals are provided for input, output and auxiliary contacts. The unit snaps onto DIN rail EN 60715 35×15.
- Environmental design: Conformal coating, IP20 protection and horizontal operation from -40 … +70 °C with natural convection.
Frequently Asked Questions
1. What output does the 6AG1337-8SB00-7AY0 provide?
It provides 24 V DC at a rated output current of 40 A. The output voltage is adjustable from 24 … 28 V, with maximum 960 W.
2. What AC input voltage does this power supply use?
It uses 120 V/230 V AC. The input ranges are 85 … 132 V AC and 170 … 264 V AC.
3. How is the unit connected and mounted?
It uses screw terminals and snaps onto DIN rail EN 60715 35×15. S7 rail mounting and wall mounting are not available.
4. Does the configured unit include electrical accessories?
It is without the listed electrical accessories; buffer and redundancy modules are specified as accessories.
