Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1515SP PC2 |
| Processor | Intel Atom E3940, 1.6 GHz, 4 cores |
| Main memory | 8 GB RAM |
| Rated supply voltage | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| Industrial Ethernet interfaces | 2; integrated switch; 1 000 Mbit/s maximum |
| PROFINET interface | 1; via BusAdapter |
| USB interfaces | 4; 2x USB 2.0, 2x USB 3.0 |
Key Features
- CPU and memory: Intel Atom E3940 processor at 1.6 GHz with 4 cores and 8 GB DDR3L RAM.
- Supply: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC, with reverse polarity protection.
- Industrial Ethernet: 2 industrial Ethernet interfaces with an integrated switch, 1 000 Mbit/s maximum transmission rate, and 1 port.
- PROFINET and PROFIBUS: 1 PROFINET interface via BusAdapter and 1 PROFIBUS interface via CM DP module.
- USB and display interfaces: 4 front-side USB interfaces: 2x USB 2.0 and 2x USB 3.0; 1 DisplayPort.

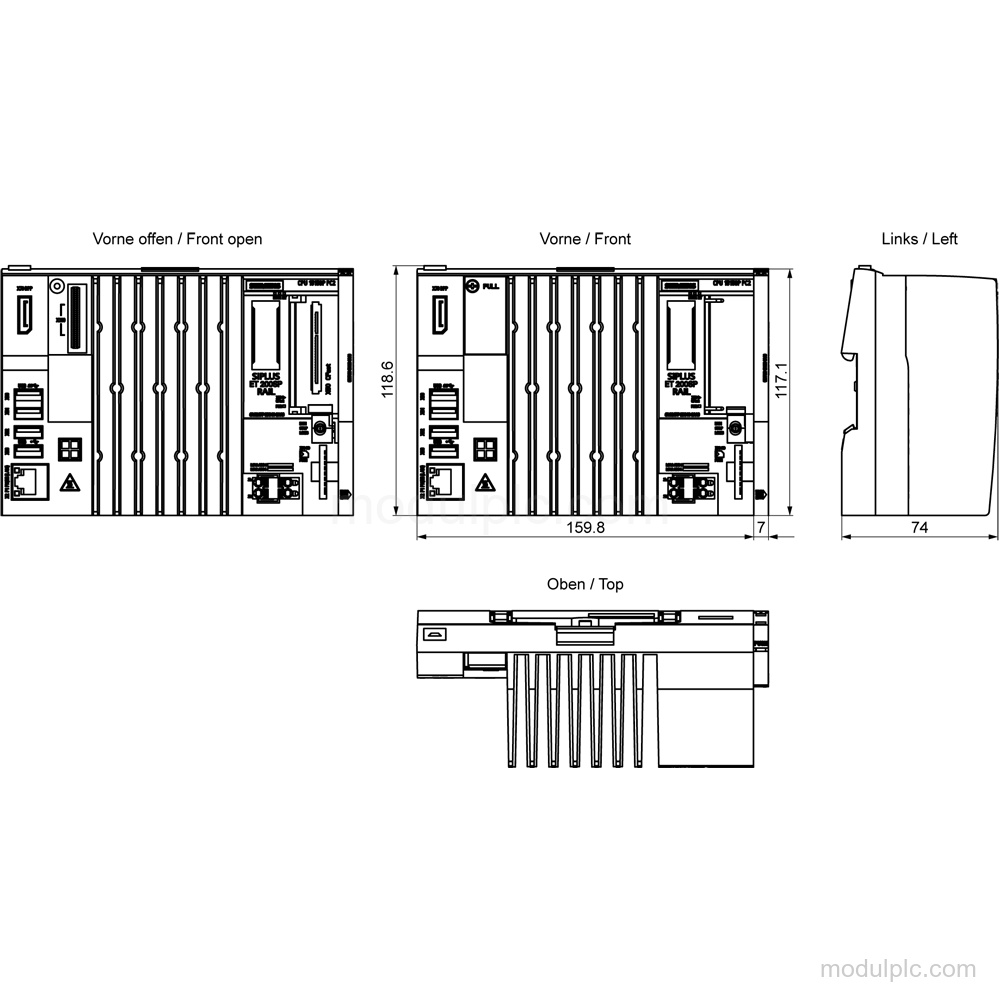

- Installation and protection: 160 mm x 117 mm x 75 mm; horizontal installation supports -40 °C to 70 °C, with stated load restrictions. Conformal coating is Class 2 for high reliability.
Frequently Asked Questions
1. What is the product type of 6AG2677-2DB40-2AA0?
It is a SIPLUS ET 200SP CPU 1515SP PC2 rail spare based on 6ES7677-2DB40-0AA0.
2. What supply voltage does this CPU use?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
3. Which communication interfaces are available?
It has 2 industrial Ethernet interfaces, 1 PROFINET interface via BusAdapter, 1 PROFIBUS interface via CM DP module, and 1 RS 485 interface via CM DP module.
4. Does the product include CFast memory?
It is without a CFast memory card; the CFast slot is available.
