Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1512SP F-1 PN |
| Program memory | 600 kbyte |
| Data memory | 2 Mbyte |
| PROFINET interface | 1; PROFINET IRT; 3 ports with integrated switch |
| PROFIBUS interface | 1 via CM DP module; RS 485 |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| SIMATIC Memory Card | Required |
Applications
- PROFINET I/O control: The CPU supports PROFINET IO Controller and PROFINET IO device functions.
- PROFIBUS communication: The CPU supports PROFIBUS DP master and PROFIBUS DP device functions via a CM DP module.
- OPC UA data exchange: The CPU supports OPC UA Client and OPC UA Server functions, including data access.
Key Features
- Central processing unit: CPU 1512SP F-1 PN with 600 kbyte integrated program memory and 2 Mbyte integrated data memory.
- PROFINET interface: 1 PROFINET interface with PROFINET IRT, integrated switch, 3 ports, and 25 ns bit performance; ports 1 and 2 require a BusAdapter.
- PROFIBUS interface: 1 PROFIBUS interface via CM DP module, with RS 485 and transmission rate up to 12 Mbit/s.

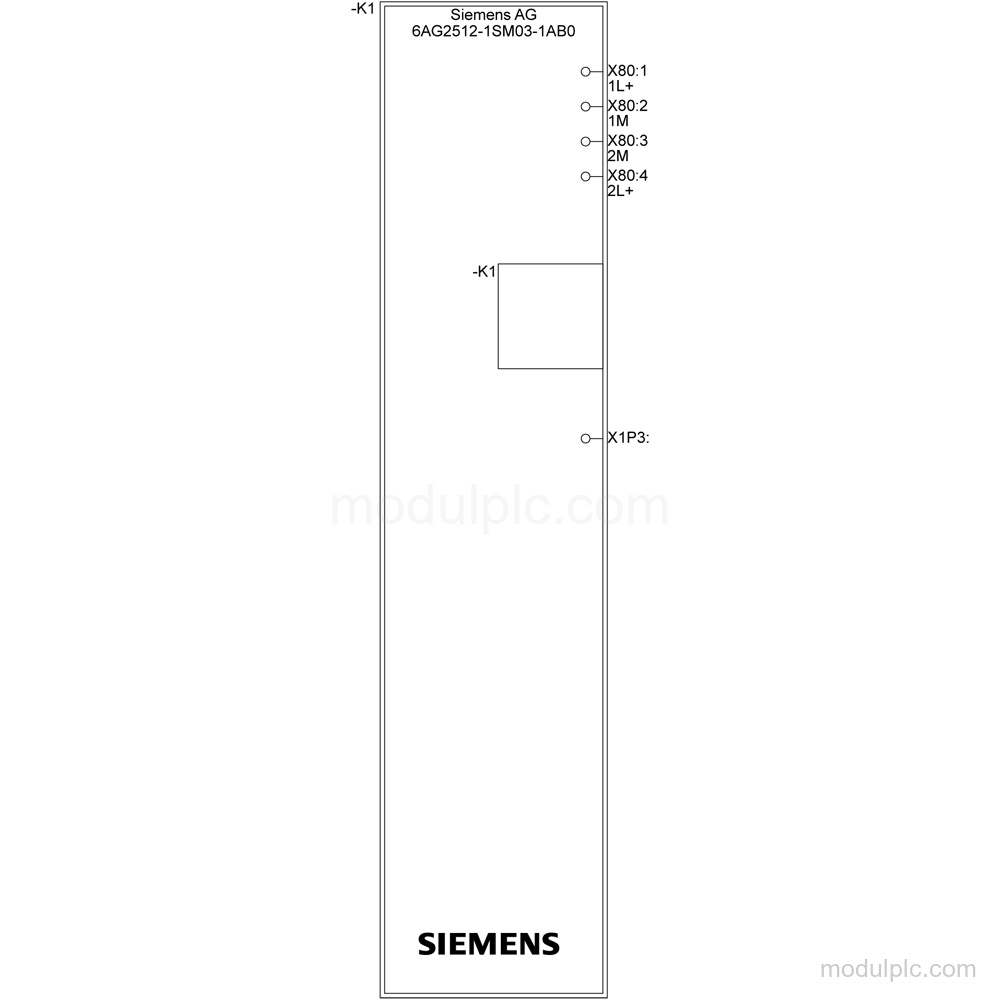

- Power supply: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Reverse polarity protection is provided.

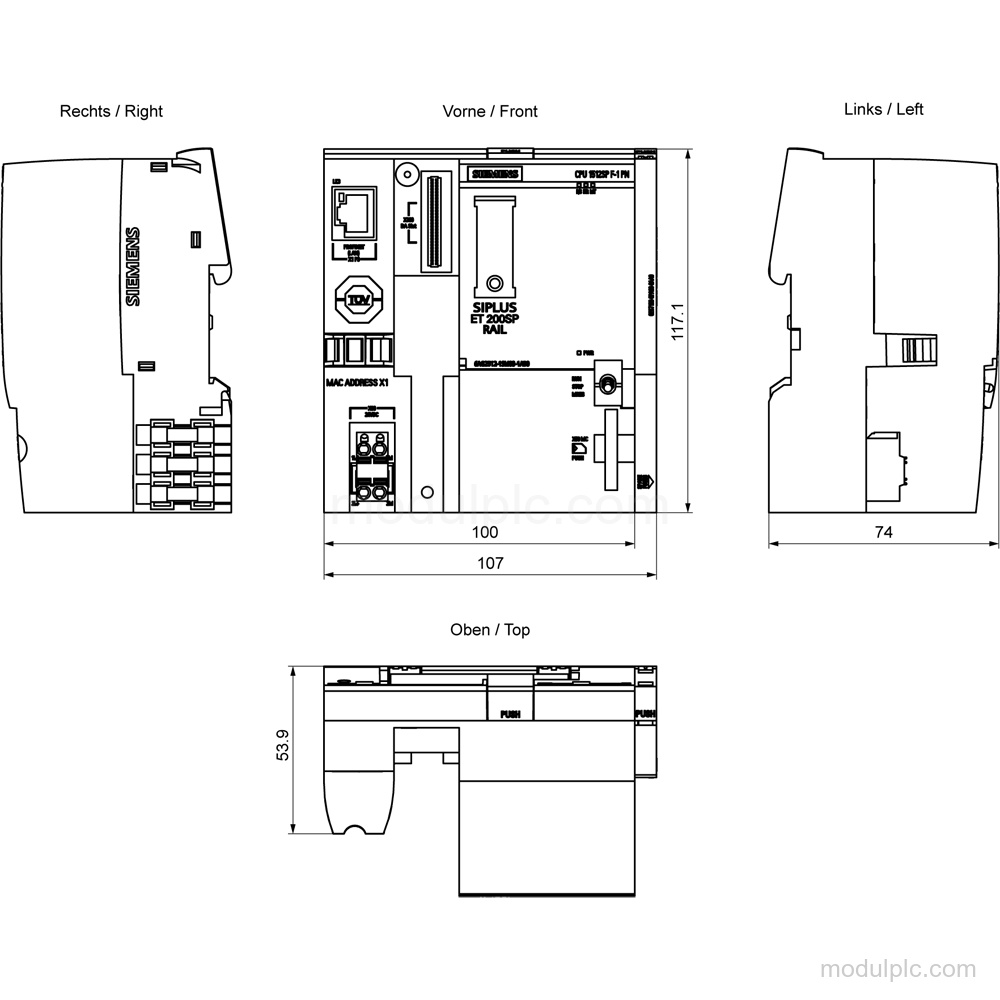

- Memory card and mounting: 1 SIMATIC Memory Card is required. The unit has a rail-based design and measures 100 mm × 117 mm × 75 mm.
- SIPLUS protection: Conformal coating is provided, with protection against fouling according to EN 60664-3, Type 1 protection.
Frequently Asked Questions
1. What is the function of 6AG2512-1SM03-1AB0?
It is a CPU 1512SP F-1 PN central processing unit for PROFINET and PROFIBUS communication functions.
2. How much memory does the CPU have?
It has 600 kbyte integrated memory for the program and 2 Mbyte integrated memory for data.
3. Which interfaces are available?
It has 1 PROFINET interface with 3 ports and 1 PROFIBUS interface via a CM DP module.
4. Is a memory card required?
Yes. A SIMATIC Memory Card is required.
