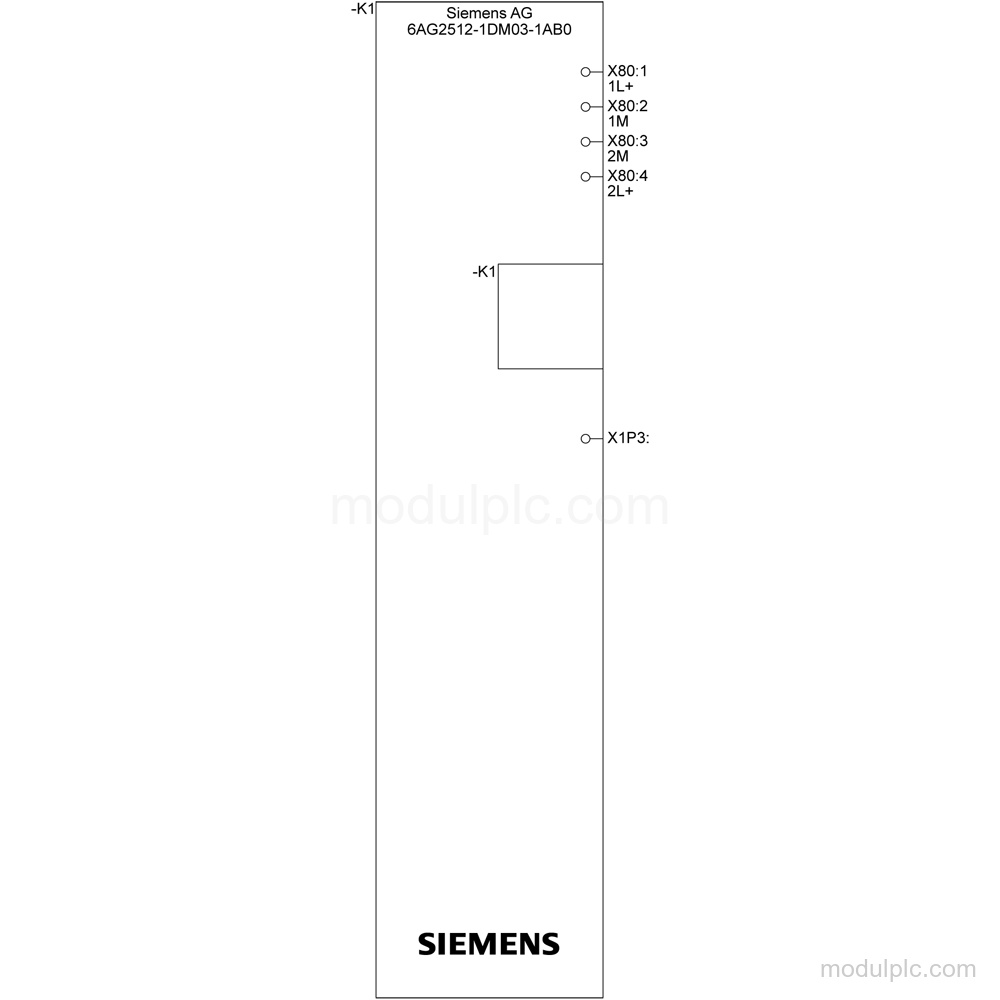

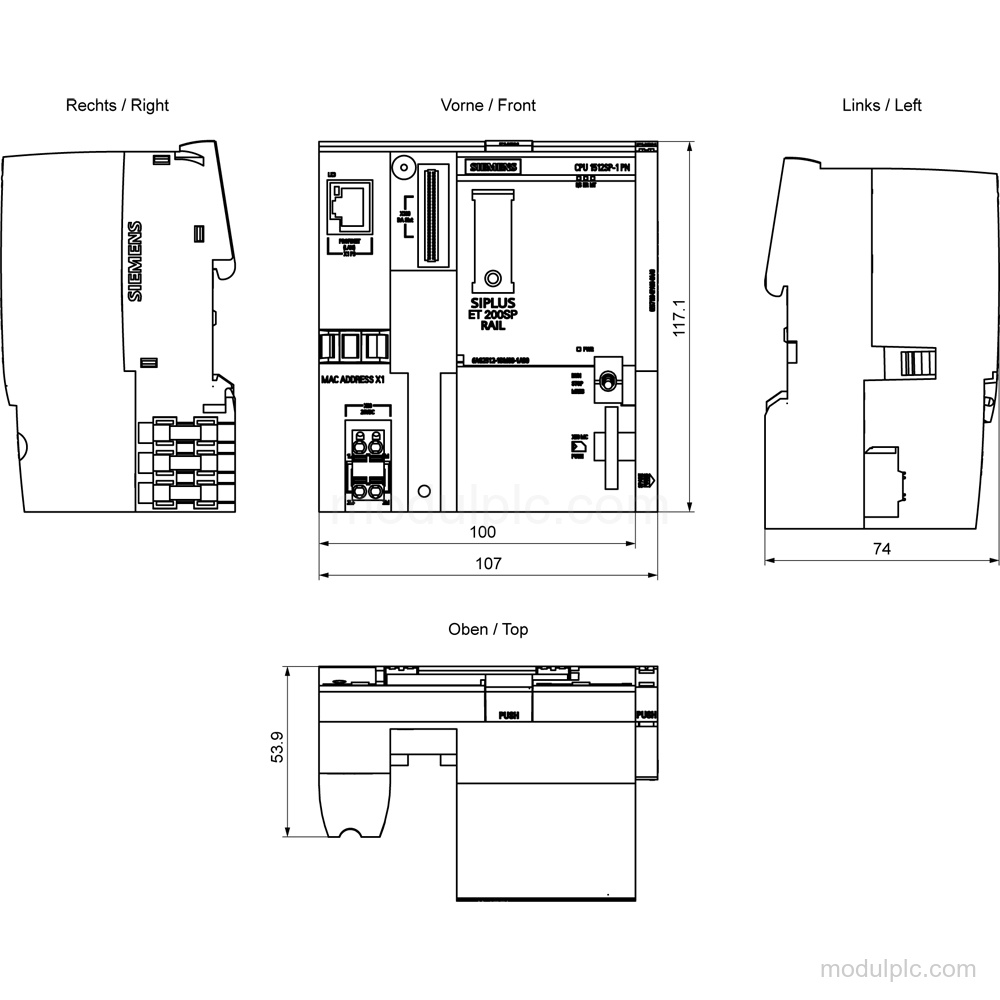

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1512SP-1 PN |
| Program memory | 400 kbyte |
| Data memory | 2 Mbyte |
| PROFINET interface | 1; 3-port switch |
| PROFIBUS interface | 1; via CM DP module |
| Supply voltage | 24 V DC; 19.2 V to 28.8 V |
| SIMATIC Memory Card | Required; 1 slot; up to 32 Gbyte |
Applications
- PROFINET communication: The CPU supports PROFINET IO Controller and IO Device functions, Open IE communication, and direct data exchange.
- PROFIBUS communication: The CPU supports PROFIBUS DP master and device functions via a CM DP module.
- Motion control: The CPU supports Motion Control technology objects, including positioning axes and external encoders.
- Program diagnostics: The CPU provides diagnostic buffers, program alarms, traces, status/control variables, and forcing.
Key Features
- CPU 1512SP-1 PN: Central processing unit based on 6ES7512-1DM03-0AB0 with 400 kbyte program memory and 2 Mbyte data memory.
- PROFINET IRT interface: 1 interface with a 3-port switch, PROFINET IO Controller and IO Device functions, IPv4, and 25 ns bit performance.
- 24 V DC supply: Rated supply voltage: 24 V; permissible range: 19.2 V to 28.8 V; reverse polarity protection is included.
- Memory and processing: SIMATIC Memory Card is required; plug-in load memory supports up to 32 Gbyte, and typical bit-operation time is 6 ns.
- PROFIBUS and Ethernet connectivity: RS 485 PROFIBUS DP master and device functions are available via a CM DP module; Ethernet supports 100 Mbps.
- Railway and environmental design: Conformal coating is provided; horizontal installation supports -40 °C to 60 °C, with +70 °C for 10 min under the stated conditions.
Frequently Asked Questions
1. What is the function of the Siemens 6AG2512-1DM03-1AB0?
It is a SIPLUS ET 200SP CPU 1512SP-1 PN central processing unit with 400 kbyte program memory and 2 Mbyte data memory.
2. Which network interfaces does this CPU provide?
It provides 1 PROFINET interface with a 3-port switch and 1 PROFIBUS interface via a CM DP module.
3. What supply voltage does the CPU require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
4. What memory items are required or included?
A SIMATIC Memory Card is required. The CPU has 1 card slot and supports plug-in load memory up to 32 Gbyte.
