Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type A0 |
| System basis | 6ES7193-6BP20-0DA0 |
| Rated supply voltage | 24 V DC |
| Process terminals | 16 |
| AUX terminals | 10 |
| P1 and P2 bus terminals | 2 |
| Terminal type | Push-in terminal |
| Maximum P1 and P2 bus current | 10 A |
| Maximum AUX bus current | 10 A |
| Maximum process-terminal current | 2 A |
Key Features
- SIPLUS ET 200SP base unit: BU15-P16+A10+2D with conformal coating, based on 6ES7193-6BP20-0DA0.
- BU type and slot: BU type A0 with 1 slot of type A0.

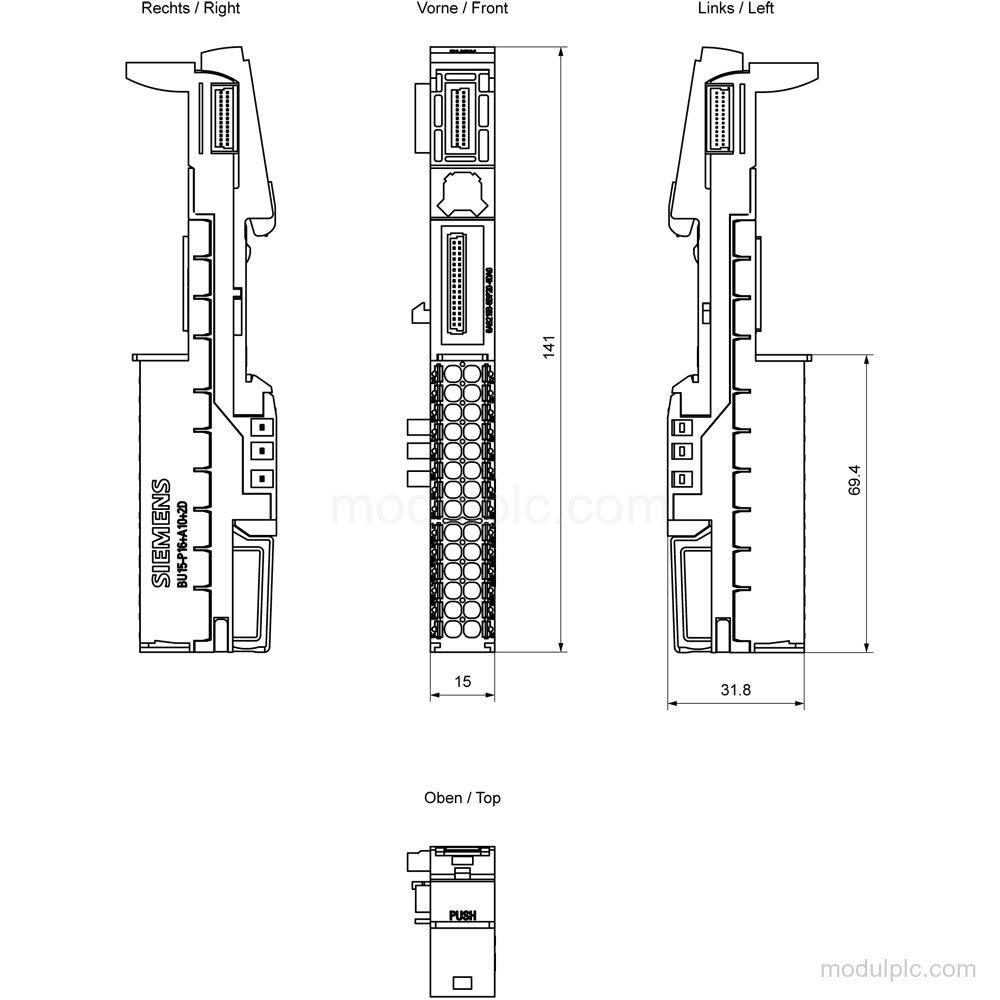

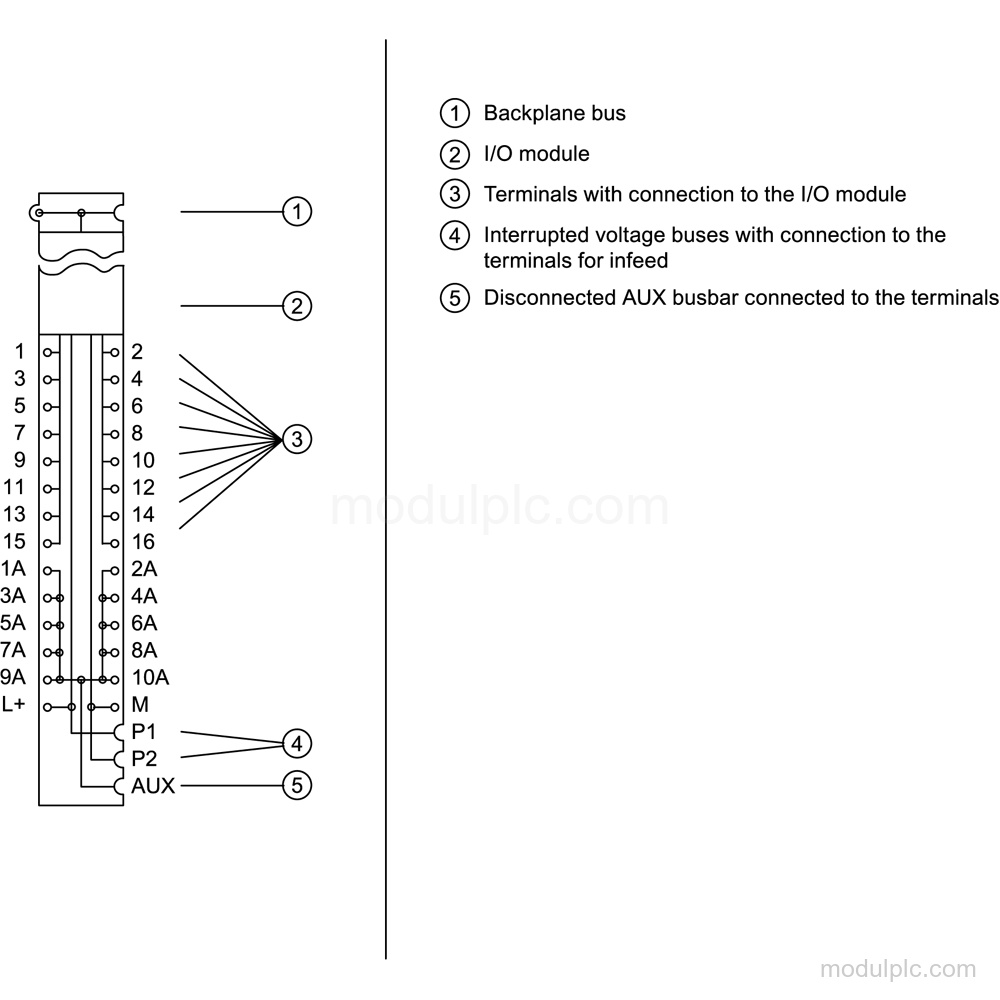

- Push-in terminals: The unit has 16 process terminals, 10 AUX bus terminals, 2 terminals with connection to the P1 and P2 bus, and 0 add-on terminals.
- Supply and current capacity: Rated supply voltage is 24 V DC. Maximum current carrying capacity is 10 A for the P1 and P2 bus, 10 A for the AUX bus, and 2 A for process terminals.
- Potential groups and isolation: A new potential group is formed, it is not continued from the left, and potential groups are separated. Isolation is tested with 750 V DC in a type test.
- Railway installation temperatures: Horizontal installation: -40 °C to 70 °C, with +85 °C for 10 min under OT4, ST1/ST2 according to EN 50155. Vertical installation: -40 °C to 50 °C.
Frequently Asked Questions
1. What is the function of the Siemens 6AG2193-6BP20-4DA0?
It is a SIPLUS ET 200SP BU15-P16+A10+2D base unit based on 6ES7193-6BP20-0DA0, with BU type A0 and 1 slot of type A0.
2. How many terminals does this base unit have?
It has 16 process terminals, 10 AUX bus terminals, 2 terminals connected to the P1 and P2 bus, and 0 add-on terminals.
3. What supply voltage and current capacities apply?
The rated supply voltage is 24 V DC. Maximum current capacity is 10 A for the P1 and P2 bus, 10 A for the AUX bus, and 2 A for process terminals.
4. What terminal type and conductor sizes are supported?
The terminal type is push-in. Supported conductor cross-sections range from 0.14 mm2 (AWG 26) to 2.5 mm2 (AWG 14).
5. What should be verified before requesting a quote?
Verify the required horizontal or vertical mounting position, terminal count, 24 V DC supply, and the applicable installation temperature limits.
