Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | BU type A0 |
| Base unit reference | 6ES7193-6BP20-0BA0 |
| Rated supply voltage | 24 V DC |
| Number of slots | 1; Type A0 |
| Process terminals | 16 |
| AUX terminals | 10 |
| P1 and P2 bus current carrying capacity, max. | 10 A |
| AUX bus current carrying capacity, max. | 10 A |
| Process terminal current carrying capacity, max. | 2 A |
| Terminal type | Push-in terminal |
Key Features

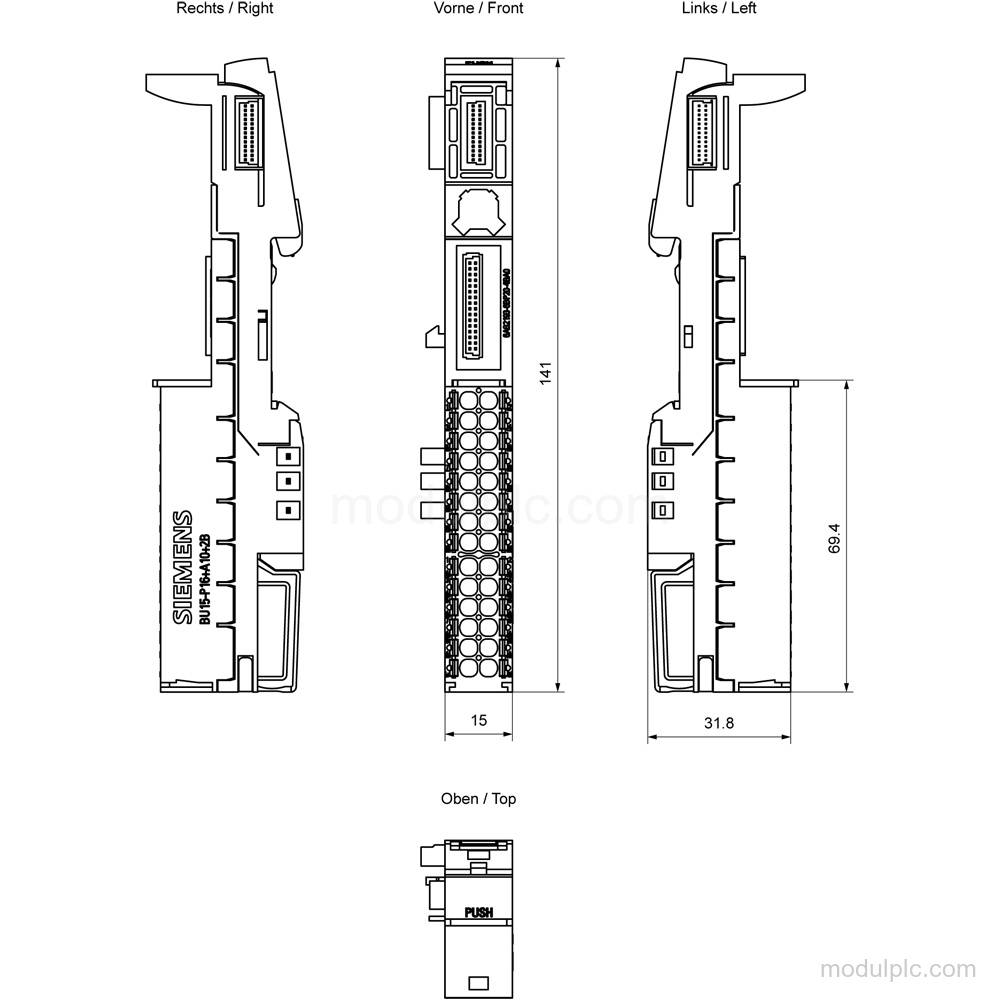

- BU type A0 base unit: SIPLUS ET 200SP base unit based on 6ES7193-6BP20-0BA0, with 1 slot of type A0.

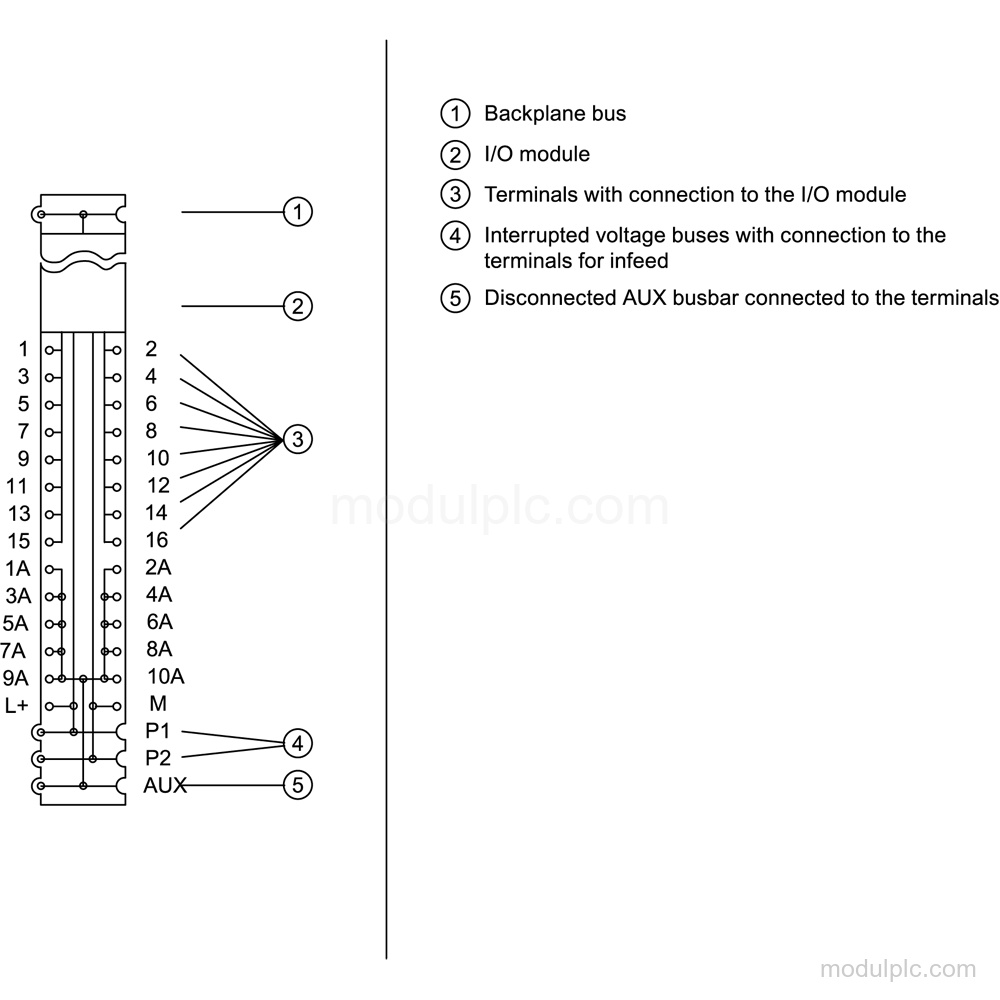

- Terminal capacity: Provides 16 process terminals, 10 AUX terminals, and 2 terminals connected to the P1 and P2 bus.
- Push-in connections: Uses push-in terminals for conductor cross-sections from 0.14 mm2 to 2.5 mm2 (AWG 26 to AWG 14).
- 24 V supply: Rated supply voltage is 24 V DC. External protection requires a 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic.
- Current carrying capacity: Maximum current is 10 A for the P1 and P2 bus, 10 A for the AUX bus, and 2 A for process terminals.
- SIPLUS extreme RAIL design: Has conformal coating and supports horizontal installation from -40 °C to 70 °C, with +85 °C for 10 minutes under OT4, ST1/ST2 according to EN 50155.
Frequently Asked Questions
1. What type of base unit is Siemens 6AG2193-6BP20-4BA0?
It is a SIPLUS ET 200SP BU type A0 base unit based on 6ES7193-6BP20-0BA0, with 1 slot of type A0.
2. How many process and AUX terminals does this base unit have?
It has 16 process terminals and 10 AUX terminals.
3. What supply voltage and external protection are required?
The rated supply voltage is 24 V DC. External protection requires a 24 V DC/10 A miniature circuit breaker with type B or C tripping characteristic.
4. What connection type and conductor sizes are supported?
It uses push-in terminals and supports conductor cross-sections from 0.14 mm2 to 2.5 mm2 (AWG 26 to AWG 14).
5. What mounting temperature limits should be verified?
For horizontal installation, the ambient temperature is -40 °C to 70 °C, with +85 °C for 10 minutes under OT4, ST1/ST2 according to EN 50155. For vertical installation, it is -40 °C to 50 °C.
