Product Overview
Technical Summary
| Parameter | Value |
|---|---|

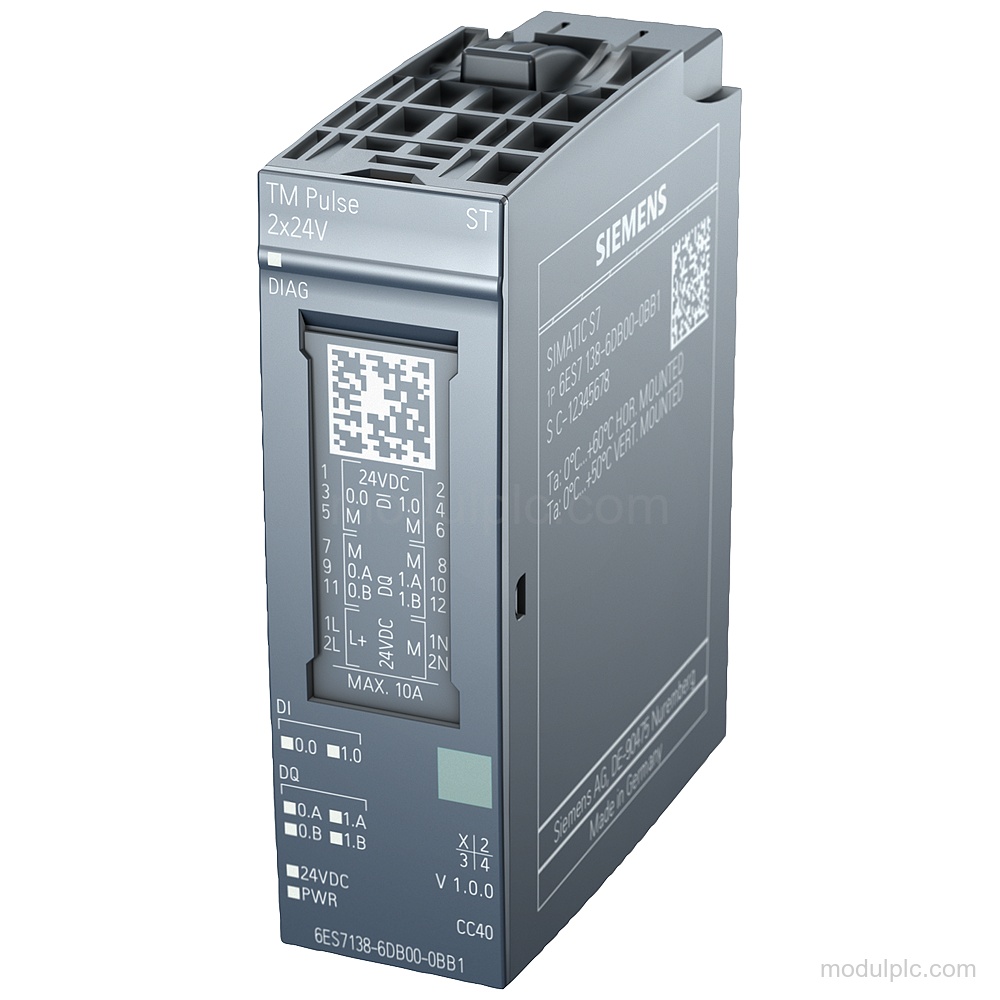

| Module type | TM Pulse 2×24 V |
| Channels | 2; 1 per channel |
| Output functions | PWM output, frequency output, pulse train, and pulse output |
| Rated supply voltage | 24 V DC |
| Output current | 2 A per channel; 4 A per group and per module |
| Digital inputs | 2; 1 per channel |
| Input signal "0" | -5 … +5 V |
| Input signal "1" | +11 to +30V |
| Minimum pulse duration | 1.5 μs; With High Speed output, 10 μs with Standard output |
| Firmware update | Yes |
| BaseUnit | BU type B1 |
| Protection coating | Conformal coating |
Applications
- Proportional-valve control: The module supports connection and current control of a proportional valve.
- DC-motor control: The module supports connection of a DC motor.
Key Features
- Pulse and PWM outputs: 2 parameterizable digital outputs support PWM output, frequency output, pulse train, and pulse output, with 1 output per channel.
- Proportional-valve and DC-motor connection: The module supports connection of a proportional valve and a DC motor, with current measurement and current control.
- 24 V supply and output current: Rated supply voltage is 24 V DC. Output current is 2 A per channel and 4 A per group and per module; 0.1 A with High Speed output, observe derating.
- Digital inputs: 2 parameterizable digital inputs are provided, with 1 input per channel and a 24 V DC rated input voltage.
- Diagnostics and protection: The module has electronic/thermal short-circuit protection for digital outputs, supply-voltage monitoring, diagnostic alarms, and green/red DIAG LED indication.
- Isochronous operation: Isochronous mode is supported with a minimum bus cycle time of 250 μs with 1 channel configuration and 375 μs with 2 channel configuration.
Frequently Asked Questions
1. How many pulse and PWM output channels does 6AG2138-6DB00-1BB1 have?
It has 2 parameterizable digital output channels, with 1 output per channel.
2. What supply voltage does the module use?
The rated supply voltage is 24 V DC. The permissible load-voltage range is 19.2 V to 28.8 V DC.
3. What output current is available per channel?
The output current is 2 A per channel; it is 0.1 A with High Speed output, and derating must be observed.
4. Does it support proportional valves and DC motors?
Yes. It supports connection of a proportional valve and a DC motor, as well as current measurement and current control.
