Product Overview
Technical Summary
| Parameter | Value |
|---|---|

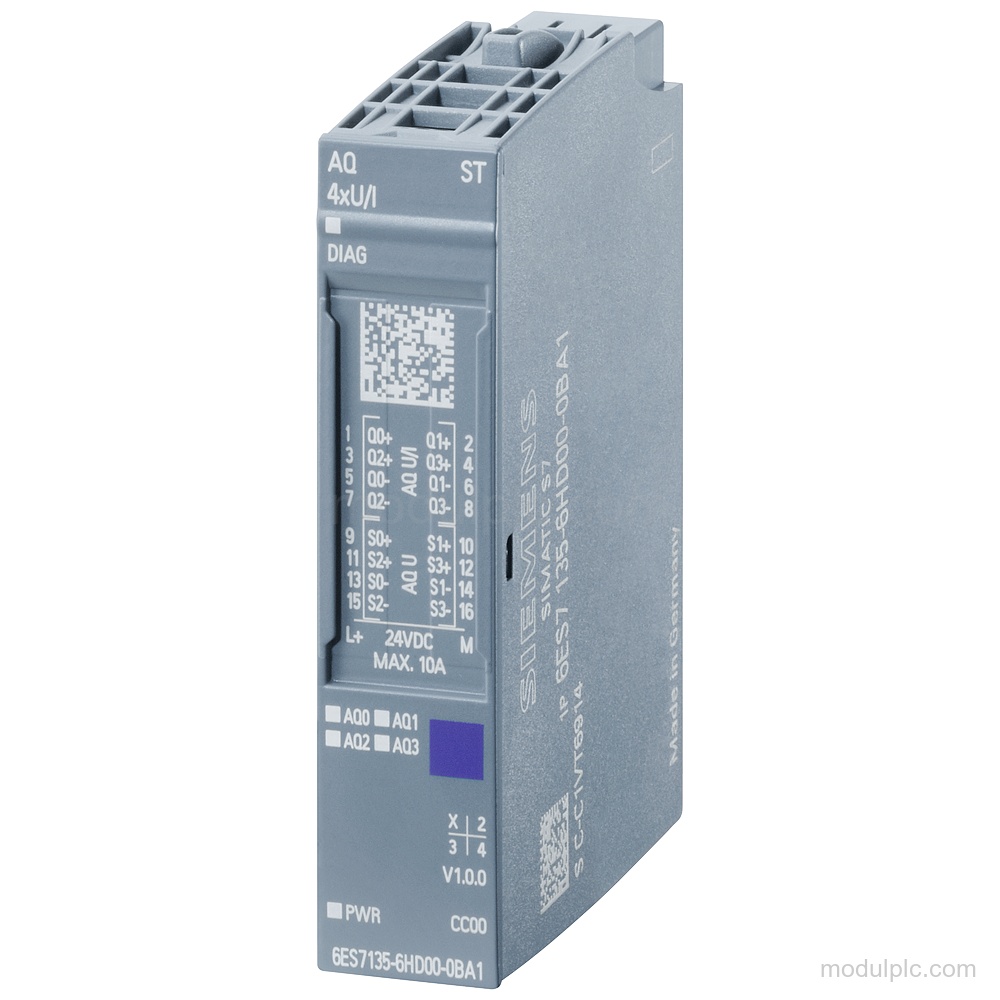

| Module type | SIPLUS ET 200SP AQ 4xU/I ST analog output module |
| Analog outputs | 4; above +60 °C, maximum 2x ±10 V permissible |
| Voltage output ranges | 0 to 10 V; 1 V to 5 V; -5 V to +5 V; -10 V to +10 V |
| Current output ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Maximum resolution | 16 bit including sign |
| Rated supply | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| Cycle time, all channels, min. | 5 ms |
| BaseUnits | BU type A0, A1 |
| Installation temperature | Horizontal: -40 °C to +70 °C, with +85 °C for 10 minutes; vertical: -40 °C to +50 °C |
| Conformal coating | Yes; Class 2 for high reliability |
Applications
- Actuator signal output: Provides voltage or current output signals for connected actuators using supported two-wire or four-wire voltage connections and two-wire current connections.
Key Features
- Analog output channels: 4 analog voltage/current outputs; above +60 °C, a maximum of 2x ±10 V is permissible.
- Supported output ranges: Voltage: 0 to 10 V, 1 V to 5 V, -5 V to +5 V, and -10 V to +10 V. Current: 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
- Supply and protection: Rated supply: 24 V DC; permissible range: 19.2 V to 28.8 V. Reverse polarity protection is provided, with maximum current consumption of 150 mA.
- Connections and load limits: Supports two-wire and four-wire voltage-output connections and two-wire current-output connections. Load impedance is at least 2 kΩ for voltage outputs and up to 500 Ω for current outputs.
- Diagnostics and isolation: Provides module diagnostics, diagnostic alarms, supply-voltage monitoring, group error, overflow/underflow, wire-break diagnosis for current output, and short-circuit diagnosis for voltage output. Channels are isolated from the backplane bus and electronics power supply.
- Installation and dimensions: Suitable for BU type A0 and A1, with horizontal or vertical installation. Dimensions: 15 mm wide, 73 mm high, and 58 mm deep; approximate weight: 31 g.
Frequently Asked Questions
1. What output signals does Siemens 6AG2135-6HD00-4BA1 support?
It supports voltage ranges of 0 to 10 V, 1 V to 5 V, -5 V to +5 V, and -10 V to +10 V, plus current ranges of 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
2. How many analog outputs does the module have?
It has 4 analog voltage/current outputs. Above +60 °C, a maximum of 2x ±10 V is permissible.
3. What supply voltage is required?
The rated supply is 24 V DC, with a permissible range from 19.2 V to 28.8 V DC.
4. Which BaseUnits and connections are supported?
The module is suitable for BU type A0 and A1. It supports two-wire and four-wire voltage-output connections and two-wire current-output connections.
5. What diagnostics are available?
Diagnostics include supply-voltage monitoring, diagnostic alarms, module diagnostics, group error, overflow/underflow, wire-break diagnosis for current output, and short-circuit diagnosis for voltage output.
