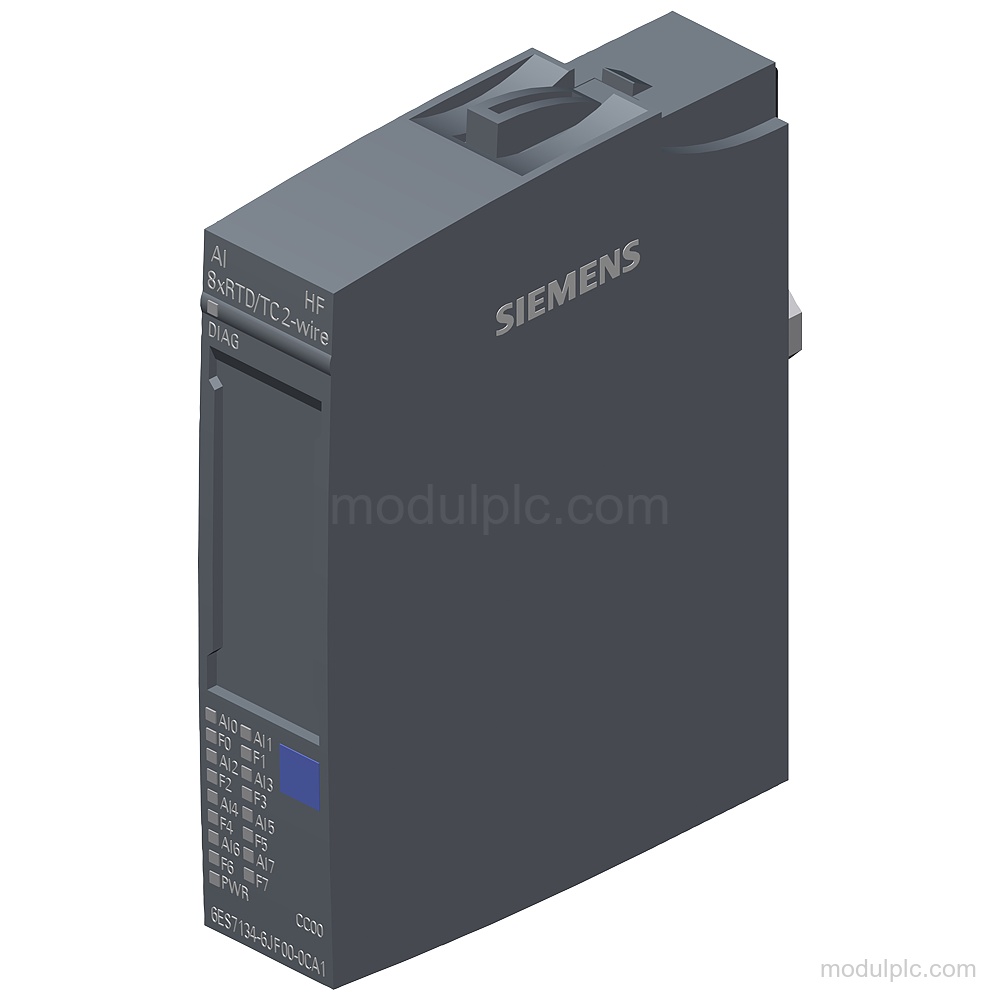

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | AI 8xRTD/TC 2-wire HF |
| Analog inputs | 8 |
| Supported voltage ranges | -1 V to +1 V; -250 mV to +250 mV; -50 mV to +50 mV; -80 mV to +80 mV |
| Resolution | 16 bit including sign |
| Supply | 24 V DC; 19.2 V to 28.8 V permissible range |
| BaseUnits | BU type A0, A1 |
| Diagnostics | Wire break and overflow/underflow channel by channel; group error |
Applications
- Analog signal measurement: Measures voltage, thermocouple, resistance thermometer and resistor signals through 8 analog inputs.
- Channel diagnostics: Detects channel-by-channel wire breaks and overflow/underflow conditions and provides group and supply-voltage diagnostics.
Key Features
- Analog input channels: 8 analog inputs for voltage, thermocouple, resistance thermometer and resistor measurements.
- Signal ranges: Supports -1 V to +1 V, -250 mV to +250 mV, -50 mV to +50 mV and -80 mV to +80 mV voltage ranges, plus thermocouple types B, C, E, J, K, L, N, R, S, T, U and TXK/TXK(L) to GOST.
- Resolution and conversion: Resolution is 16 bit including sign, with 180 / 60 / 50 ms conversion time per channel.
- Diagnostics: Provides channel-by-channel wire-break and overflow/underflow diagnostics, group error, supply-voltage monitoring and diagnostic LEDs.
- Supply and isolation: Rated supply is 24 V DC with a permissible range of 19.2 V to 28.8 V, reverse polarity protection and isolation between channels and the backplane bus.
- Mounting and dimensions: Suitable for BU type A0 and A1 with a Type A mechanical coding element; dimensions are 15 mm × 73 mm × 58 mm.
Frequently Asked Questions
1. How many analog inputs does the 6AG2134-6JF00-1CA1 have?
It has 8 analog inputs.
2. Which signal ranges does this module support?
It supports -1 V to +1 V, -250 mV to +250 mV, -50 mV to +50 mV and -80 mV to +80 V voltage ranges.
3. What resolution does the module provide?
It provides 16 bit including sign.
4. Which BaseUnits can be used for this module?
It is suitable for BU type A0 and A1.
