Product Overview
Technical Summary
| Parameter | Value |
|---|---|

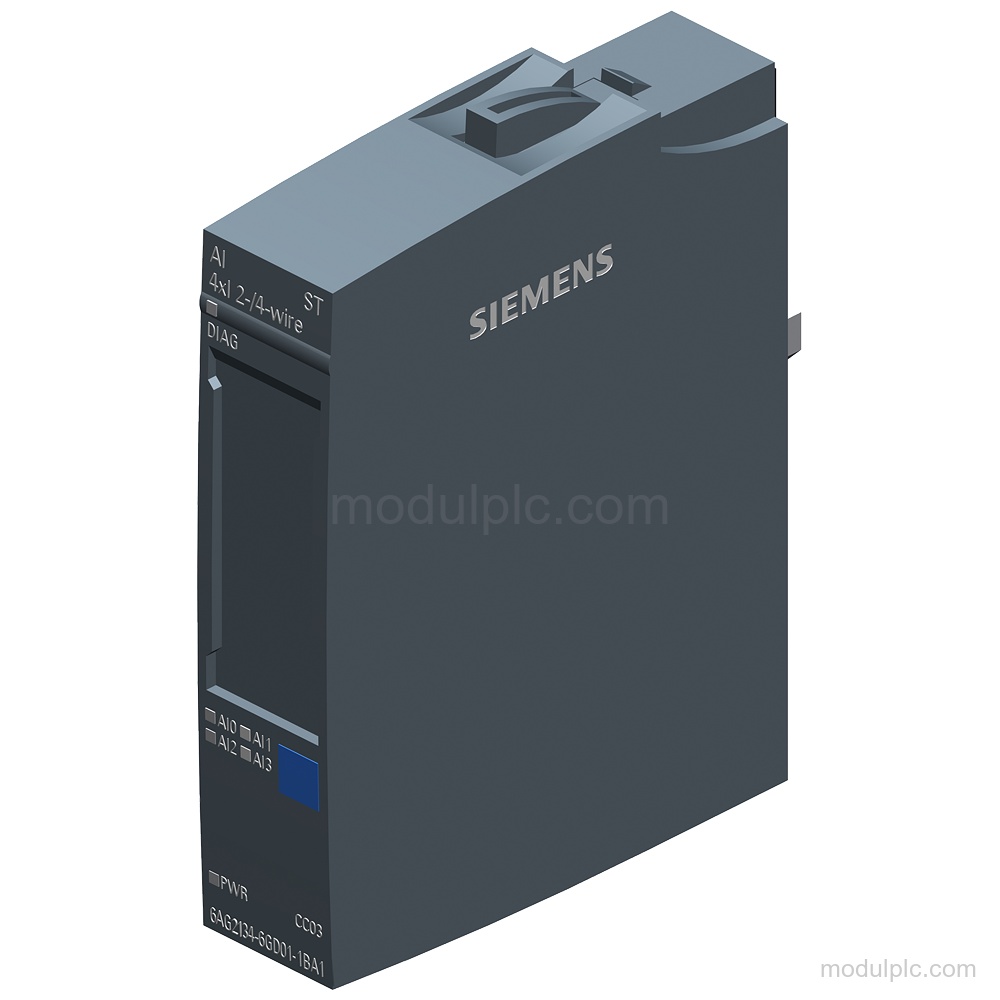

| Module type | AI 4xI 2-/4-wire ST |
| Analog input channels | 4; Differential inputs |
| Supported current input ranges | 0 to 20 mA; -20 mA to +20 mA; 4 mA to 20 mA |
| Resolution | 16 bit including sign |
| Conversion time per channel | 180 / 60 / 50 ms |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Input resistance | 100 Ω; + approx. 0.7 V diode forward voltage in 2-wire operation for 0 to 20 mA and 4 mA to 20 mA |
| Diagnostics | Module diagnostics and diagnostic alarm; supply-voltage monitoring; wire break at 4 mA to 20 mA |
| Operating temperature, horizontal installation | -40 °C to 60 °C; +70 °C for 10 min (OT1, ST1/ST2 acc. to EN 50155) |
Key Features
- Analog inputs: 4 differential analog current inputs with 2-/4-wire transducer connections.
- Supported input ranges: 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
- Resolution and conversion: Maximum resolution is 16 bit including sign; conversion time per channel is 180 / 60 / 50 ms.
- Supply and protection: Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
- Diagnostics: Module diagnostics, diagnostic alarms, supply-voltage monitoring, wire-break detection at 4 mA to 20 mA, and short-circuit detection are supported.
- Installation and dimensions: Usable with BU type A0, A1; dimensions are 15 mm width, 73 mm height, and 58 mm depth.
Frequently Asked Questions
1. How many analog inputs does 6AG2134-6GD01-1BA1 have?
It has 4 differential analog current inputs.
2. Which current input ranges are supported?
The supported ranges are 0 to 20 mA, -20 mA to +20 mA, and 4 mA to 20 mA.
3. What resolution and conversion times are available?
Maximum resolution is 16 bit including sign, and conversion time per channel is 180 / 60 / 50 ms.
4. What supply voltage does the module require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
5. Which BaseUnits can be used for the connections?
BU type A0 and A1 can be used for both 2-wire and 4-wire connections.
