Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1515SP PC2 |
| Processor | Intel Atom E3940, 1.6 GHz, 4 cores |
| Main memory | 8 GB RAM |
| Rated supply voltage | 24 V DC |
| PROFINET interface | 1; via BusAdapter |
| Industrial Ethernet interfaces | 2 |
| USB interfaces | 4; 2x USB 2.0, 2x USB 3.0 on front side |
Key Features
- CPU and memory: CPU 1515SP PC2 with an Intel Atom E3940 processor at 1.6 GHz and 4 cores, plus 8 GB DDR3L RAM.
- Supply and power: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Maximum active power input: 43 W, including ET 200SP modules and USB.

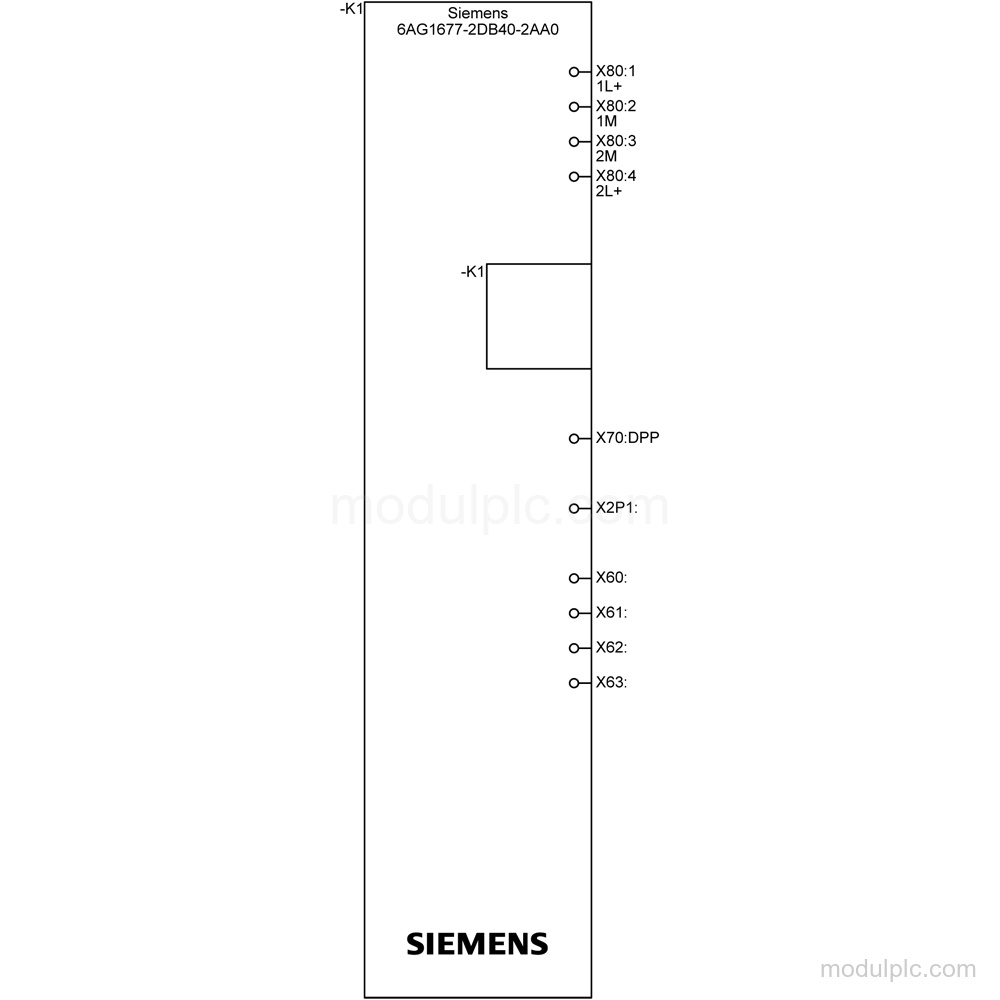

- Communication interfaces: 1 PROFINET interface via BusAdapter, 1 PROFIBUS interface via CM DP module, 1 RS 485 interface via CM DP module, and 2 industrial Ethernet interfaces.
- Ethernet and USB: RJ45 Ethernet includes 2 ports at up to 100 Mbit/s via BusAdapter and 1 integrated port at up to 1 000 Mbit/s. USB: 4 interfaces, with 2x USB 2.0 and 2x USB 3.0 on the front side.

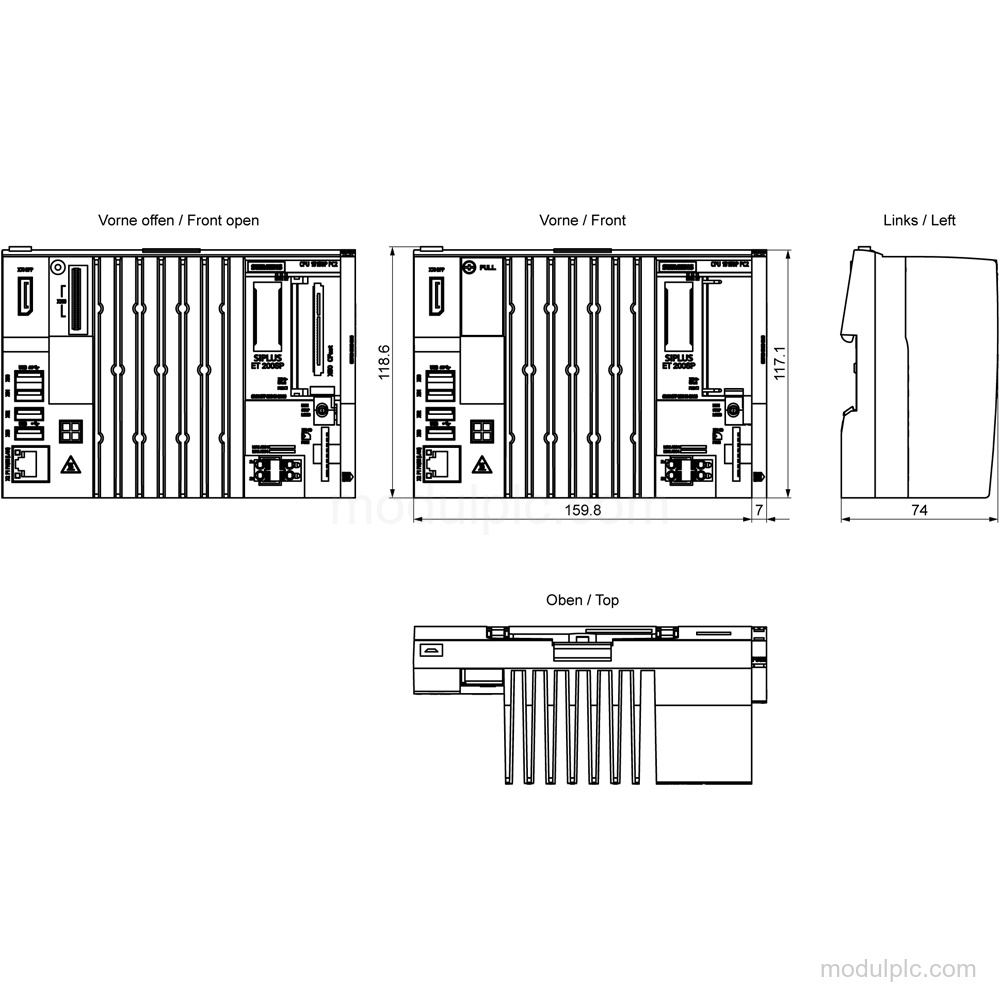

- Installation and dimensions: Dimensions: 160 mm width, 117 mm height and 75 mm depth; approximate weight: 0.83 kg. Maximum installation altitude: 2 000 m above sea level.
- SIPLUS protection: Conformal coating: Class 2 for high reliability according to EN 61086; Type 1 protection against fouling according to EN 60664-3. The supplied plug covers must remain in place over unused interfaces during operation.
Frequently Asked Questions
1. What processor and memory does the 6AG1677-2DB40-2AA0 have?
It has an Intel Atom E3940 processor at 1.6 GHz with 4 cores and 8 GB DDR3L RAM.
2. Which communication interfaces are available?
It has 1 PROFINET interface via BusAdapter, 1 PROFIBUS interface via CM DP module, 1 RS 485 interface via CM DP module and 2 industrial Ethernet interfaces.
3. What is included and excluded from this configuration?
The configuration is supplied without CFast. An SD card is optional for additional mass storage.
