Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1512SP F-1 PN |
| Program memory | 600 kbyte |
| Data memory | 2 Mbyte |
| PROFINET ports | 3; 1 integrated + 2 via BusAdapter |
| PROFIBUS port | 1 RS 485 port via CM DP module |
| Supply voltage | 24 V DC rated; 19.2 V to 28.8 V permissible |
| Current consumption | 0.48 A rated; 0.7 A maximum |
Applications
- Central processing: Central processing of the user program with integrated program and data memory.
- PROFINET communication: PROFINET IO Controller and PROFINET IO Device communication, including PROFINET IRT.
- PROFIBUS communication: PROFIBUS DP master and PROFIBUS DP device communication through the CM DP module.
Key Features
- CPU type and memory: CPU 1512SP F-1 PN with 600 kbyte integrated program memory and 2 Mbyte integrated data memory.
- PROFINET interface: 1 PROFINET interface with an integrated switch and 3 ports: 1 integrated port plus 2 via BusAdapter.
- PROFIBUS interface: RS 485 interface via CM DP module, with 1 port and PROFIBUS DP master and device functions.

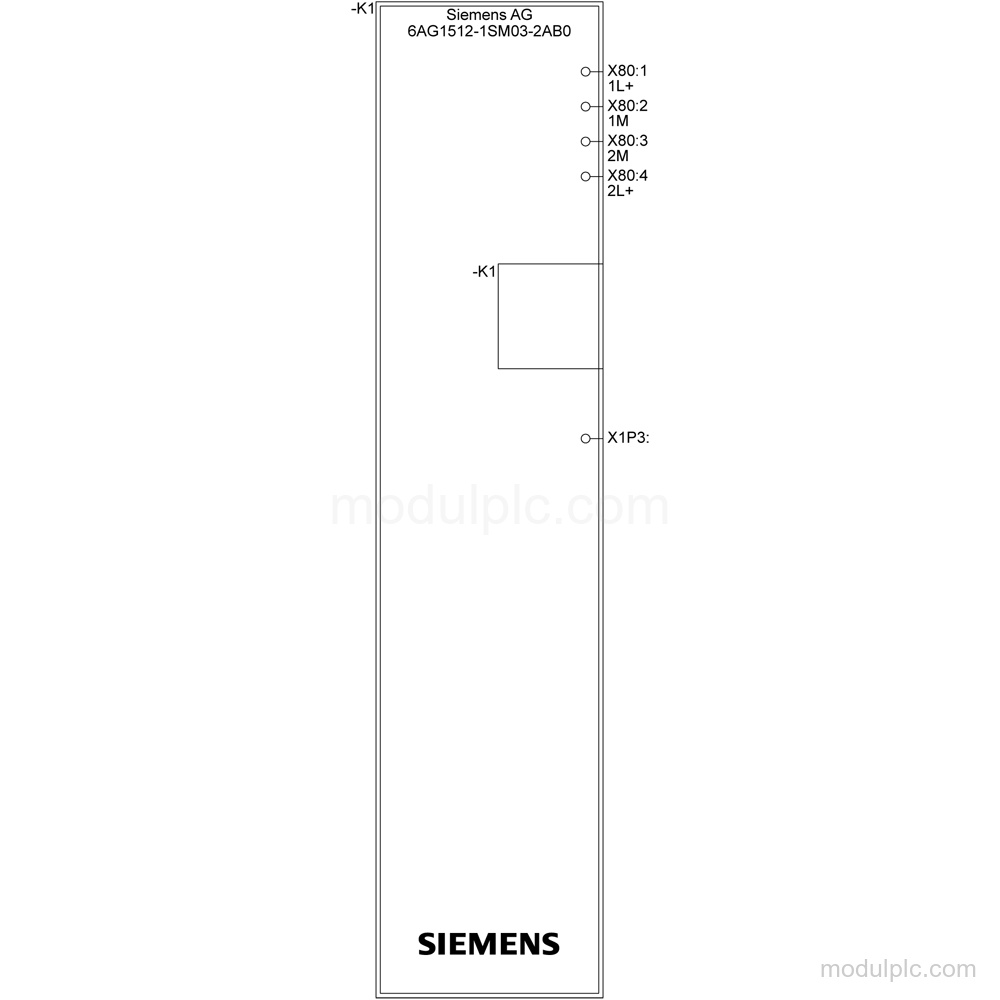

- Supply and current: 24 V DC rated supply, permissible from 19.2 V to 28.8 V; current consumption is 0.48 A rated and 0.7 A maximum.
- Processing and diagnostics: Typical processing times are 6 ns for bit operations, 7 ns for word operations, 9 ns for fixed point arithmetic, and 37 ns for floating point arithmetic. A diagnostic buffer stores up to 1 000 entries.

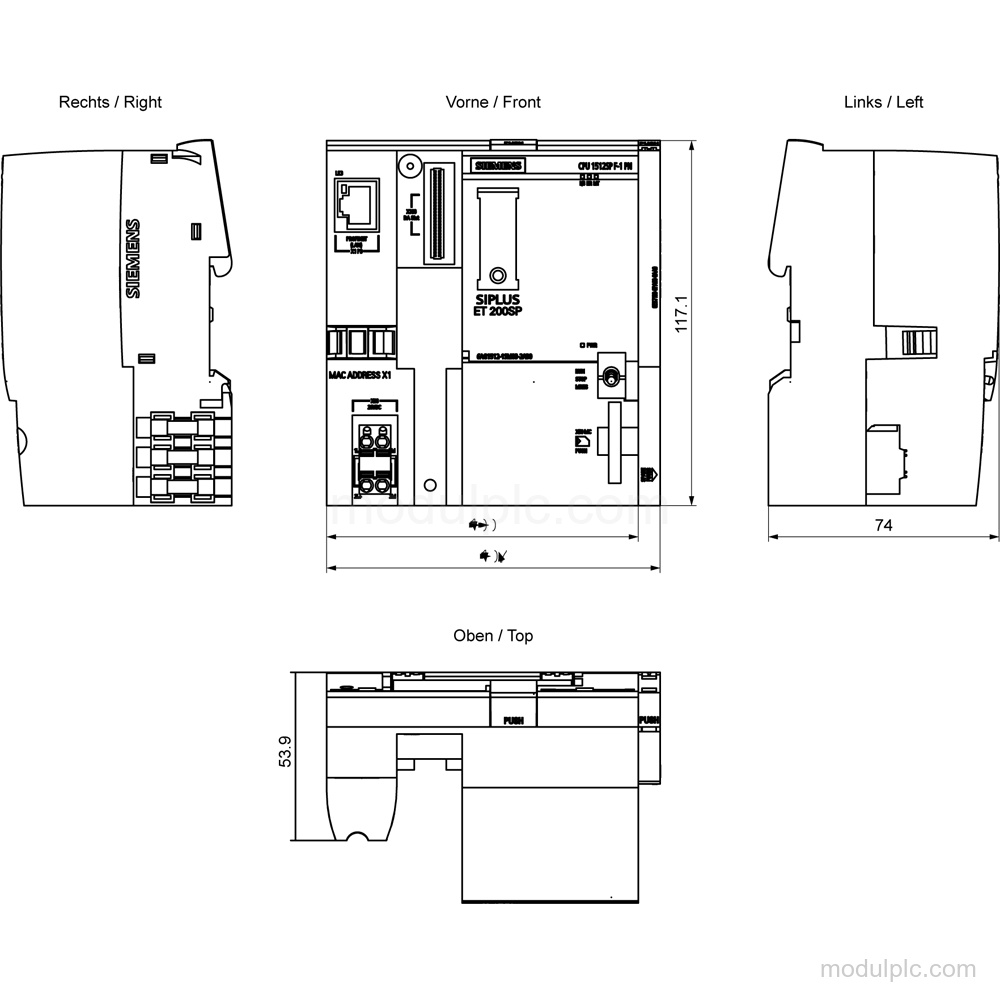

- Installation and environment: Dimensions are 100 mm wide, 117 mm high, and 75 mm deep. During operation, the ambient range is -40 °C to 60 °C for horizontal installation and -40 °C to 50 °C for vertical installation.
Frequently Asked Questions
1. What is the function of the Siemens 6AG1512-1SM03-2AB0?
It is a SIPLUS ET 200SP CPU 1512SP F-1 PN central processing unit with integrated program and data memory.
2. How many PROFINET ports does this CPU have?
It has 3 PROFINET ports: 1 integrated port and 2 ports via BusAdapter.
3. What supply voltage does the CPU require?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V to 28.8 V.
4. What interfaces are provided?
It provides 1 PROFINET interface and 1 RS 485 PROFIBUS interface via a CM DP module.
