Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1512SP-1 PN |
| Program work memory | 400 kbyte |
| Data work memory | 2 Mbyte |
| PROFINET interfaces | 1; 3 ports with integrated switch |
| PROFIBUS interfaces | 1; via CM DP module |
| Rated supply voltage | 24 V DC |
| PROFINET IO Devices, max. | 128 |
| PROFIBUS DP devices, max. | 125 |
| Operating temperature, horizontal installation | -40 °C to 60 °C |
Applications
- Central processing: Provides central processing for the SIMATIC ET 200SP CPU 1512SP-1 PN.
- PROFINET communication: Operates as a PROFINET IO Controller or PROFINET IO Device.
- PROFIBUS communication: Operates as a PROFIBUS DP master or PROFIBUS DP device via the CM DP module.
- OPC UA communication: Provides OPC UA Client and OPC UA Server functions.
Key Features
- CPU memory: 400 kbyte integrated work memory for the program and 2 Mbyte for data; SIMATIC memory card required.
- PROFINET interface: 1 PROFINET interface with a 3-port switch, PROFINET IO Controller and PROFINET IO Device functions.
- PROFIBUS interface: 1 RS 485 interface via CM DP module, supporting PROFIBUS DP master and PROFIBUS DP device functions.

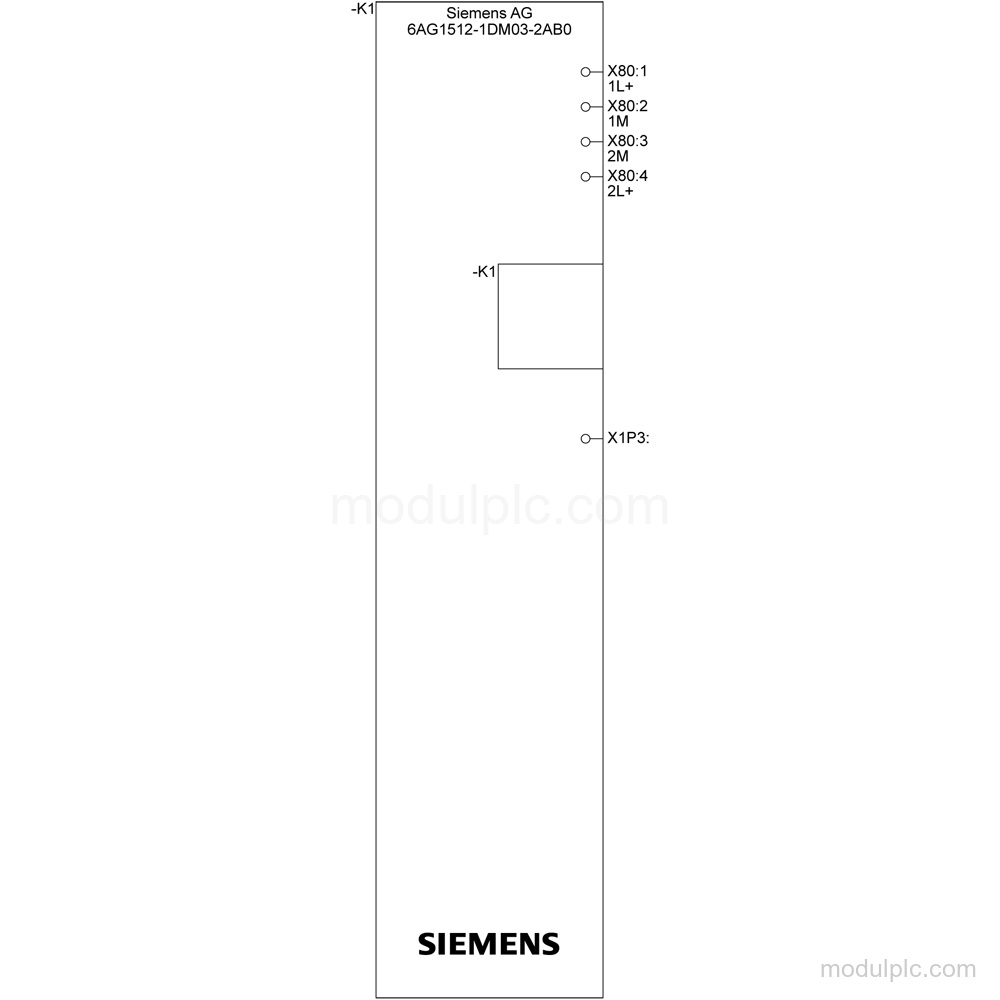

- Supply and protection: 24 V DC rated supply, permissible from 19.2 V DC to 28.8 V DC, with reverse polarity protection.

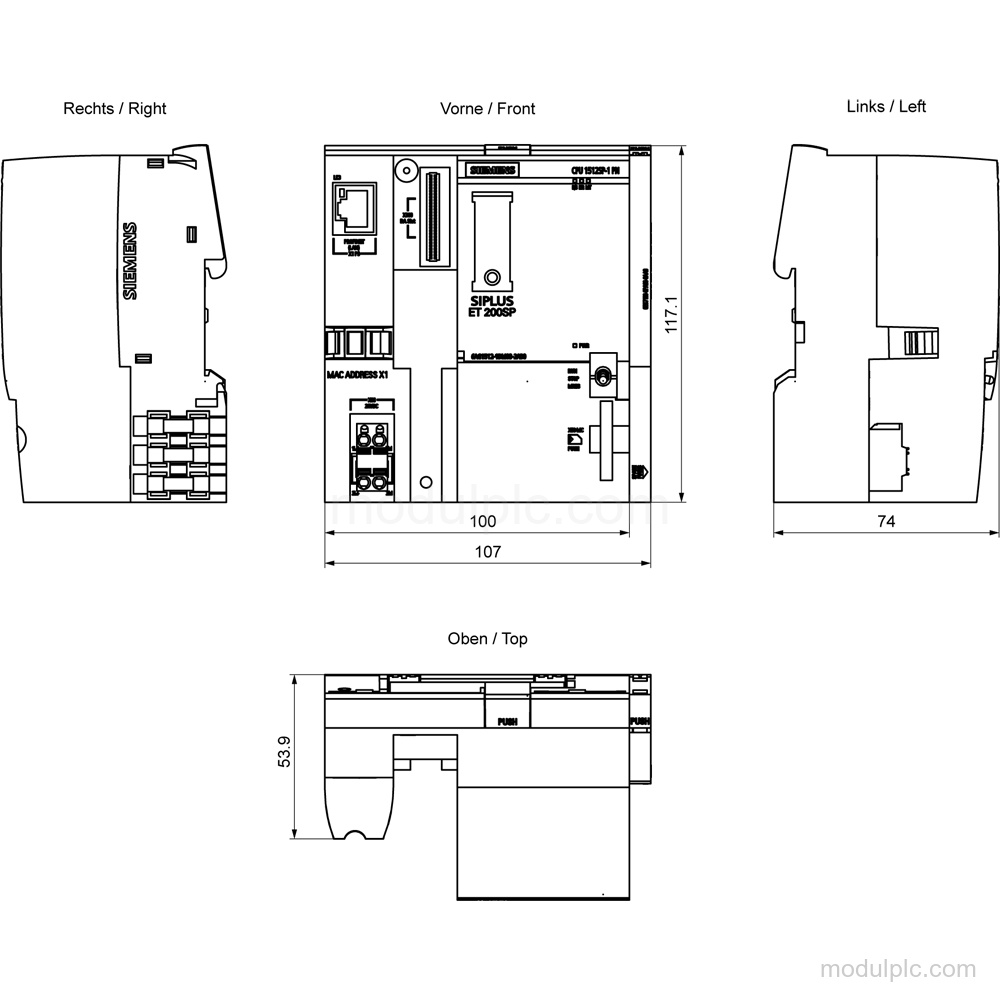

- Installation and dimensions: Dimensions: 100 mm width, 117 mm height and 75 mm depth; weight approximately 265 g.
- Conformal coating: Conformal coating for printed circuit board assemblies: Class 2 for high reliability; Type 1 protection against fouling.
Frequently Asked Questions
1. What is the function of Siemens 6AG1512-1DM03-2AB0?
It is a SIPLUS ET 200SP CPU 1512SP-1 PN central processing unit.
2. How much work memory does the CPU have?
It has 400 kbyte of integrated work memory for the program and 2 Mbyte for data.
3. Which network interfaces are available?
It has 1 PROFINET interface with 3 ports and 1 RS 485 interface via a CM DP module.
4. What supply voltage does it use?
The rated supply voltage is 24 V DC, with a permissible range from 19.2 V DC to 28.8 V DC.
5. What are the mounting dimensions?
The dimensions are 100 mm wide, 117 mm high and 75 mm deep; weight is approximately 265 g.
