Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1510SP F-1 PN |
| Program work memory | 300 kbyte |
| Data work memory | 1 Mbyte |
| PROFINET interfaces | 1 |
| PROFINET ports | 3; 1 integrated + 2 via BusAdapter |
| PROFIBUS interface | 1; via CM DP module |
| Rated supply voltage | 24 V DC |
| Permissible supply voltage | 19.2 V to 28.8 V DC |
| Rated current consumption | 0.48 A |
| Maximum current consumption | 0.7 A |
Applications
- PROFINET I/O control: The CPU supports PROFINET IO Controller and PROFINET IO Device operation.
- PROFIBUS DP control: The CPU supports PROFIBUS DP master and PROFIBUS DP device operation via a CM DP module.
- Motion Control: The CPU supports Motion Control technology objects and provides 1 120 available Motion Control resources.
Key Features
- CPU 1510SP F-1 PN: SIPLUS ET 200SP central processing unit based on 6ES7510-1SK03-0AB0, with conformal coating.
- Work memory: 300 kbyte for the program and 1 Mbyte for data.
- PROFINET interface: 1 PROFINET interface with IRT, an integrated 3-port switch and 25 ns bit performance.

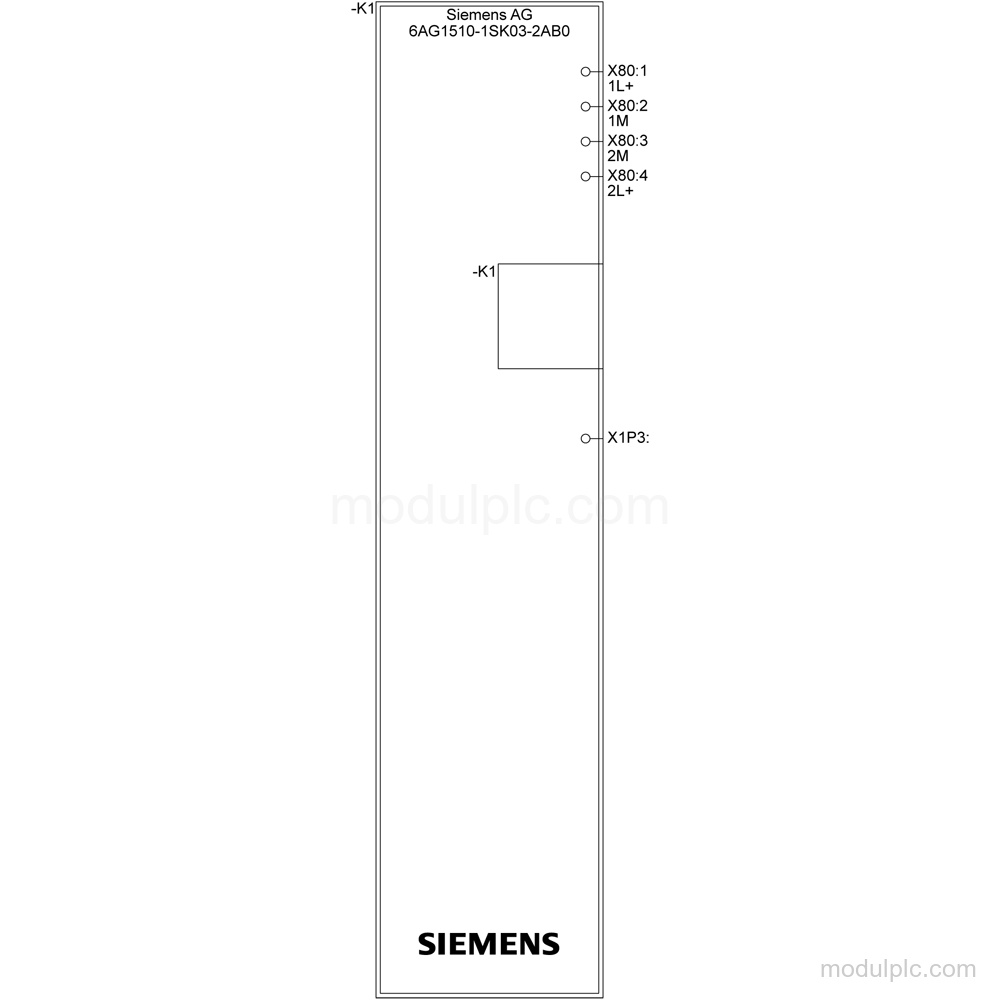

- Supply and current: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC. Rated current consumption: 0.48 A; maximum: 0.7 A.
- Fail-safe and diagnostics: Performance level PLe according to ISO 13849-1 and SIL 3 according to IEC 61508. Diagnostic buffer: 1 000 entries, including 500 powerfail-proof entries.

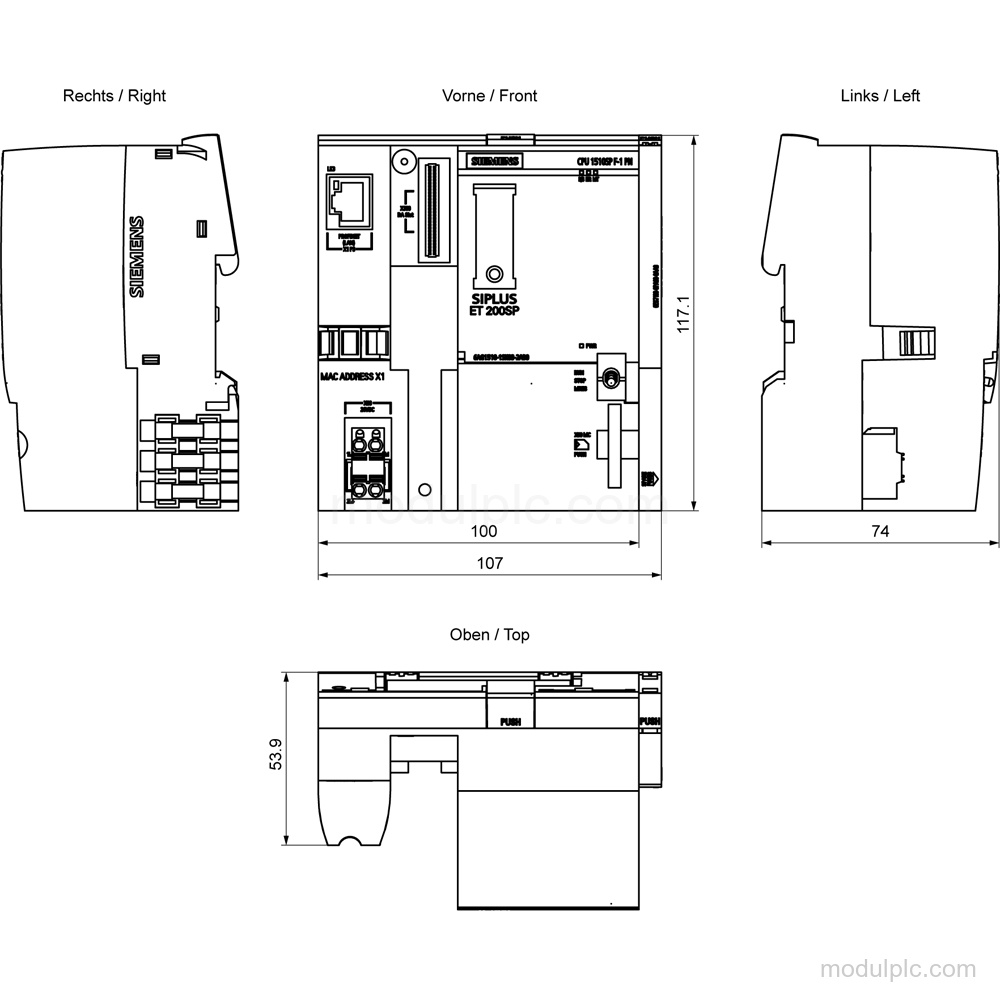

- Installation conditions: Ambient temperature during operation: -40 °C to 60 °C for horizontal installation and -40 °C to 50 °C for vertical installation.
Frequently Asked Questions
1. What is the function of the Siemens 6AG1510-1SK03-2AB0?
It is a SIPLUS ET 200SP CPU 1510SP F-1 PN central processing unit with PROFINET IO Controller and PROFINET IO Device support.
2. Which interfaces and protocols does this CPU support?
It has 1 PROFINET interface with 3 ports, plus an RS 485 interface via a CM DP module. Supported protocols include PROFINET, PROFIBUS DP, SIMATIC communication, Open IE communication, OPC UA and MODBUS TCP.
3. What must be included or verified for this configuration?
A SIMATIC Memory Card is required, and a BusAdapter is required for ports 1 and 2. Verify the required BusAdapter and CM DP module before inquiry.
