Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1510SP-1 PN |
| Program work memory | 200 kbyte |
| Data work memory | 1 Mbyte |
| Supply voltage, rated | 24 V DC |
| Supply voltage, permissible | 19.2 V to 28.8 V DC |
| PROFINET interfaces | 1 |
| PROFINET ports | 3; 1 integrated + 2 via BusAdapter |
| PROFINET update time, IRT, 250 μs send cycle | 250 μs to 4 ms |
| Connectable IO Devices, max. | 128 |
Applications
- PROFINET I/O control: The CPU supports PROFINET IO Controller and PROFINET IO device functions for controlling and exchanging data with PROFINET I/O devices.
- PROFIBUS DP communication: The CPU supports PROFIBUS DP master and DP device functions via a CM DP module.
Key Features
- CPU and memory: CPU 1510SP-1 PN with 200 kbyte integrated work memory for the program and 1 Mbyte for data; plug-in SIMATIC Memory Card required.
- PROFINET interface: 1 PROFINET interface with PROFINET IRT, integrated switch, 3 ports, 25 ns bit performance, and PROFINET IO Controller and IO device functions.

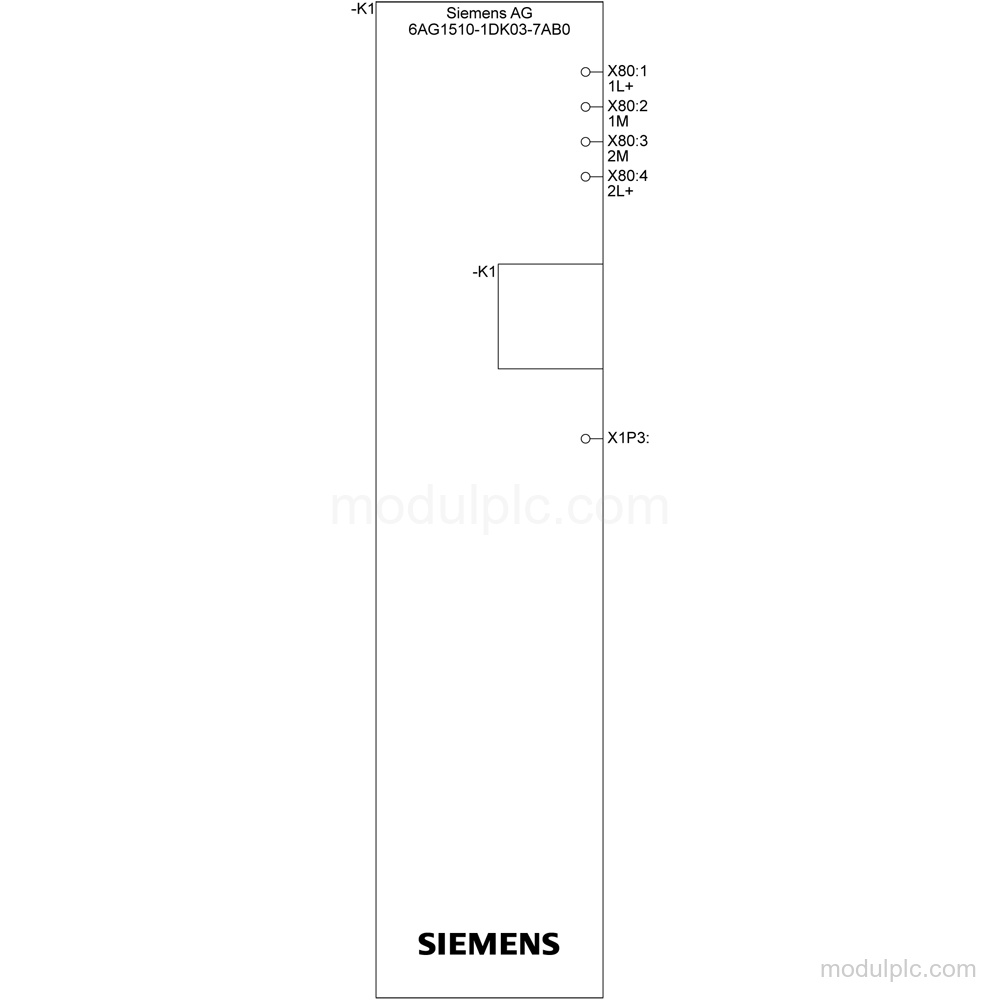

- Supply and current: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V; current consumption is 0.51 A rated and 0.7 A maximum.
- Communication interfaces: RJ 45 Ethernet is available, with optical interface via BusAdapter; RS 485 is available via CM DP module, with transmission up to 12 Mbit/s.
- Diagnostics and protection: I&M0 to I&M3, SysLog, diagnostic buffer with up to 1 000 entries, RUN/STOP, ERROR and MAINT LEDs, Secure Boot, and signed firmware update.

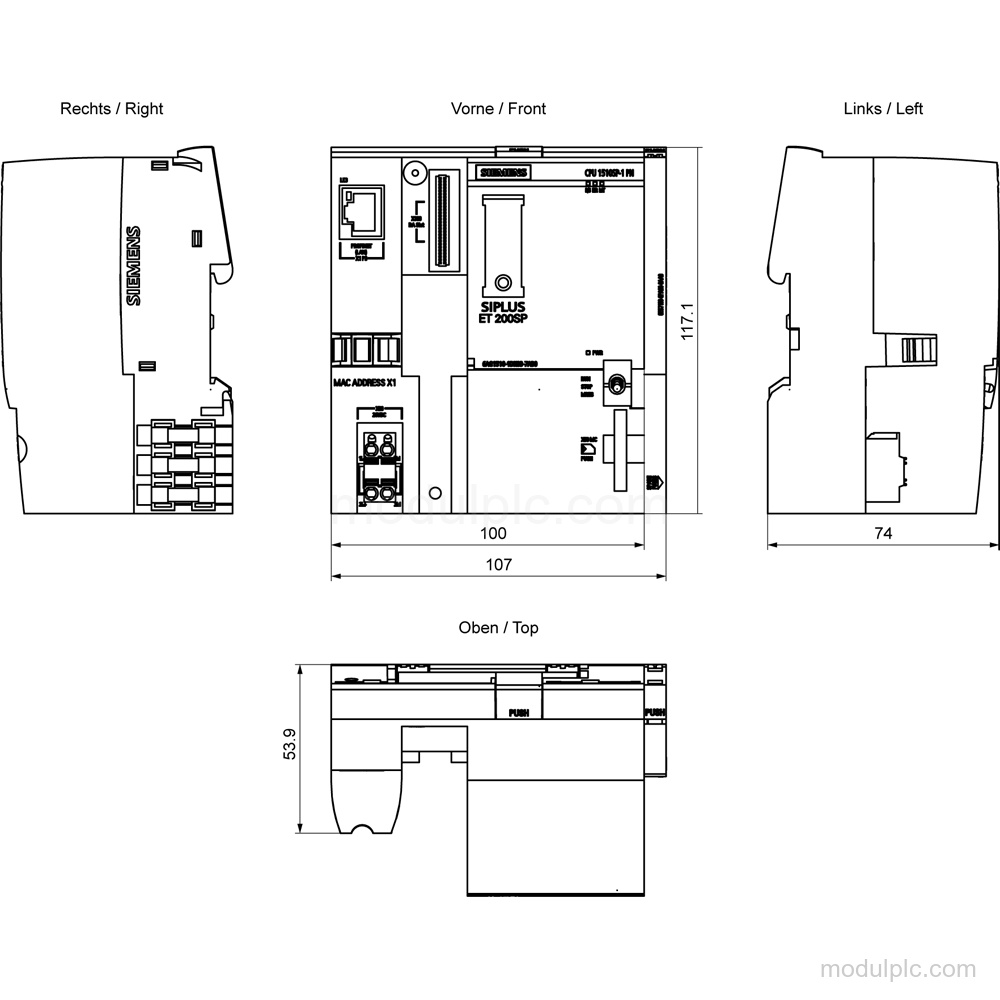

- Installation and environment: Dimensions are 100 mm × 117 mm × 75 mm and weight is approximately 415 g. Horizontal operation is supported from -40 °C to 70 °C; vertical operation from -40 °C to 50 °C.
Frequently Asked Questions
1. What type of CPU is Siemens 6AG1510-1DK03-7AB0?
It is a SIPLUS ET 200SP CPU 1510SP-1 PN with 200 kbyte program work memory and 1 Mbyte data work memory.
2. What PROFINET connections does this CPU provide?
It has 1 PROFINET interface and 3 ports: 1 integrated port plus 2 via BusAdapter. BusAdapter is required for ports 1 and 2.
3. What supply voltage does the CPU require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
4. Which memory card is included with the configuration?
It is without a SIMATIC Memory Card; a SIMATIC Memory Card is required and is plug-in, up to 32 Gbyte.
5. What mounting temperatures should be verified before inquiry?
For horizontal installation, the range is -40 °C to 70 °C. For vertical installation, the range is -40 °C to 50 °C.
