Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 1510SP-1 PN |
| Program work memory | 200 kbyte |
| Data work memory | 1 Mbyte |
| PROFINET interfaces | 1 |
| PROFINET ports | 3; 1 integrated + 2 via BusAdapter |
| Rated supply voltage | 24 V DC |
| Supply voltage range | 19.2 V to 28.8 V DC |
| PROFINET IO Controller | Yes |
| PROFINET IO Device | Yes |
| Operating temperature | -40 °C to +60 °C horizontal; -40 °C to +50 °C vertical |
Applications
- Central processing: Provides central processing for the ET 200SP CPU system.
- PROFINET communication: Operates as a PROFINET IO Controller and PROFINET IO Device.
- OPC UA communication: Provides OPC UA Client and OPC UA Server functions, including data access and method calls.
- PROFIBUS communication: Operates as a PROFIBUS DP master and PROFIBUS DP device via a CM DP module.
Key Features
- CPU 1510SP-1 PN: Central processing unit based on 6ES7510-1DK03-0AB0 with conformal coating.
- Memory: Integrated work memory: 200 kbyte for programs and 1 Mbyte for data. SIMATIC Memory Card is required; plug-in load memory is up to 32 Gbyte.
- PROFINET interface: 1 PROFINET interface with PROFINET IRT, an integrated switch, and 3 ports: 1 integrated plus 2 via BusAdapter.

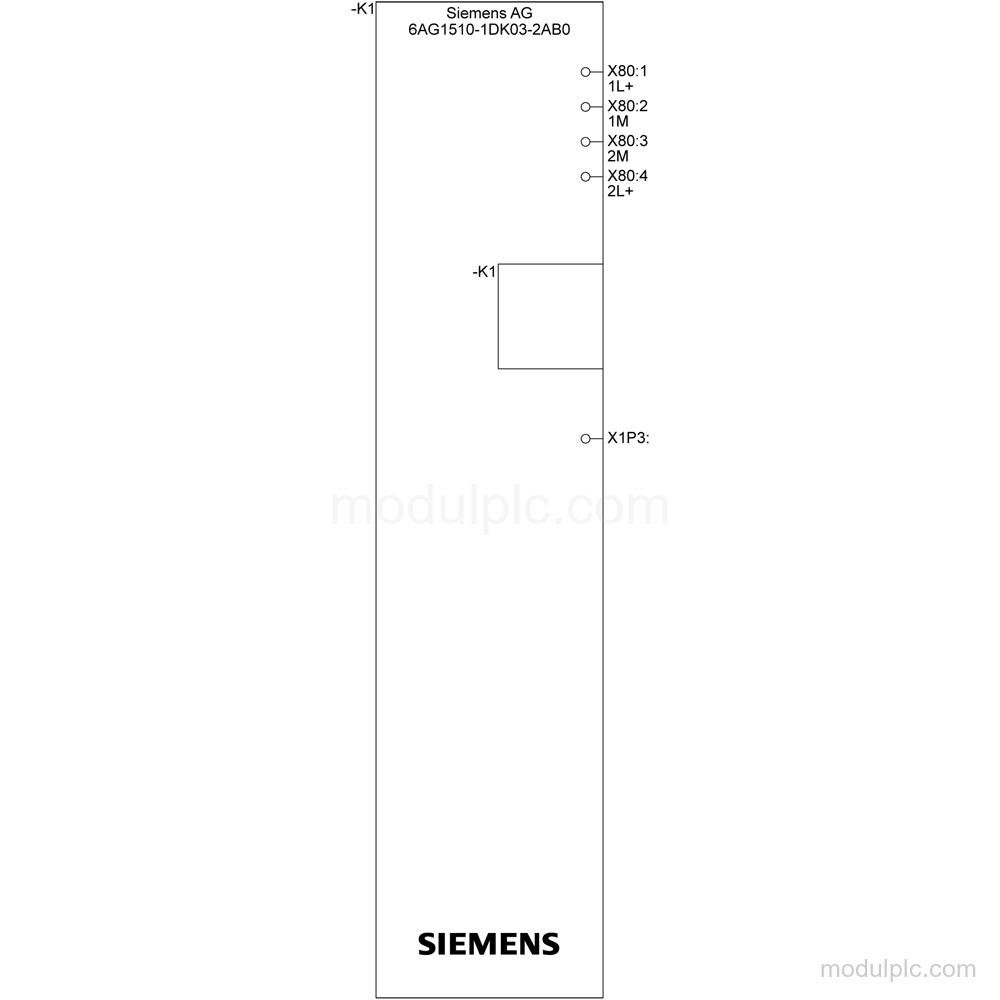

- Supply and protection: Rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC and reverse polarity protection.
- Diagnostics and security: RUN/STOP, ERROR, MAINT, PWR, and LINK TX/RX indications are available. Secure Boot and signed firmware update are supported.

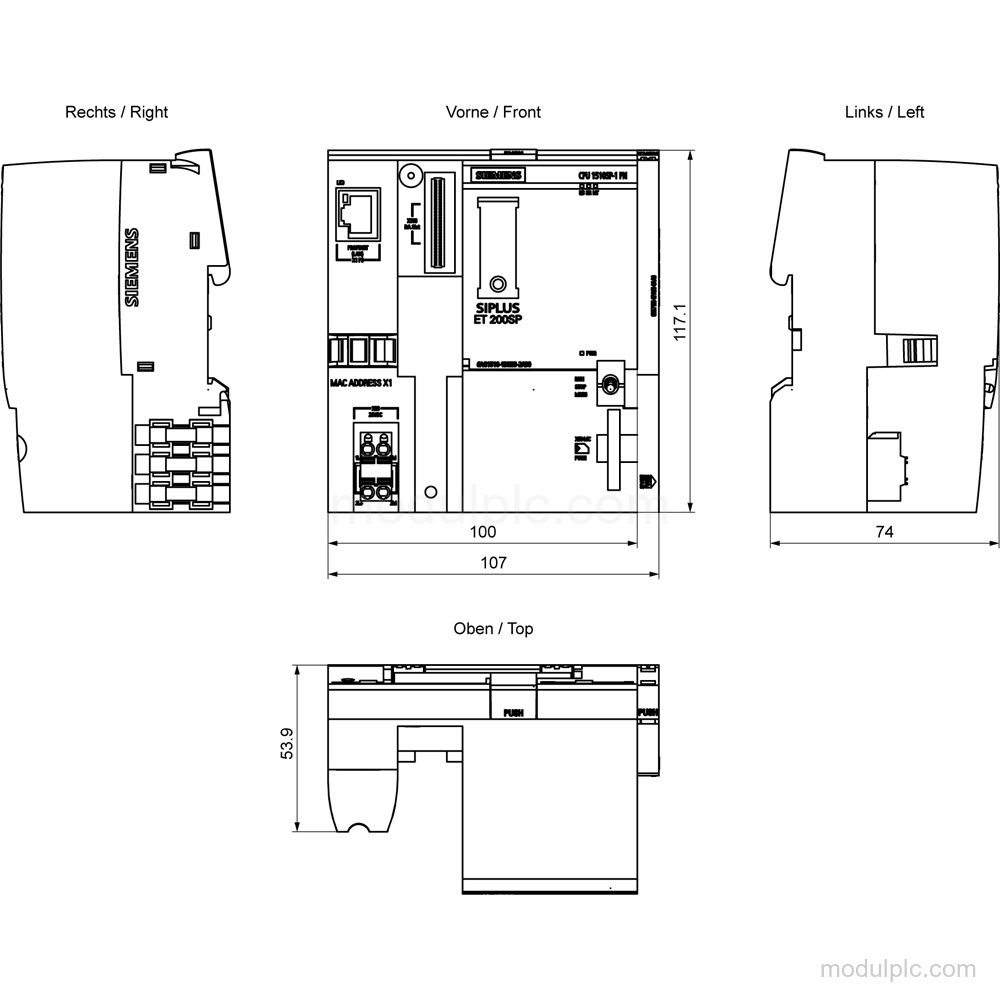

- Installation dimensions: Dimensions are 100 mm wide, 117 mm high, and 75 mm deep; weight is approximately 265 g.
Frequently Asked Questions
1. What is the function of the 6AG1510-1DK03-2AB0?
It is a CPU 1510SP-1 PN central processing unit for the ET 200SP system, based on 6ES7510-1DK03-0AB0.
2. What PROFINET interface does this CPU have?
It has 1 PROFINET interface with PROFINET IRT, an integrated switch, and 3 ports: 1 integrated plus 2 via BusAdapter.
3. What supply voltage does the CPU require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
4. What memory is available?
It has 200 kbyte of integrated program work memory and 1 Mbyte of integrated data work memory. A SIMATIC Memory Card is required.
