Product Overview
Technical Summary
| Parameter | Value |
|---|---|

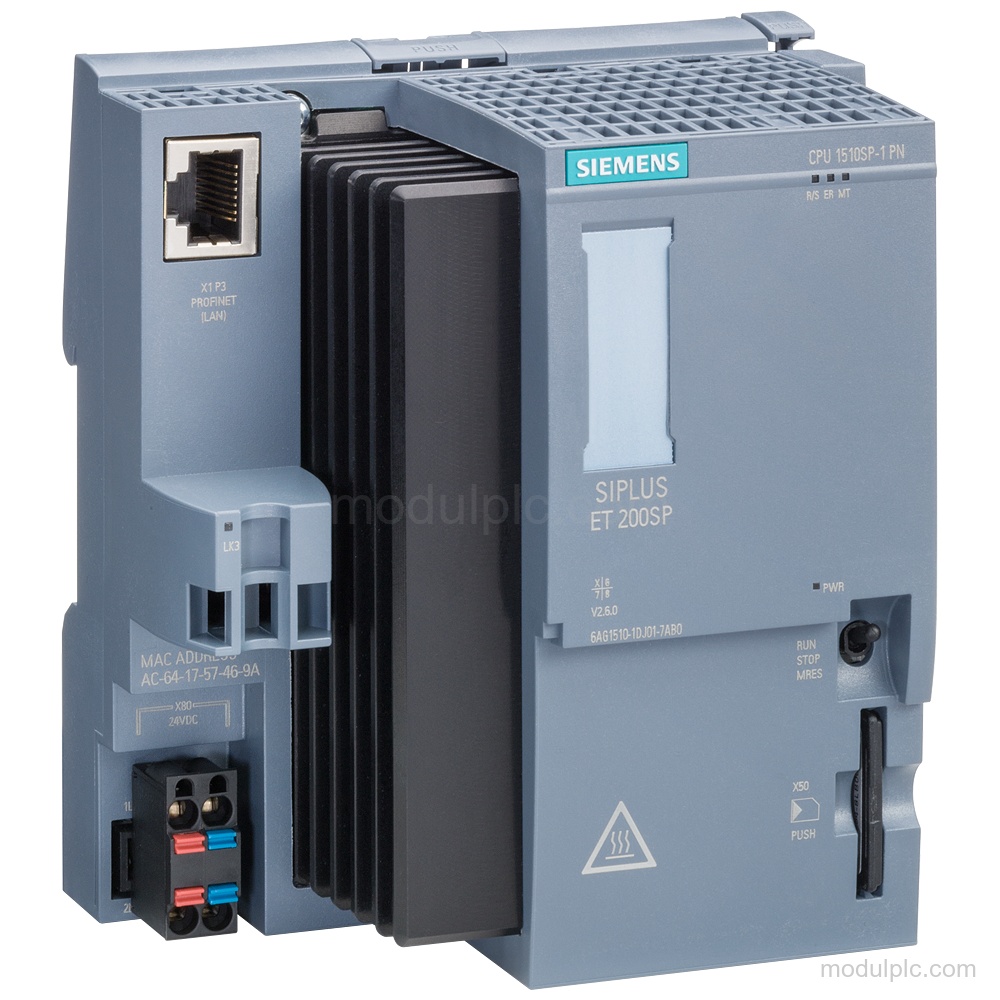

| Product type | CPU 1510SP-1 PN |
| Supply voltage, rated value (DC) | 24 V |
| PROFINET interfaces | 1 |
| PROFIBUS interfaces | 1; Via CM DP module |
| RJ 45 (Ethernet) | Yes; X1 P3 |
| Bit operations, typ. | 72 ns |
| SIMATIC Memory Card required | Yes |
| Load memory, max. | 32 Gbyte |
| Diagnostic buffer entries, max. | 1 000 |
| Ambient temperature during operation | -40 °C to 70 °C horizontal; -40 °C to 50 °C vertical |
Applications
- Program execution: Executes user programs using LAD, FBD, STL, SCL and GRAPH programming languages.
- PROFINET communication: Communicates as a PROFINET IO Controller or PROFINET IO device and supports IRT and direct data exchange.
- Motion control: Supports Motion Control technology objects, with 800 available Motion Control resources.
- PID control: Provides PID_Compact, PID_3Step and PID-Temp controllers with integrated optimization.
Key Features
- CPU and memory: CPU 1510SP-1 PN with 4 000 total elements for blocks and UDTs, 750 kbyte maximum DB size, and plug-in SIMATIC Memory Card load memory up to 32 Gbyte.
- PROFINET communication: 1 PROFINET interface with PROFINET IO Controller, PROFINET IO device, IRT, PROFIenergy, and an RJ 45 Ethernet connection at X1 P3.
- PROFIBUS communication: PROFIBUS DP master and device functions via a CM DP module, with up to 125 DP devices and a maximum RS 485 transmission rate of 12 Mbit/s.
- Supply and consumption: 24 V DC rated supply with a permissible range of 19.2 V to 28.8 V, reverse polarity protection, 0.6 A rated current consumption, and 0.9 A maximum current consumption.
- Diagnostics and control: Diagnostic buffer with up to 1 000 entries, RUN/STOP, ERROR, MAINT and PWR-LEDs, status/control variables, forcing, and 4 configurable traces.
- Installation and environmental limits: 100 mm width, 117 mm height and 75 mm depth. During operation, ambient temperature is -40 °C to 70 °C for horizontal installation and -40 °C to 50 °C for vertical installation.
Frequently Asked Questions
1. What CPU type is Siemens 6AG1510-1DJ01-7AB0?
It has the CPU 1510SP-1 PN product type designation and is based on 6ES7510-1DJ01-0AB0.
2. What supply voltage does this CPU require?
The rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V.
3. Which network interfaces are provided?
It has 1 PROFINET interface and 1 PROFIBUS interface via a CM DP module. The RJ 45 Ethernet connection is X1 P3.
4. Is a memory card included with this configuration?
It is without a SIMATIC Memory Card; a SIMATIC Memory Card is required, and the plug-in load memory supports up to 32 Gbyte.
