Product Overview
Technical Summary

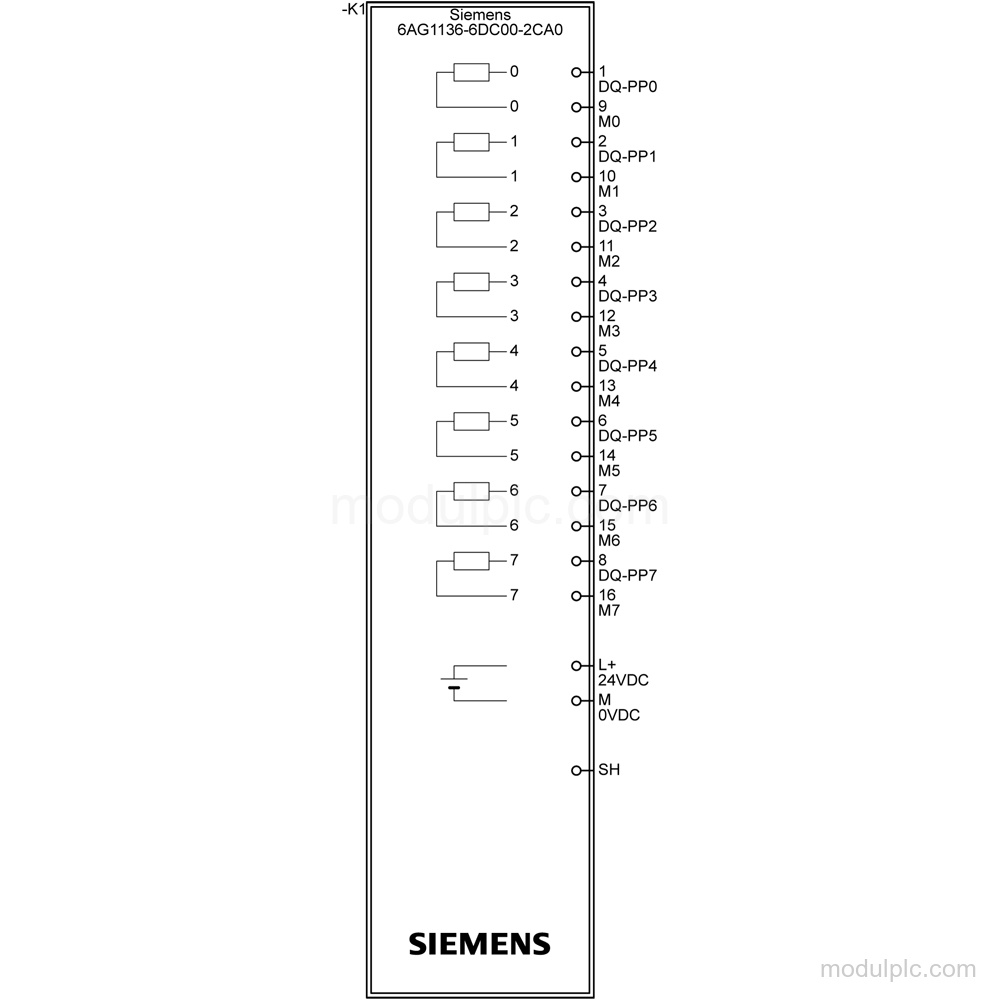

| Parameter | Value |
|---|---|
| Module type | F-DQ 8x24VDC/0.5A PP HF |
| Digital outputs | 8 transistor outputs; parameterizable |
| Rated supply voltage | 24 V DC |
| Permissible supply range | 19.2 V to 28.8 V DC |
| Rated output current | 0.5 A |
| Maximum module current | 3 A; note derating data in the manual |
| Output protection | Short-circuit protection: Yes |
| Firmware update | Possible |
| BaseUnit | BU type A0 |
Applications
- Digital input control: Controls a digital input with a digital output according to IEC 61131-2, type 0.5.
Key Features
- Fail-safe digital outputs: 8 parameterizable transistor outputs with 0.5 A rated output current and short-circuit protection.
- Supply voltage: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC; reverse polarity protection: Yes.
- Output switching limits: Maximum switching frequency: 30 Hz with resistive load, 0.1 Hz with inductive load, 2 Hz with capacitive load, and 10 Hz on lamp load.
- Diagnostics and status LEDs: Diagnostics function and diagnostic alarm: Yes; RUN, ERROR, PWR, channel-status, channel-diagnostics, and DIAG LEDs are provided.
- Electrical separation: Channels are electrically separated from the backplane bus; channel-to-channel separation is not provided.

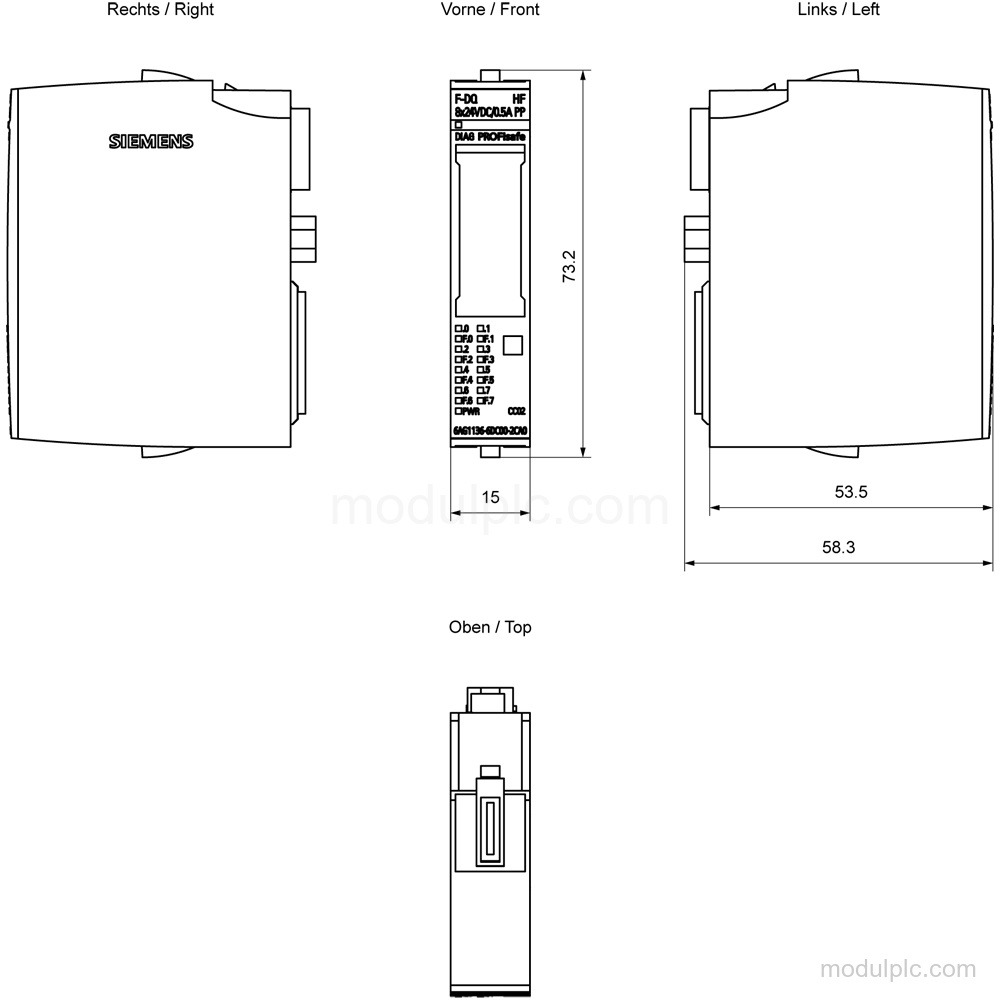

- Installation and current limits: Maximum module current is 3 A; horizontal installation permits 3 A up to 40 °C, 2.5 A up to 50 °C, and 2 A up to 60 °C, with manual derating data applying.
Frequently Asked Questions
1. How many digital outputs does 6AG1136-6DC00-2CA0 have?
It has 8 parameterizable fail-safe transistor outputs.
2. What supply voltage does this module require?
The rated supply voltage is 24 V DC, with a permissible range of 19.2 V to 28.8 V DC.
3. What output current is supported?
The rated output current is 0.5 A. Maximum current is 0.5 A per channel and 3 A per module; note derating data in the manual.
4. What diagnostics are available?
The module has a diagnostics function, diagnostic alarm, and RUN, ERROR, PWR, channel-status, channel-diagnostics, and DIAG LEDs.
