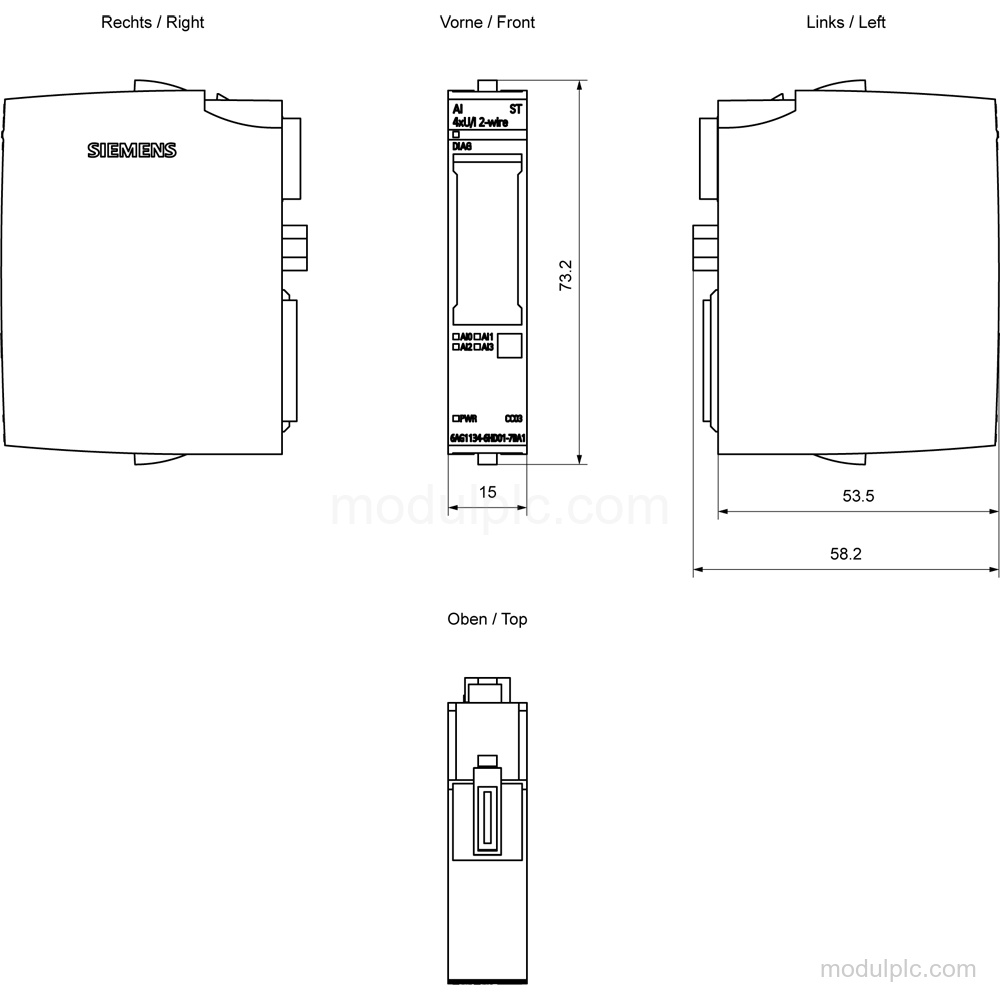

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | AI 4x U/I 2-wire |
| Analog input channels | 4; > 60 °C max. 1x ±20 mA or 4x ±10 V permissible |
| Voltage input ranges | 0 to +10 V; 1 V to 5 V; -10 V to +10 V; -5 V to +5 V |
| Current input ranges | 0 to 20 mA; 4 mA to 20 mA |
| Resolution | 16 bit including sign |
| Rated supply voltage | 24 V DC |
| Permissible supply-voltage range | 19.2 V to 28.8 V |
| BaseUnits | BU type A0, A1 |
Applications
- Voltage measurement: Measures voltage signals through the analog inputs.
- Current measurement with 2-wire transducers: Measures current signals from 2-wire transducers; the maximum 2-wire transmitter burden is 650 Ω.
- Input diagnostics: Monitors supply voltage and detects wire break, short-circuit, group error, and overflow/underflow.
Key Features

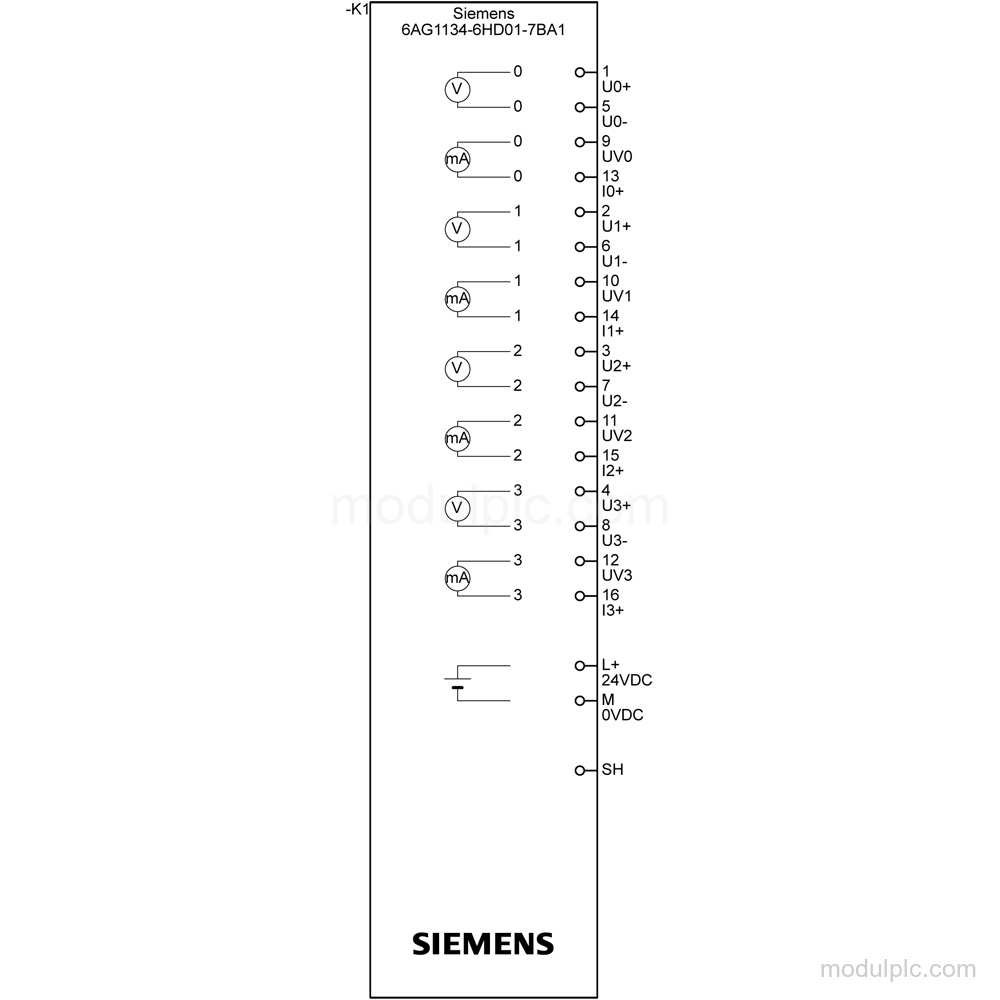

- Analog inputs: 4 analog inputs support voltage and current measurement, including 2-wire current measurement.
- Supported input ranges: Voltage ranges: 0 to +10 V, 1 V to 5 V, -10 V to +10 V, and -5 V to +5 V. Current ranges: 0 to 20 mA and 4 mA to 20 mA.
- Resolution and conversion: Resolution with overrange is 16 bit including sign. Conversion time per channel is 180 / 60 / 50 ms.
- Supply and encoder output: Rated supply is 24 V DC, with a permissible range of 19.2 V to 28.8 V. The 24 V encoder supply has short-circuit protection.
- Diagnostics: The module has diagnostics, diagnostic alarms, supply-voltage monitoring, wire-break detection at 4 mA to 20 mA, group error, and overflow/underflow detection.
- BaseUnit and coding: The module is for BU type A0 or A1, with automatic encoding and a Type A mechanical coding element.
Frequently Asked Questions
1. How many analog inputs does Siemens 6AG1134-6HD01-7BA1 have?
It has 4 analog inputs. At > 60 °C, maximum permissible operation is 1x ±20 mA or 4x ±10 V.
2. Which signal ranges does this module support?
Voltage ranges are 0 to +10 V, 1 V to 5 V, -10 V to +10 V, and -5 V to +5 V. Current ranges are 0 to 20 mA and 4 mA to 20 mA.
3. What resolution and conversion time does it provide?
Resolution with overrange is 16 bit including sign. Conversion time per channel is 180 / 60 / 50 ms.
4. Which BaseUnits are suitable for this module?
It is suitable for BU type A0 and A1.
