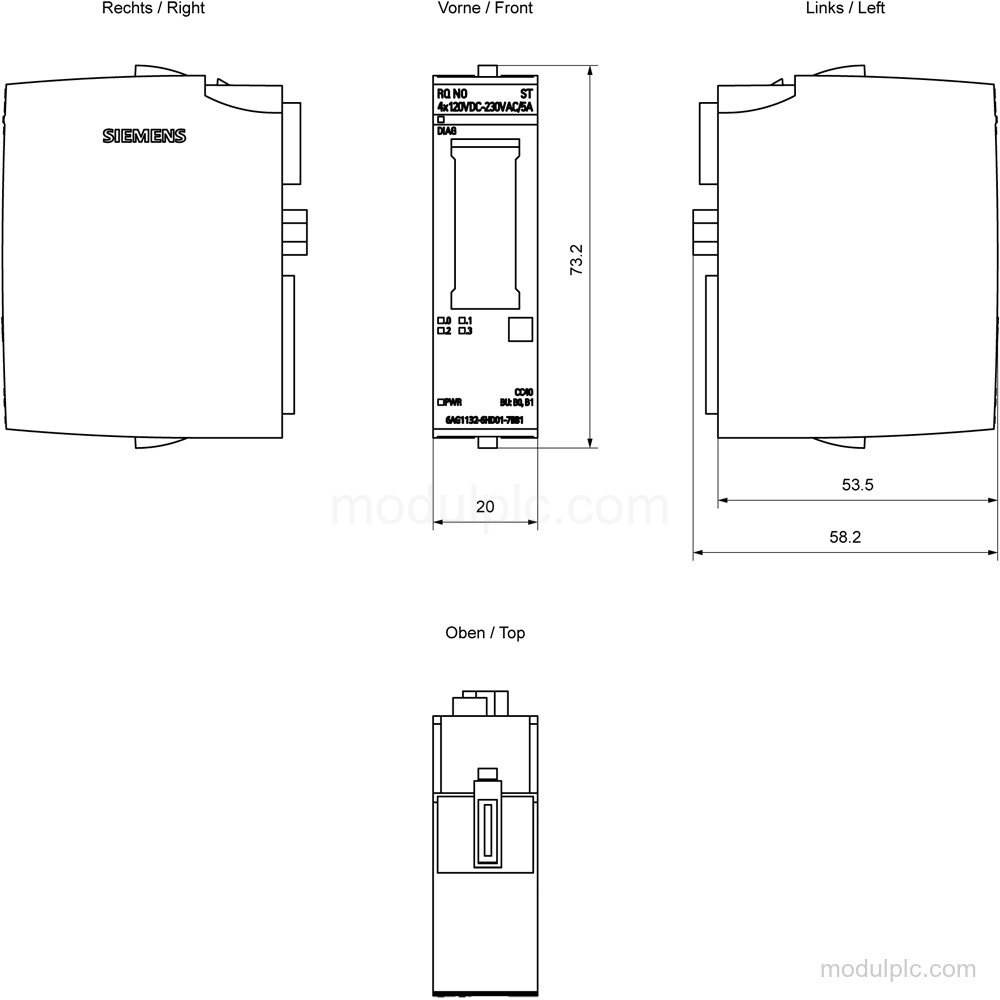

Product Overview
Technical Summary

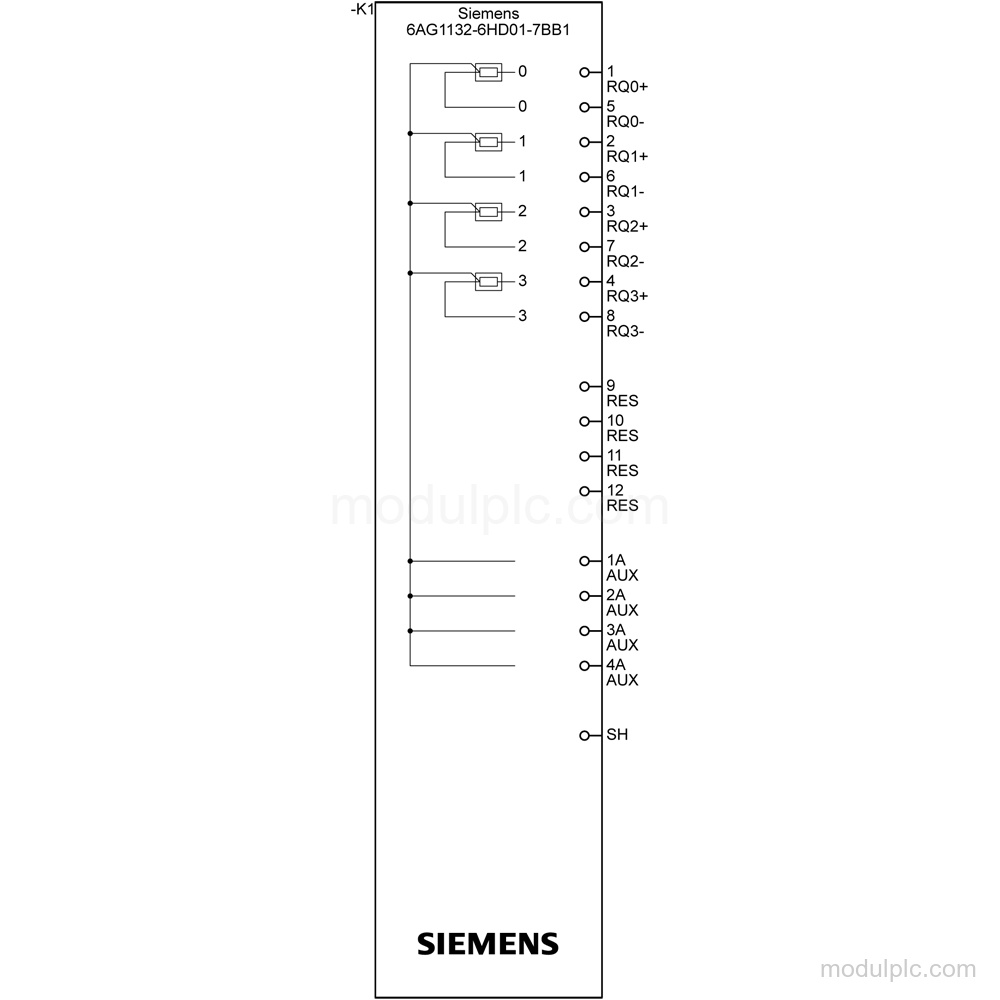

| Parameter | Value |
|---|---|
| Product type | RQ 4×120 VDC … 230 VAC/5 A NO ST |
| Digital outputs | 4 relay outputs |
| Rated supply voltage (DC) | 24 V |
| Permissible supply range (DC) | 19.2 V to 28.8 V |
| Rated switching voltage (DC) | 24 V DC to 120 V DC |
| Rated switching voltage (AC) | 24V AC to 230V AC |
| Current per channel, max. | 5 A; > +60 °C max. continuous current per relay 3 A |
| Current per module, max. | 20 A |
| BaseUnits | BU type B0, B1 |
| Connection | B0: 3-wire connection; B1: 2-wire connection |
| Module diagnostics | Yes; green/red DIAG LED |
Applications
- Relay output control: Controls loads through 4 digital relay outputs with parameterizable output behavior.
- Redundant load control: Supports parallel switching of two outputs for redundant control of a load.
Key Features
- Relay outputs: 4 parameterizable digital relay outputs support current-sinking and current-sourcing.
- Switching voltages: Rated switching voltage is 24 V DC to 120 V DC and 24V AC to 230V AC.
- Supply and current: Rated supply voltage is 24 V; supply range is 19.2 V to 28.8 V. Current per channel is 5 A, with > +60 °C maximum continuous current per relay of 3 A.
- BaseUnit and connection: Suitable for BU type B0 or B1; B0 provides 3-wire connection and B1 provides 2-wire connection.
- Diagnostics and protection: Module diagnostics, diagnostic alarms, supply-voltage monitoring, reverse polarity protection, and substitute values are supported. Short-circuit protection is not provided.
- Isolation: Channels, backplane bus, and electronics power supply have potential separation. Isolation is tested with 2 500 V DC (type test).
Frequently Asked Questions
1. How many digital outputs does Siemens 6AG1132-6HD01-7BB1 have?
It has 4 digital relay outputs.
2. What switching voltages are supported?
Rated switching voltage is 24 V DC to 120 V DC and 24V AC to 230V AC.
3. Which BaseUnits and connections are supported?
It is suitable for BU type B0 or B1. B0 provides 3-wire connection, and B1 provides 2-wire connection.
4. Does the module have short-circuit protection?
It has no short-circuit protection.
