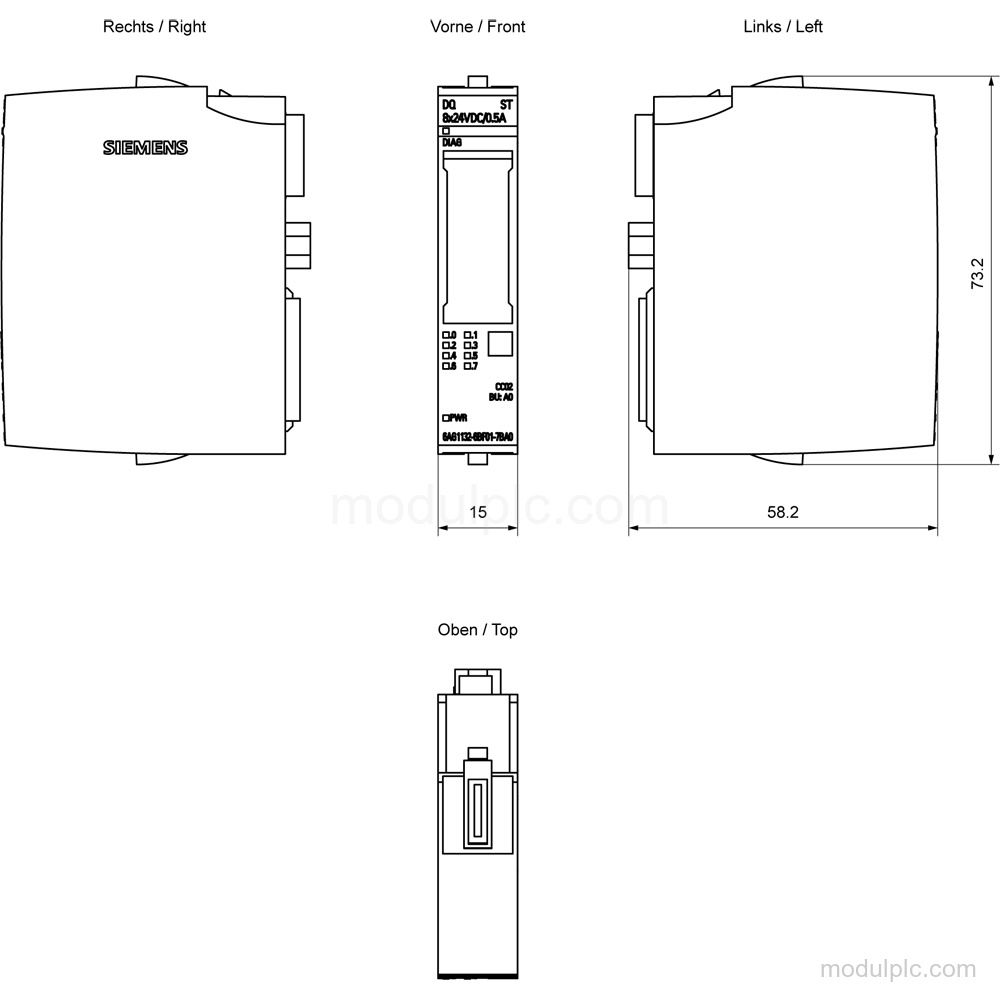

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | DQ 8x24VDC/0,5A ST |
| Digital outputs | 8 source outputs (PNP, current-sourcing) |
| Rated output current | 0.5 A per channel |
| Supply voltage | 24 VDC; 19.2 V to 28.8 V permissible range |
| Maximum module current | 4 A |
| Output delay | 50 μs from "0" to "1"; 100 μs from "1" to "0", at rated load |
| BaseUnit | BU type A0 |
| Protection and diagnostics | Electronic short-circuit protection; open-circuit, wire-break, and short-circuit diagnostics |
| Isolation | 707 V DC type test; channels isolated from backplane bus |
Applications
- Digital output control: Controls digital loads through 8 parameterizable source outputs.
- Digital input control: Supports controlling a digital input.
- Output diagnostics: Provides monitoring for supply voltage, wire break, short-circuit to ground, and short-circuit to L+.
Key Features
- Digital output configuration: 8 parameterizable source outputs (PNP, current-sourcing); current-sinking is not supported.
- Output capacity: 0.5 A rated output current per channel and 4 A maximum current per module.
- Supply voltage: 24 VDC rated supply with a permissible range of 19.2 V to 28.8 V and reverse polarity protection.
- Protection and diagnostics: Electronic short-circuit protection, open-circuit detection, supply-voltage monitoring, wire-break and short-circuit diagnostics.
- Output timing: Maximum output delay is 50 μs from "0" to "1" and 100 μs from "1" to "0", at rated load.
- Connection and mounting: Usable with BU type A0; 3-wire connection requires BU type A0 with AUX terminals or a potential distributor module, while 4-wire connection requires BU type A0 plus a potential distributor module.
Frequently Asked Questions
1. What output type does the 6AG1132-6BF01-7BA0 use?
It has 8 source outputs (PNP, current-sourcing). Current-sinking is not supported.
2. What supply voltage and output current does it require?
The rated supply is 24 VDC, with a permissible range of 19.2 V to 28.8 V. The rated output current is 0.5 A per channel.
3. What diagnostics are available?
It provides supply-voltage monitoring, open-circuit detection, wire-break and short-circuit diagnostics, plus green PWR and channel-status LEDs and a green/red DIAG LED.
4. Which BaseUnit connection variants are supported?

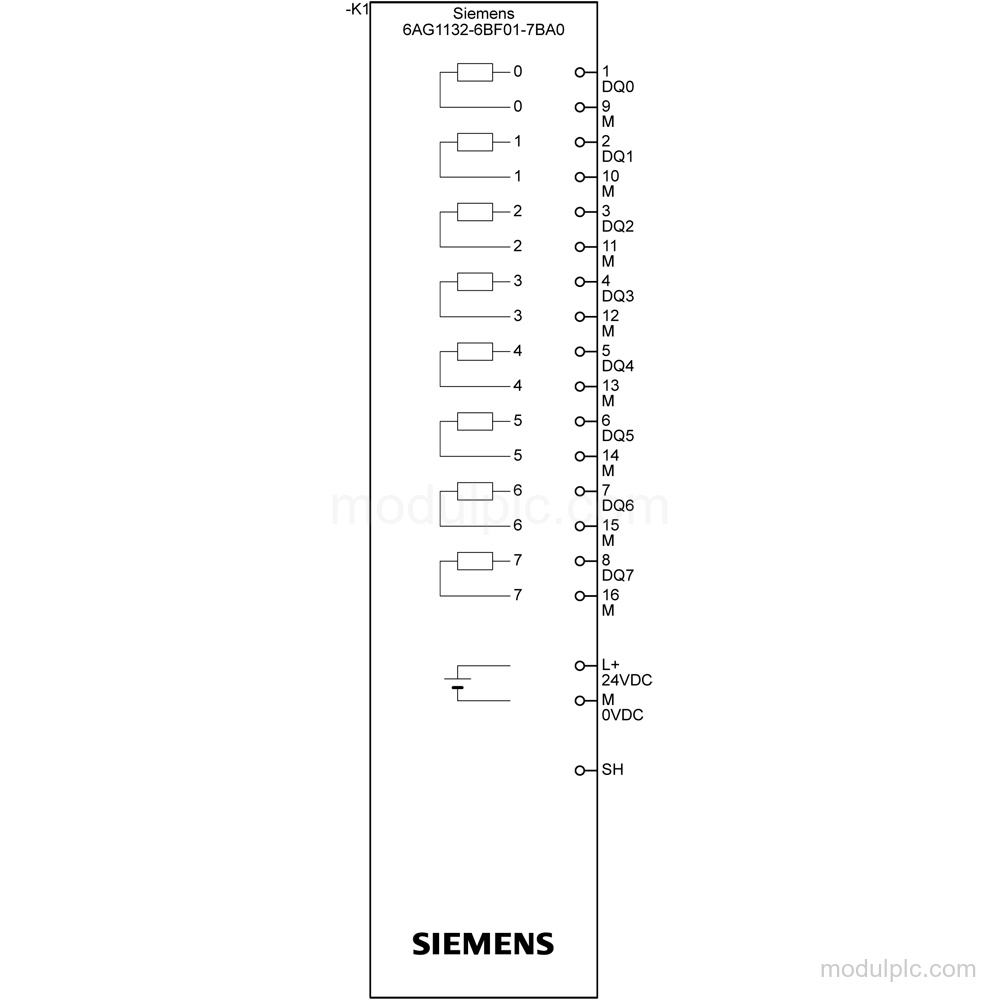

BU type A0 supports 1-wire and 2-wire connections. A 3-wire connection requires BU type A0 with AUX terminals or a potential distributor module; a 4-wire connection requires BU type A0 plus a potential distributor module.
