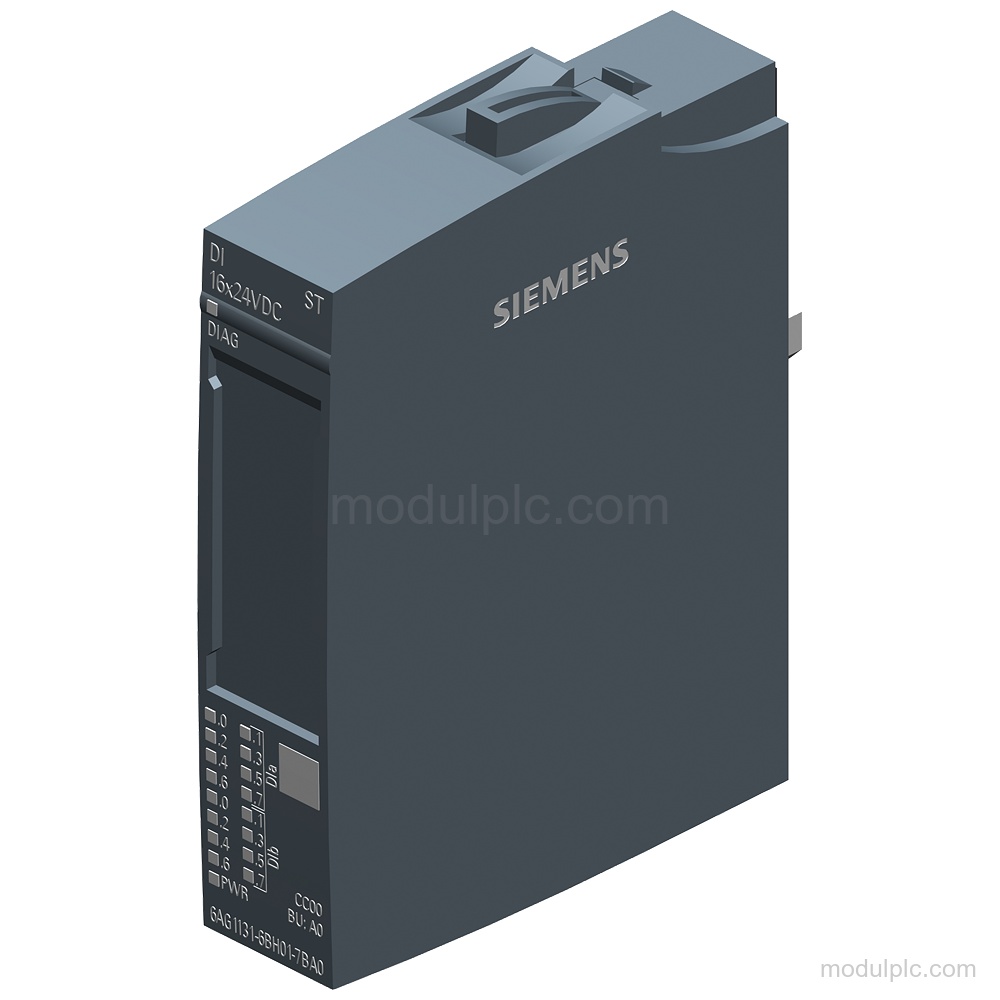

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Module type | DI 16x24VDC ST |
| Digital inputs | 16 |
| Input voltage, rated value (DC) | 24 V |
| Input voltage for signal "0" | -30 to +5 V |
| Input voltage for signal "1" | +11 to +30V |
| Input current for signal "1", typ. | 2.5 mA |
| Supply voltage, rated value (DC) | 24 V |
| Supply voltage, permissible range | 19.2 V to 28.8 V |
| Current consumption, max. | 90 mA |
| Suitable BaseUnit | BU type A0 |
| PROFINET R1 IM operation | Yes |
| Product diagnostics | Wire break, supply-voltage monitoring, diagnostic alarm, readable diagnostic information, and group error |
Applications
- Digital signal acquisition: Acquires digital signals through 16 parameterizable inputs with IEC 61131 type 3 input characteristics.
- Module diagnostics: Provides diagnostics for wire break, supply-voltage monitoring, diagnostic alarms, readable diagnostic information, and group error.
Key Features
- Digital input channels: 16 parameterizable digital inputs with a 24 V DC rated input voltage.
- Input signal ranges: Signal "0": -30 to +5 V; signal "1": +11 to +30V.
- Input timing: Parameterizable delay: 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms, in each case + delay of 30 to 500 μs depending on line length.
- Supply and consumption: Rated supply voltage: 24 V DC; permissible range: 19.2 V to 28.8 V DC; maximum current consumption: 90 mA.
- Diagnostics and isolation: Module diagnostics include wire break, supply-voltage monitoring, diagnostic alarm, and group error. Channels are isolated from the backplane bus; isolation tested with 707 V DC (type test).

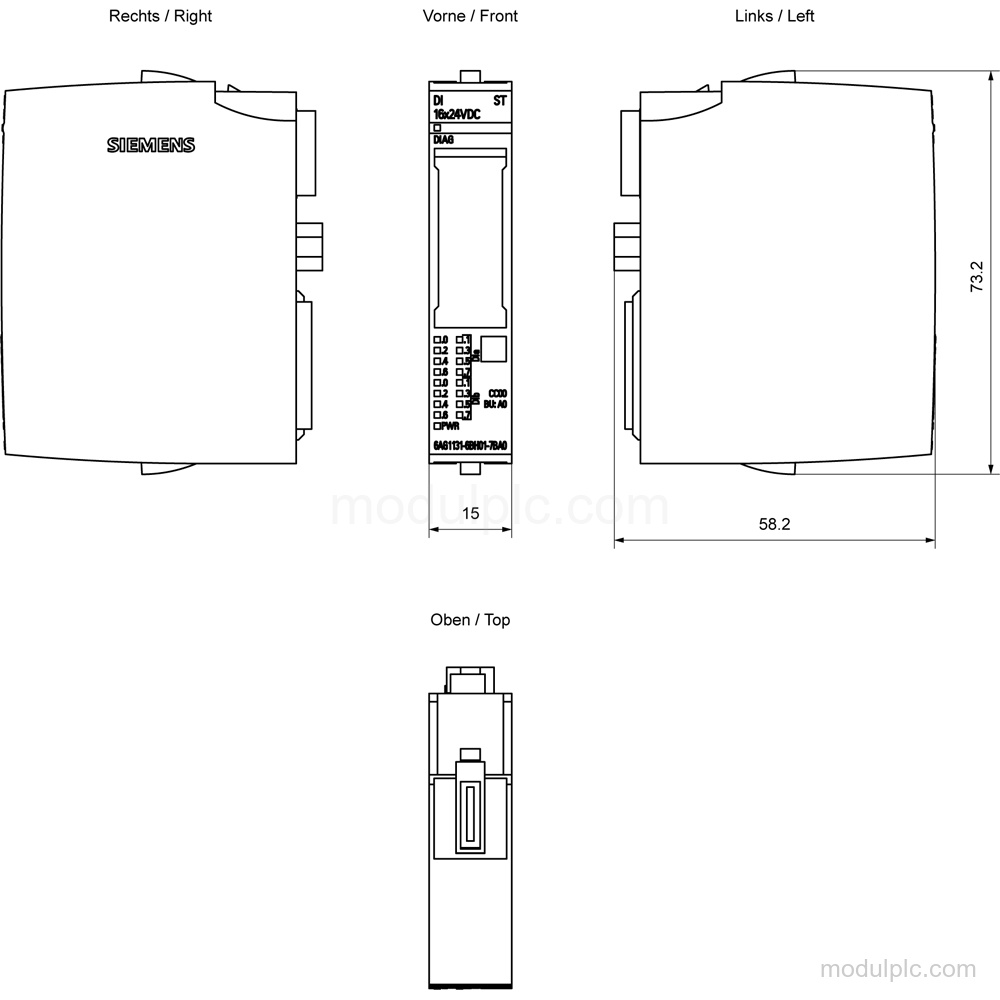

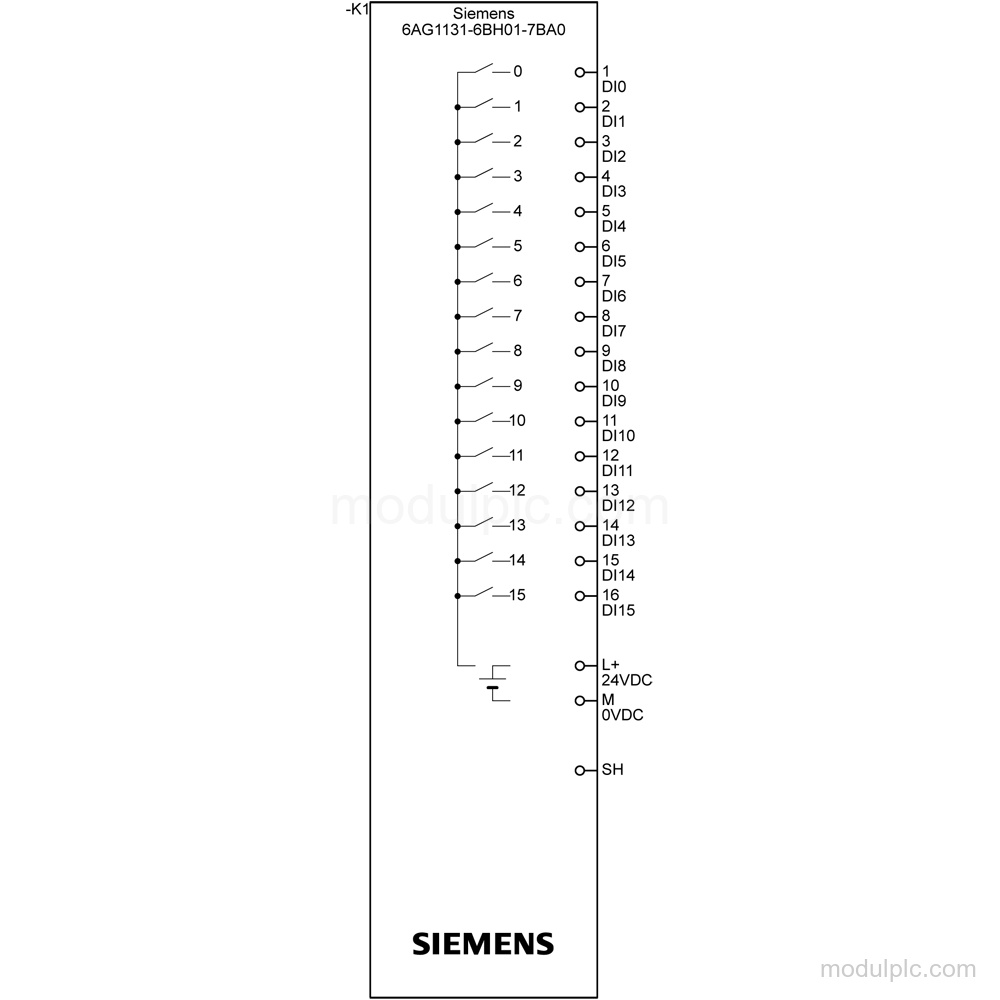

- BaseUnit and connection: Suitable for BU type A0. 1-wire connection uses BU type A0; 2-wire, 3-wire, and 4-wire connections use BU type A0 + Potential distributor module.
Frequently Asked Questions
1. How many digital inputs does the 6AG1131-6BH01-7BA0 have?
It has 16 parameterizable digital inputs.
2. What input voltage ranges does this module support?
For signal "0", the range is -30 to +5 V. For signal "1", the range is +11 to +30V.
3. Which BaseUnit is used for the connection variants?
A 1-wire connection uses BU type A0. 2-wire, 3-wire, and 4-wire connections use BU type A0 + Potential distributor module.
4. What diagnostics are available?
The module provides wire-break diagnostics, supply-voltage monitoring, diagnostic alarms, readable diagnostic information, and group error. Short-circuit diagnostics and encoder power-supply monitoring are not available.
