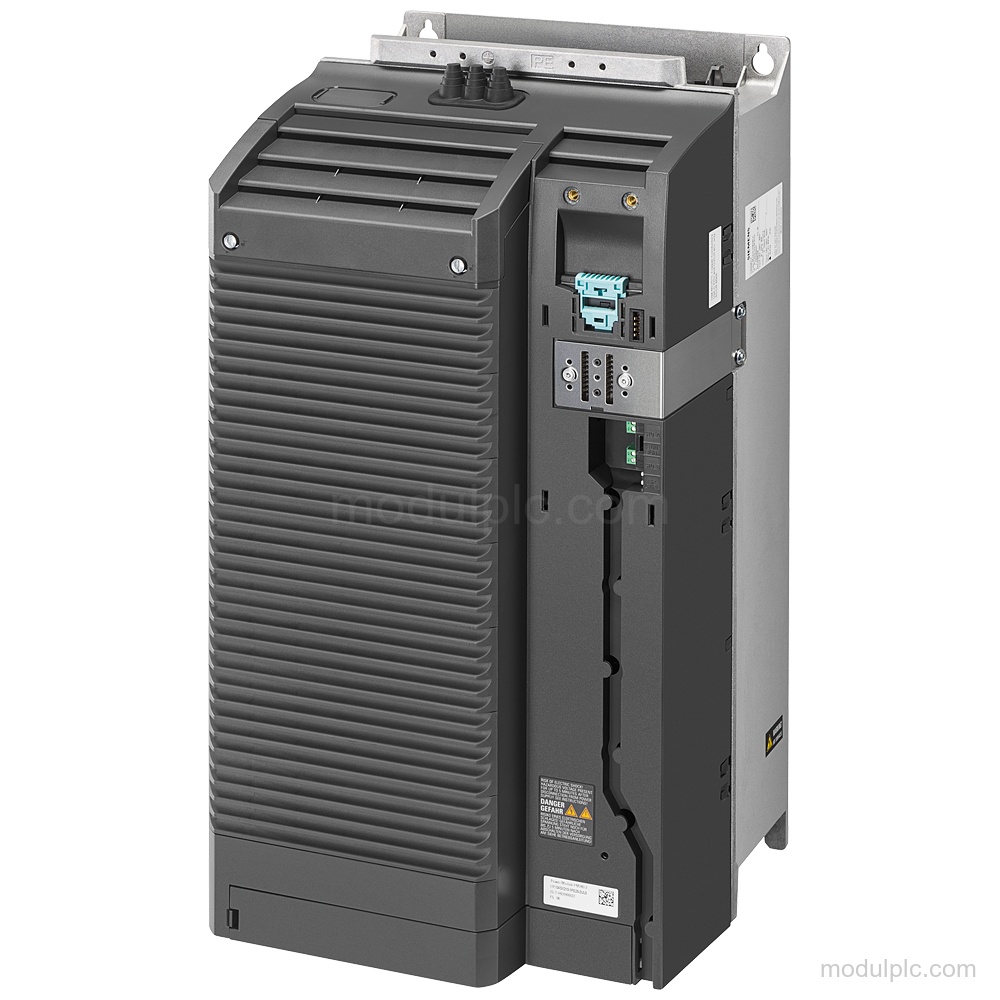

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | PM240-2 |
| Product version | FSE 45 kW |
| Active power output, low overload | 45 kW |
| Active power output, high overload | 37 kW |
| Input voltage | 380-480 V 3 AC +10/-20% at 47-63 Hz |
| Maximum output current | 150 A |
| Output voltage range | 0 % to 95 % of input voltage |
| Pulse frequency | 4 kHz |
| Braking chopper | Integrated |
| Cooling method | Internal air cooling |
Key Features
- PM240-2 FSE converter: Product type designation: PM240-2; product version: FSE 45 kW. The design is FSE and is based on 6SL3210-1PE28-8UL0.
- Overload output ratings: Active power output is 45 kW with low overload and 37 kW with high overload. Low overload provides 150% output current for 3 s and 110% for 57 s; high overload provides 200% for 3 s and 150% for 57 s, each with a 300 s cycle time.
- AC input and output: Input voltage type is AC. Input voltage is 380-480 V 3 AC +10/-20% at 47-63 Hz. Maximum output current is 150 A, and output voltage is 0 % to 95 % of input voltage.
- Integrated braking and protection: The converter has an integrated braking chopper, undervoltage, overvoltage, overload, ground-fault, short-circuit, stall, blocked-rotor, and motor and converter temperature protection.
- Cooling, mounting and protection: Cooling method: internal air cooling. Dimensions are 551 x 275 x 237 (H x W x D). Degree of protection: IP20. The unit is supplied without CU and operating unit.
Frequently Asked Questions
1. What output ratings does the 6AG1210-1PE28-2UL0 provide?
It provides 45 kW active power output with low overload and 37 kW with high overload.
2. What are the input and output electrical ratings?
The input is 380-480 V 3 AC +10/-20% at 47-63 Hz. Maximum output current is 150 A, and output voltage is 0 % to 95 % of input voltage.
3. Does this converter include a braking chopper?
Yes. It has an integrated braking chopper.
4. What protection and cooling does it have?
It has IP20 protection and internal air cooling, plus undervoltage, overvoltage, overload, ground-fault, short-circuit, stall, blocked-rotor, and motor and converter temperature protection.
5. What is excluded from this configuration?
It is supplied without CU and operating unit.
