Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Communication | PROFINET, EtherNet/IP |
| Standard digital inputs | 6 |
| Digital outputs | 3 |
| Analog inputs | 2 (Differential input) |
| Analog outputs | 2 (Non-isolated output) |
| Fail-safe digital inputs | 1 (Use of 2 × DI Standard) |
| Operating voltage via Power Module | DC 24 V |
| Operating voltage via external power supply | DC 20 … 29 V |
| Ambient temperature, operation | -10 … 55 °C (14 … 131 °F) |
| Degree of protection | IP20 / UL open type |
Key Features
- PROFINET and EtherNet/IP communication: Communication interfaces: PROFINET and EtherNet/IP.

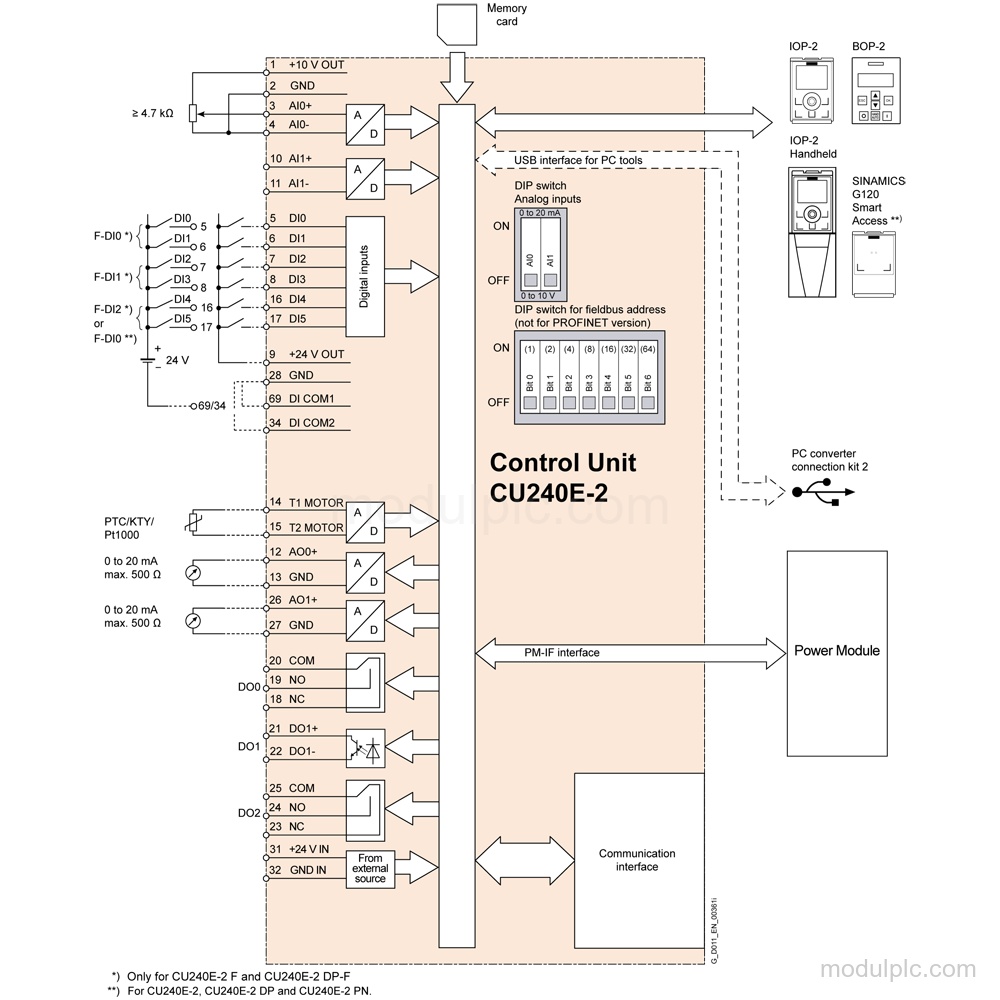

- Digital and analog I/O: The unit has 6 standard digital inputs, 3 digital outputs, 2 differential analog inputs, and 2 non-isolated analog outputs.
- Fail-safe input: It has 1 fail-safe digital input using 2 standard digital inputs.
- Safety functions: The E-type provides Safety Integrated STO; the F-type supports SS1, SLS, SSM, and SDI.
- Control techniques: Supported techniques include V/f linear / square-law / parameterizable, V/f with flux current control (FCC), V/f ECO linear / square-law, sensorless vector control, and encoderless torque control.

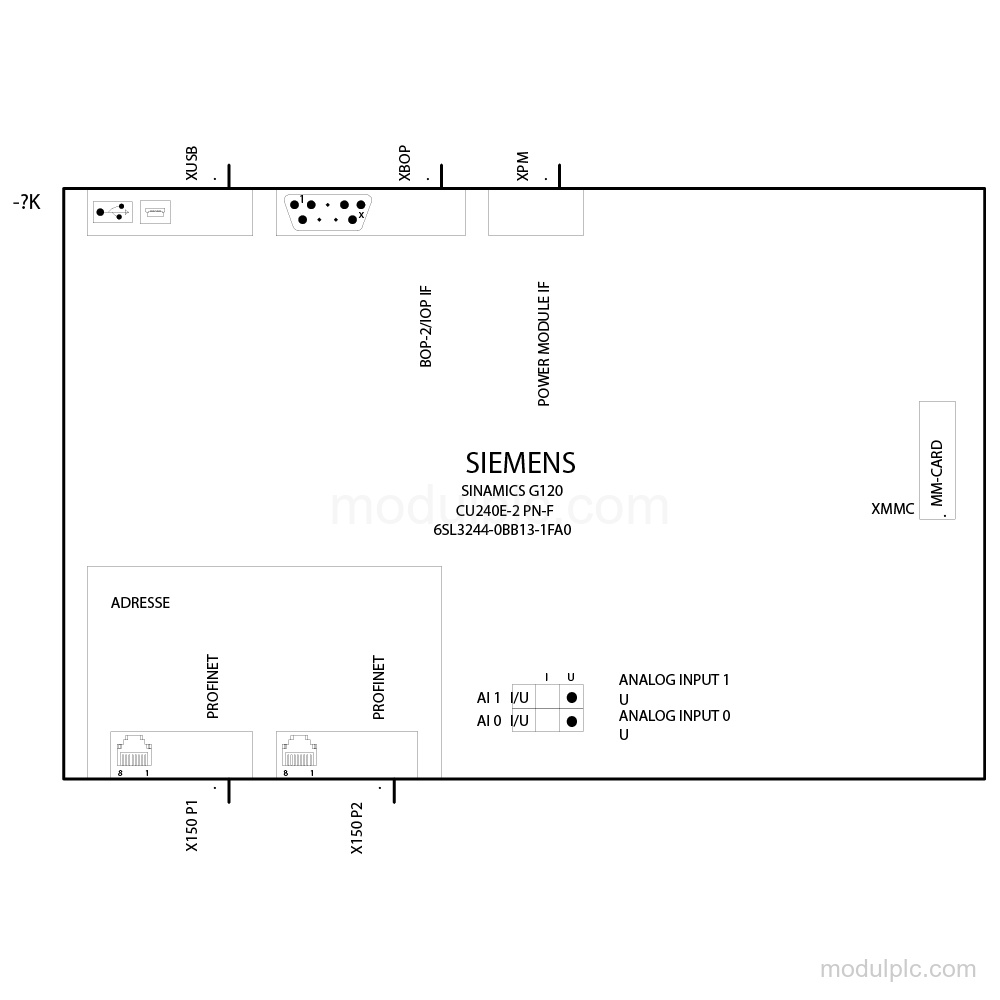

- Interfaces and protection: The unit has USB and SD/MMC interfaces and degree of protection IP20 / UL open type.
Frequently Asked Questions
1. Which communication protocols does the Siemens 6SL3244-0BB13-1FA0 support?
It supports PROFINET and EtherNet/IP.
2. How many inputs and outputs does this control unit have?
It has 6 standard digital inputs, 1 fail-safe digital input using 2 standard digital inputs, 3 digital outputs, 2 differential analog inputs, and 2 non-isolated analog outputs.
3. Which power supplies are specified for the unit?
The operating voltage via the Power Module is DC 24 V. Via an external power supply, it is DC 20 … 29 V.
4. What interfaces are included?
The unit includes USB and SD/MMC interfaces.
