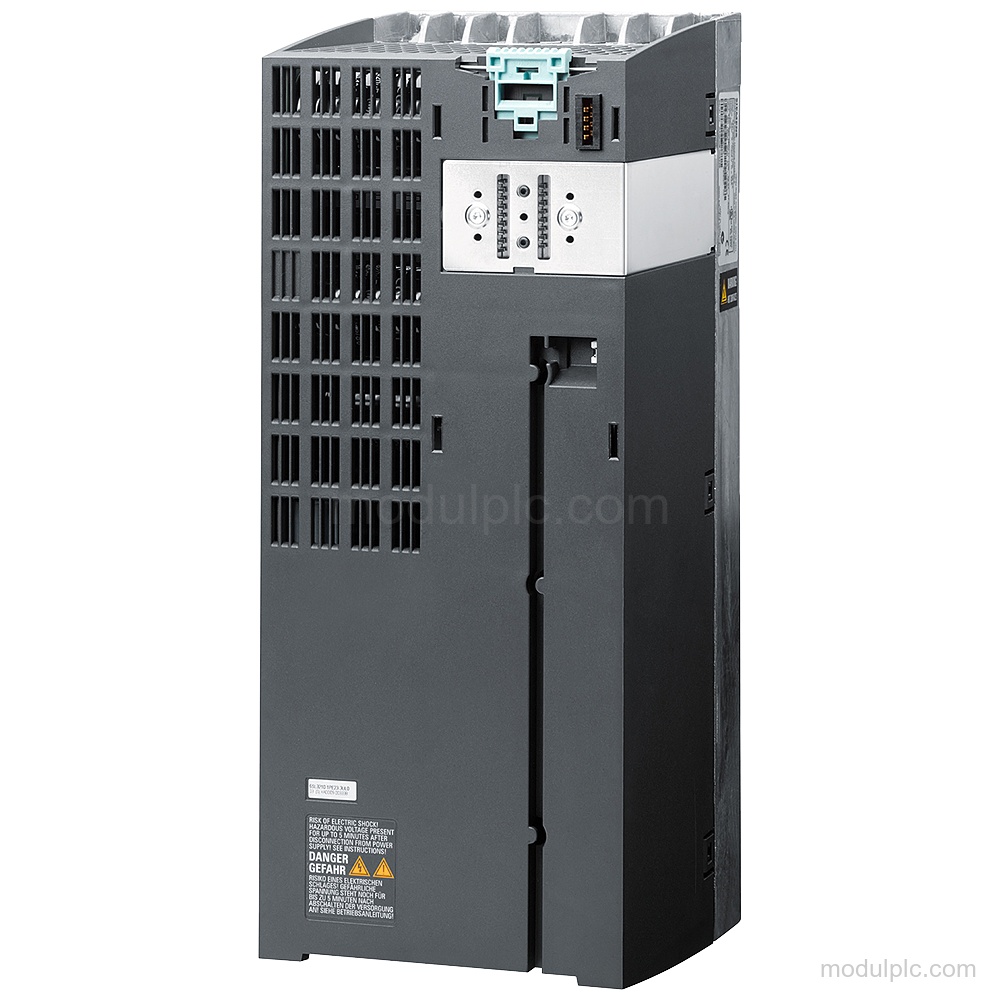

Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | PM240-2 |
| Power version | FSC 15 kW |
| Input supply | 380-480 V 3 AC +10/-10%, 47-63 Hz |
| Emitted active power, low overload | 15 kW |
| Emitted active power, high overload | 11 kW |
| Maximum output current | 52 A |
| Pulse frequency | 4 kHz |
| Integrated function | Braking chopper |
| Cooling method | Internal air cooling |
| Degree of protection | IP20 |
Key Features
- Power and overload ratings: Emitted active power: 15 kW with low overload and 11 kW with high overload. Low overload: 150% for 3 s, 110% for 57 s, 100% for 240 s; high overload: 200% for 3 s, 150% for 57 s, 100% for 240 s.
- Input and output: Input: 380-480 V 3 AC +10/-10%, 47-63 Hz. Maximum output current: 52 A; pulse frequency: 4 kHz; output voltage: 0% to 95% of input voltage.
- Integrated braking chopper: The unit has an integrated braking chopper and FSC design.
- Protection functions: It has undervoltage, overvoltage, overload, ground-fault, short-circuit, stall, blocked-rotor, motor-temperature, and converter-temperature protection, plus parameter locking.
- Cooling and dimensions: Cooling method: internal air cooling. Cooling air flow: 0.019 m3/s. Dimensions HxWxD: 355x140x165.
- Protection and delivery form: Degree of protection: IP20. The unit is without CU and operating unit and is released as of CU FW version V4.7 HF8. It has conformal coating and is an Active Product.
Frequently Asked Questions
1. What is the power rating of Siemens 6AG1210-1PE23-2UL0?
Emitted active power is 15 kW with low overload and 11 kW with high overload.
2. What input supply does this PM240-2 use?
The input is 380-480 V 3 AC +10/-10% at 47-63 Hz.
3. What protection functions are included?
It has undervoltage, overvoltage, overload, ground-fault, short-circuit, stall, blocked-rotor, motor-temperature, and converter-temperature protection, plus parameter locking.
4. What is included in the configuration?
It is without CU and operating unit. The unit has IP20 protection and is released as of CU FW version V4.7 HF8.
