Product Overview
Technical Summary
| Parameter | Value |
|---|---|

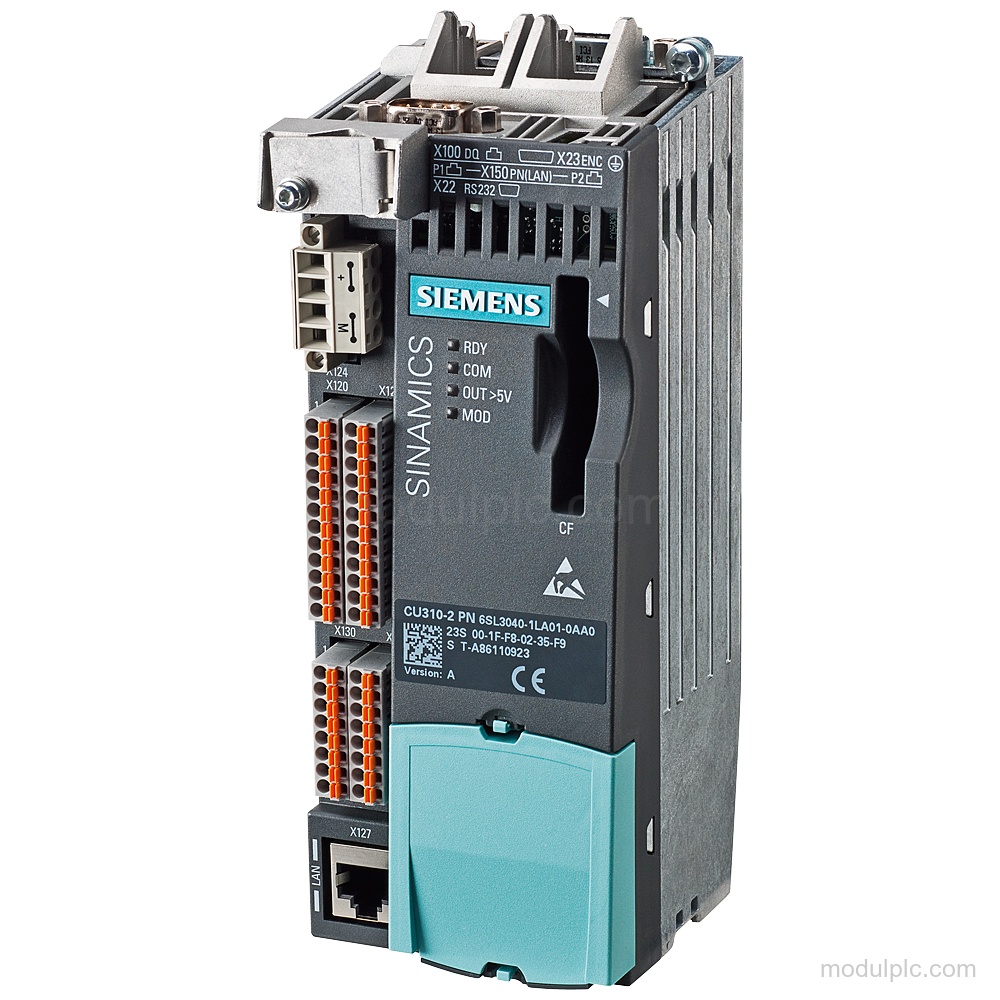

| Product type | CU310-2 PN |
| PROFINET interfaces | 2 |
| Digital inputs | 11 |
| Analog inputs | 1; differential input |
| Vector control without encoder | Yes |
| Operating voltage from Power Module | 24 V |
| External power supply | 20.4 V min. to 28.8 V max. |
| Maximum current consumption | 0.3 A |
| Maximum power loss | 20 W |
| Protection | IP20 |
Applications
- Encoderless vector control: Supports vector control without encoder.
Key Features
- Encoderless vector control: Vector control without encoder: Yes.
- Digital input configuration: 11 digital inputs; this includes 5 floating digital inputs, 8 bidirectional non-floating digital inputs/outputs, and 3 parameterizable failsafe digital inputs, or alternatively 6 parameterizable electrically isolated digital inputs.
- Differential analog input: 1 analog input with differential input type; the differential analog input can be configured as a supplementary digital input.
- PROFINET interfaces: 2 PROFINET interfaces are provided. PROFIBUS is not supported.
- Supply and protection: Operating voltage from the Power Module: 24 V. External power supply: 20.4 V min. to 28.8 V max. Protection: IP20.
Frequently Asked Questions
1. Does the CU310-2 PN support vector control without an encoder?
Yes. Vector control without encoder is supported.
2. How many PROFINET interfaces does this unit have?
It has 2 PROFINET interfaces.
3. What digital input configuration is available?
It has 11 digital inputs, including 3 parameterizable failsafe digital inputs or, alternatively, 6 parameterizable electrically isolated digital inputs.
4. What supply voltage is specified?
The operating voltage from the Power Module is 24 V. The external power supply range is 20.4 V min. to 28.8 V max.
