Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Input voltage | 380 … 480 V ±10 % |
| Input frequency | 47 … 63 Hz |
| Rated output power (LO) | 11.00 kW | 15.00 hp |
| Rated output power (HO) | 7.50 kW | 10.00 hp |
| Output frequency for vector control | 0 … 200 Hz |
| Output frequency for V/f control | 0 … 550 Hz |
| Line and motor connections | Plug-in screw terminals |
| Degree of protection | IP20 / UL open type |
| Frame size | FSC |
Key Features
- Input supply: Input: 3 AC, 380 … 480 V ±10 %, 47 … 63 Hz.
- Output power: Rated power: 11.00 kW | 15.00 hp (LO); 7.50 kW | 10.00 hp (HO).
- Integrated functions: Built-in Class A filter and braking chopper.
- Output frequency: Output frequency: 0 … 200 Hz for vector control; 0 … 550 Hz for V/f control.

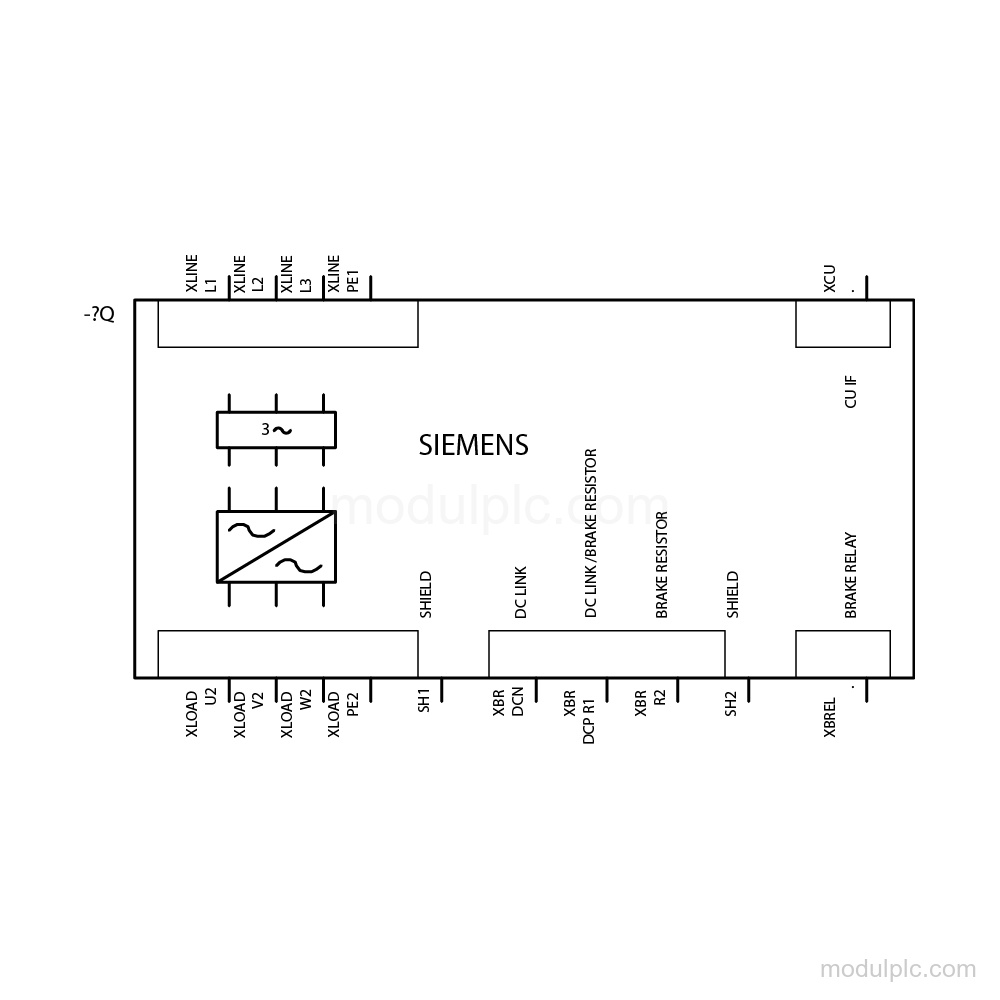

- Connections: Line-side and motor-end connections use plug-in screw terminals for 6.00 … 16.00 mm2 (AWG 10 … AWG 6) conductors.
- Installation and protection: Frame size FSC, IP20 / UL open type, dimensions 355 mm × 140 mm × 165 mm (H×W×D), net weight 5.30 kg.
Frequently Asked Questions
1. What is the rated output power of the 6SL3210-1PE22-7AL0?
Rated output power is 11.00 kW | 15.00 hp in LO and 7.50 kW | 10.00 hp in HO.
2. What input supply does this power module use?
It uses 3 AC input at 380 … 480 V ±10 % and 47 … 63 Hz.
3. Which functions are integrated?
It has a built-in Class A filter and braking chopper.
4. What connections are provided?
The line side and motor end use plug-in screw terminals for 6.00 … 16.00 mm2 (AWG 10 … AWG 6) conductors.
5. Is the control unit and panel included?
It is without a control unit and panel.
