Product Overview
Technical Summary
| Parameter | Value |
|---|---|
| Product type | CPU 416-5H PN/DP |
| Integrated work memory | 16 Mbyte: 6 Mbyte program and 10 Mbyte data |
| PROFINET interface | 1 PROFINET interface; 2 RJ 45 ports; 100 Mbit/s maximum |
| PROFIBUS DP masters | 2 integrated; 12 Mbit/s maximum |
| Maximum PROFINET IO Devices | 256; in redundant mode via both interfaces |
| Maximum PROFIBUS DP devices | 32 per DP master |
| MPI connections | 44 |
| Power loss, typ. | 7.5 W |
| Required slots | 2 |
| Firmware version | V6.0 |
Applications
- PROFINET IO control: The CPU supports operation as a PROFINET IO Controller and can connect up to 256 IO Devices, with redundant-mode conditions stated in the source.
- PROFIBUS DP master communication: The CPU supports PROFIBUS DP master communication at up to 12 Mbit/s, with up to 32 DP devices per master.
- Open IE communication: The CPU supports TCP/IP, ISO-on-TCP (RFC1006), and UDP through the integrated PROFINET interface and loadable FBs.
Key Features

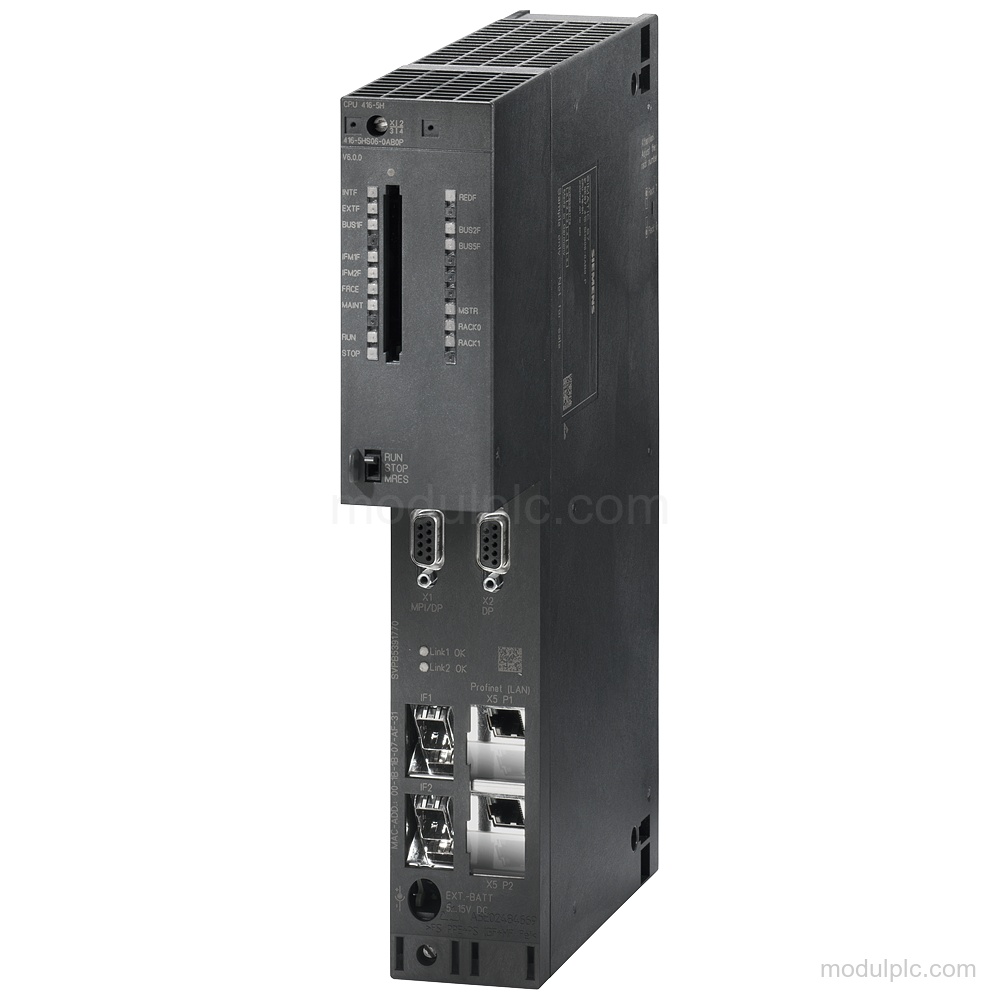

- CPU 416-5H PN/DP: Central processing unit for SIMATIC S7-400H and S7-400F/FH with HW functional status 1 and firmware version V6.0.
- Integrated work memory: 16 Mbyte total, including 6 Mbyte for the program and 10 Mbyte for data; the work memory is not expandable.
- PROFINET interface: 1 integrated PROFINET interface with 2 RJ 45 ports, an integrated switch, PROFINET IO Controller support, and a maximum transmission rate of 100 Mbit/s.
- PROFIBUS DP master: 2 integrated DP masters with a maximum transmission rate of 12 Mbit/s and up to 32 DP devices per master.
- Processing performance: Typical processing time is 12.5 ns for bit, word, and fixed-point operations, and 25 ns for floating-point operations.

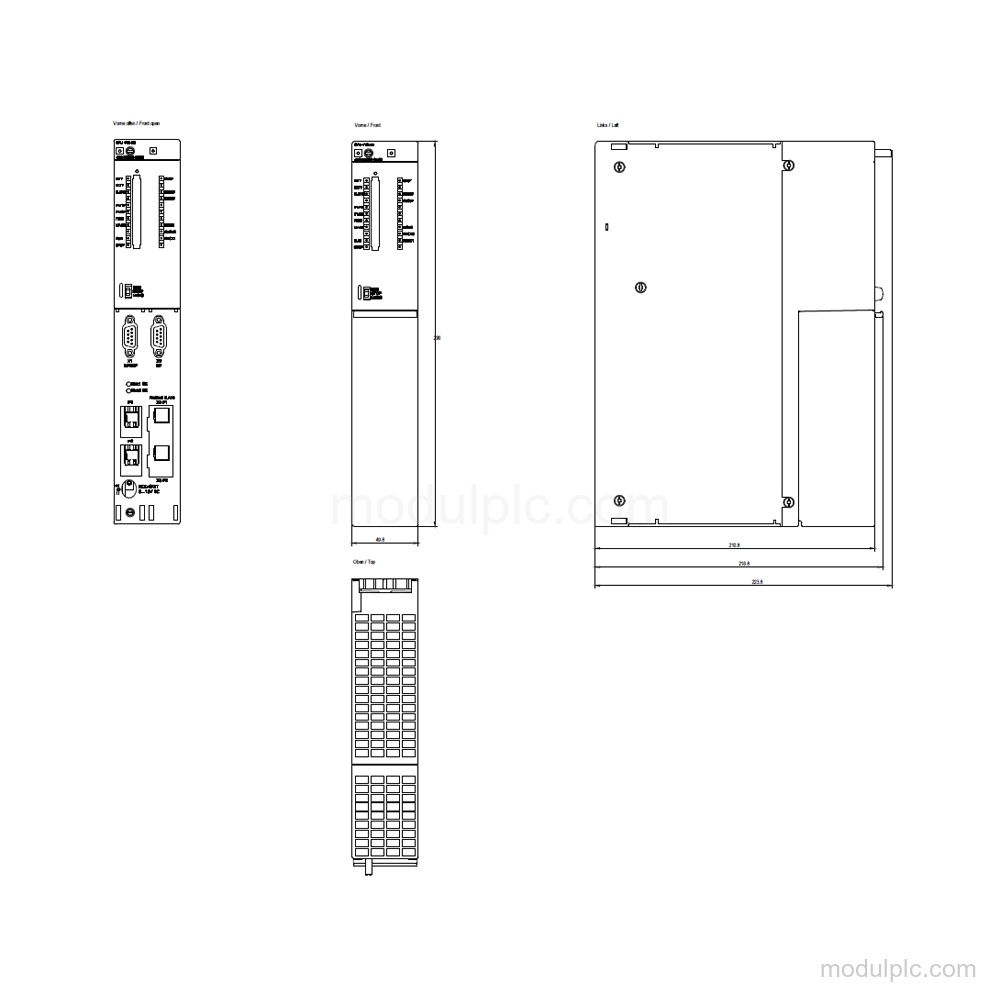

- Installation and weight: The CPU requires 2 slots and measures 50 mm wide, 290 mm high, and 219 mm deep; approximate weight is 995 g.
Frequently Asked Questions
1. What is the function of Siemens 6ES7416-5HS06-0AB0?
It is a CPU 416-5H PN/DP central processing unit for SIMATIC S7-400H and S7-400F/FH.
2. How much work memory does the CPU have?
It has 16 Mbyte integrated work memory: 6 Mbyte for the program and 10 Mbyte for data. The work memory is not expandable.
3. Which integrated communication interfaces are available?
The CPU has 1 MPI/DP interface, 1 DP interface, 1 PROFINET interface, and 2 interfaces for synchronization modules.
4. How many PROFINET IO Devices can it connect?
It can connect up to 256 IO Devices; in redundant mode, this is via both interfaces.
5. What installation space and dimensions should be verified?
The CPU requires 2 slots and measures 50 mm wide, 290 mm high, and 219 mm deep.
